Detail Fusion Splicer Swift Ilsintech Type KF4 Fiber Optic Splicer

Ilsintech Swift KF4 is very versatile and super accurate active cladding alignment fusion splicer that satisfies every aspect of splicing requirement. With slim, yet rugged and extremely light, budget priced Swift KF4 assures users of convenient and stable process as well as high performance.

Specifications

• Fiber alignment Active V-Groove Alignment
• Applicable type of fibers 0.25mm, 0.9mm, 2.0mm, 3.0mm, Indoor cable
• Fiber count Single fiber
• Applicable fiber dimensions Cladding diameter: 125㎛ / Coating diameter: 150㎛~3mm
• Fiber setting and cleaved length 5mm to 16mm
• Splicing modes Splice mode: 300, Heater mode:100
• Typical Splice Loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
• Return loss > 60dB
• Splicing Time Typical 7sec (Standard SM, SM-SM mode)
• Splice loss estimate Available
• Sleeve heating time Typical 13sec with IS-60 mode, IS-60 sleeve
• Applicable protection sleeve 40mm,60mm and micro sleeves
• Storage of splice result Date : 5,000 Up to, Image: 5,000 Up to
• Tension test 1.96N to 2.25N
• Operating condition Altitude: 5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
• Storage condition Temperature: -40℃~80℃, Humidity: 0~95%

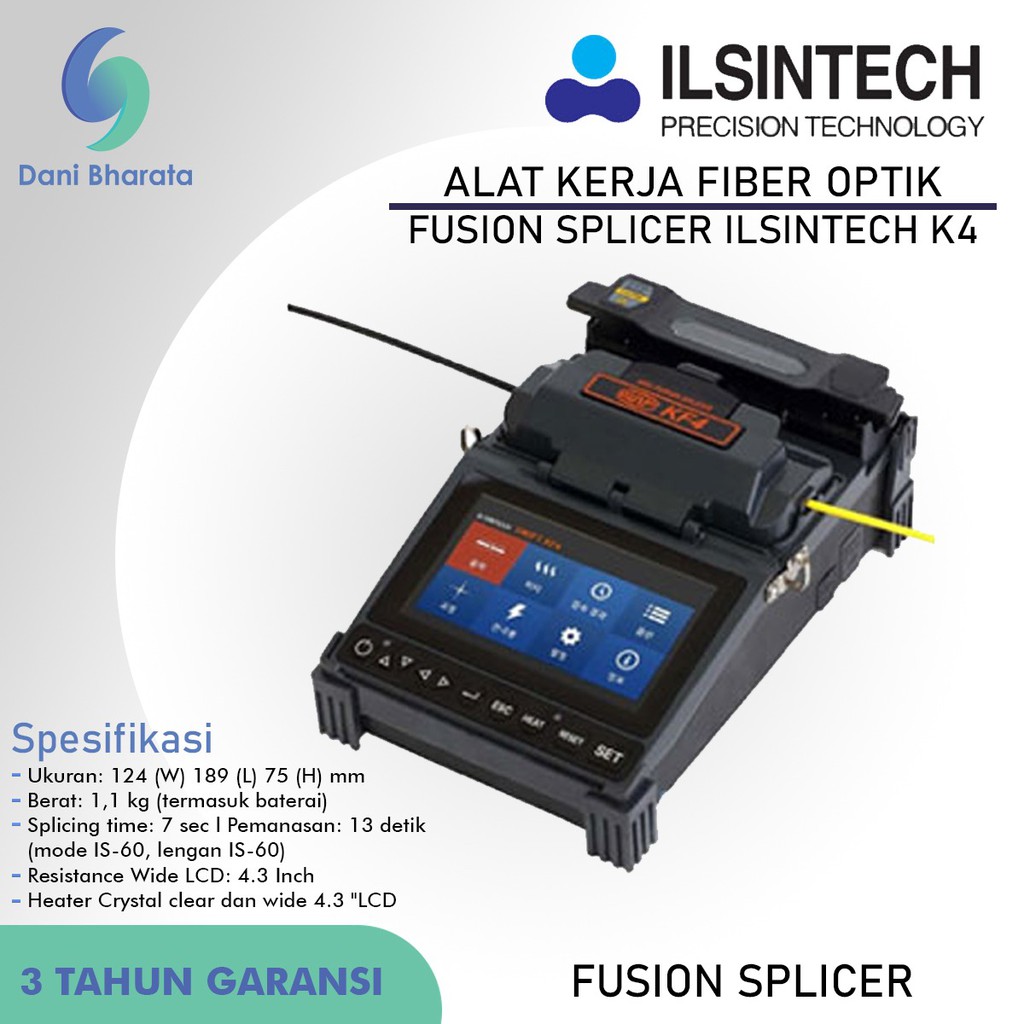

• Dimension 124(W)x189(L)x75(H)mm(Without rubber protector)
• Weight 1.1kg(Including battery)
• Viewing method and display Two CMOS cameras and 4,3-inch color LCD monitor
• Fiber view and magnification X/Y : 130X MAX:260X
• Power supply Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC Charger
• No.of splice cycles with battery Typical 200 cycles

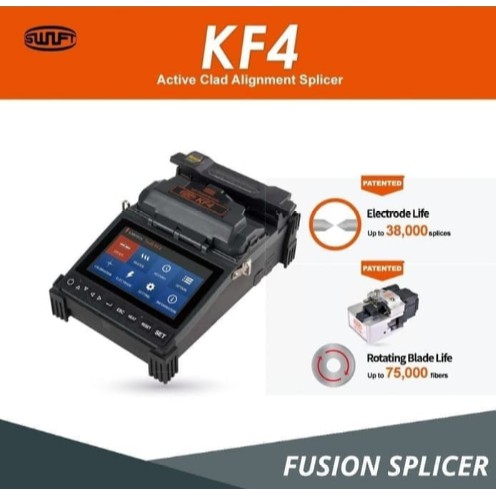

• Electrode life More than 21,000 times
• Terminals USB
