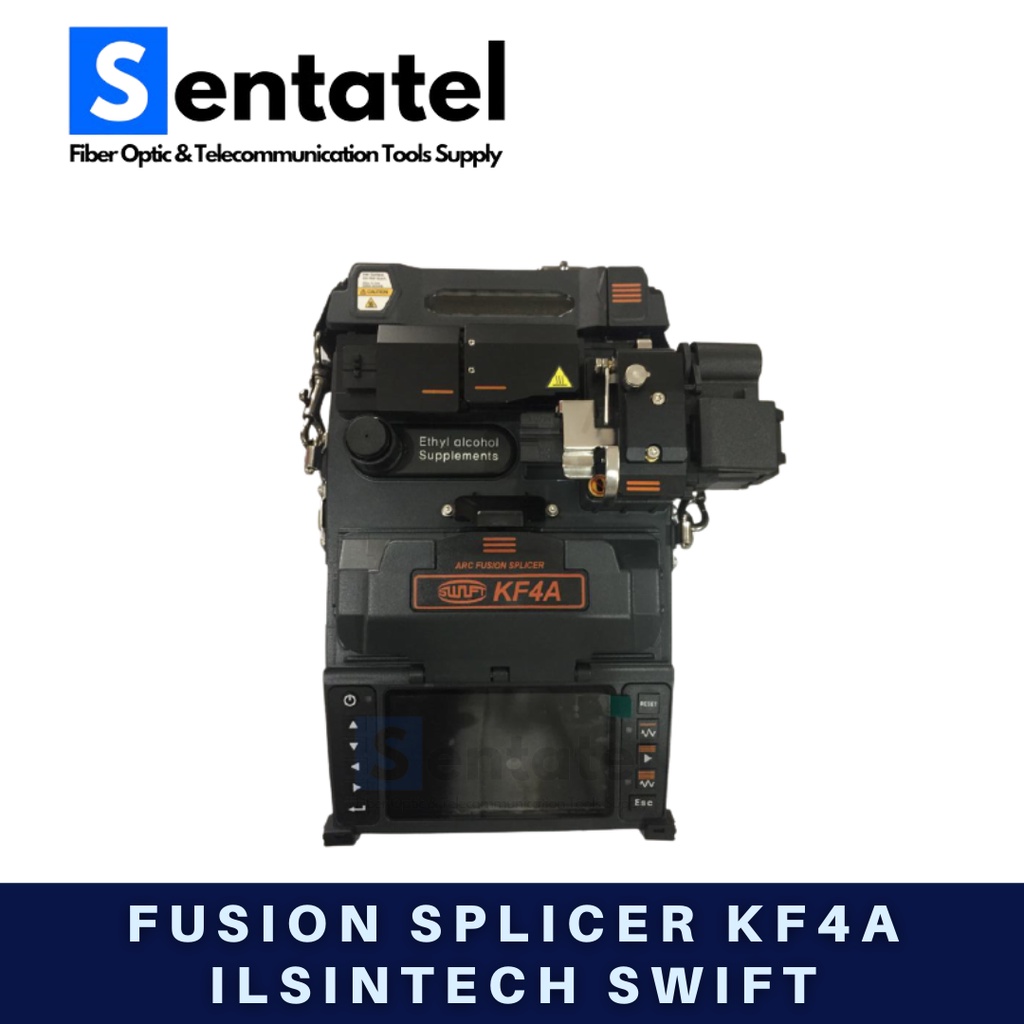

Ilsintech Fusion Splicer Machine KF4A
* Swift KF4A is the highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving.


Category
Description
Fiber alignment
IPAAS Active V-Groove Alignment
Applicable type of fibers
0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable
Fiber count
Single fiber

Applicable fiber dimensions
Cladding diameter : 12, Coating diameter : 15~3mm
Fiber setting and cleaved length
5mm to 16mm
Splicing modes

Splice mode: 300, Heater mode: 100
Typical Splice Loss
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss
> 60dB

Splicing time
Typical 7sec (with SM)
Splice loss estimate
Available
Sleeve heating time
Typical 13sec with IS-60 mode, IS-20 sleeve
Applicable protection sleeve
40mm, 60mm and Micro sleeve
Storage of splice result
The last 5,000 results to be stored in the internal memory.
Tension test
1.96N to 2.25N
Operating condition
Altitude: 0~5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%,
Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
Storage condition
Temperature: -40℃~80℃, Humidity: 0~95%
Dimension
132(W)x212(L)x73(H)mm
Weight
1.5kg(Including battery)
Viewing method and display
2AXIS Two CMOS cameras and 4.3-inch color LCD monitor

Fiber view and magnification
X/Y : 130X, Max : 260X
Power supply
DC Lithium polymer battery(DC 14.8V, 1650mAhx2), 100 ~ 240V AC Adapter
