Fusion Splicer Skycom T208

Detail Fusion Splicer Skycom T208

Skycom Fusion Splicer T208 Optical Fusion Splicer Splicing Machine
SPLICE ON CONNECTOR READY (SOC READY)
Lengkap aksesoris + Cleaver + Stripper + Spare Elektroda

Alat penyambung Fiber Optik / Skycom Fusion Splicer T208 Optical Fusion Splicer

Features:
- 5 inches high Resolution colorful LCD display
- Average splice time:10 second
- Average tube-heat time:30 second
- Lithium battery: up to 180 times of continuous splice and heat
- Simultaneous X and Y views wi th 180 times magnification
- New developed technology providing wind and dust resistance
- Splicing mode:Auto & Manual & Full-Automation
- USB Port
- Storing 6,000 groups of splice results.
- Multipurpose optical fiber fixture(Such as: Rubberinsulated wire, fiber optic patch cord, bare fiber)

Specifications:
MODEL T208
- Applicable Fibers SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series
- Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
- Return Loss 60dB
- Tension Test 2.0N(200gf)(Standard)
- Splicing Program 50 groups
- Protection Sleeve Length 20mm, 40mm, 60mm
- Language Chinese, English
- Environmental Conditions -10 ~ +50 (operation temperature),0 ~95% RH(humidity), 0~5000m(altitude)
- Power Supply AC adaptor: 100 ~ 240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)
- DC adaptor: 12V voltage 8AH
- Dimensions 155(W)*165(D)*150(H)

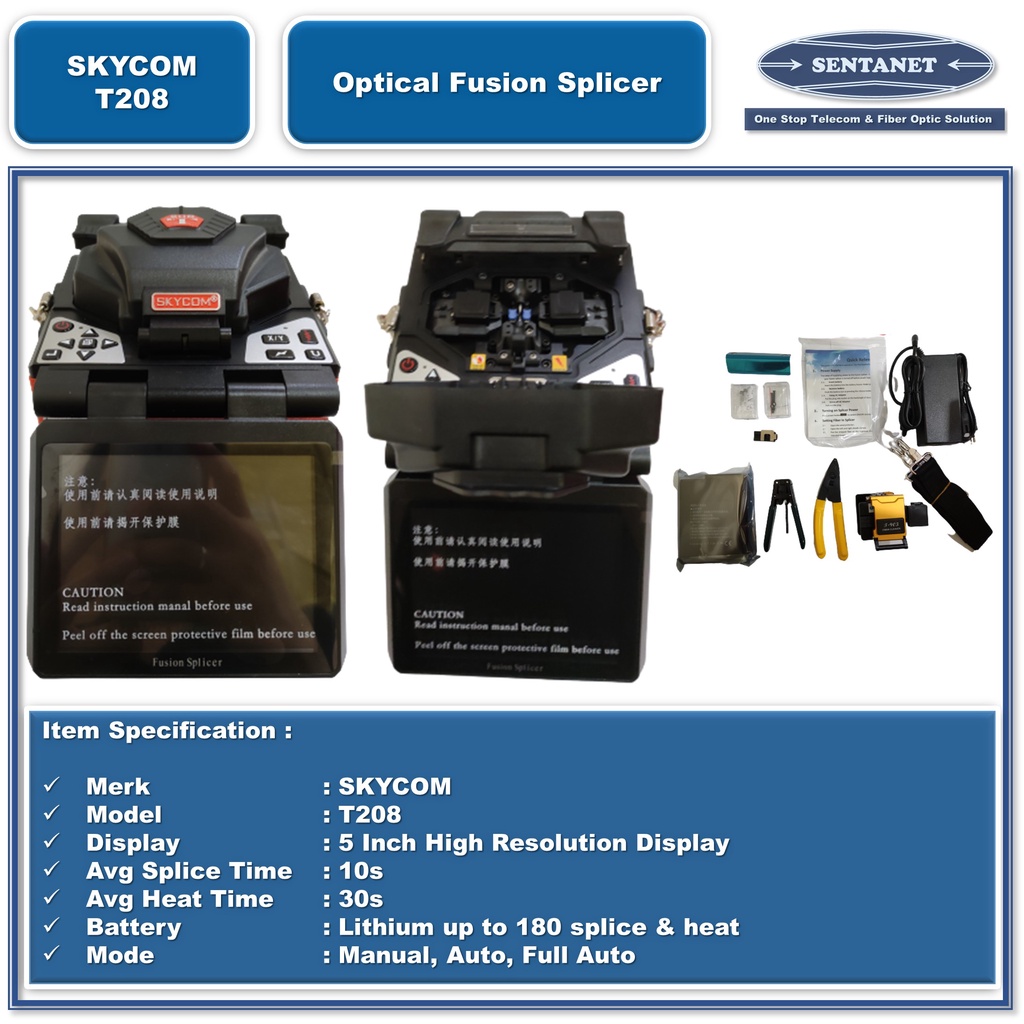

Gambar produk
