Fusion Splicer B&Y-A6S ftth fiber optic fusion splicer machine BY-A6S

Detail Fusion Splicer B&Y-A6S ftth fiber optic fusion splicer machine BY-A6S

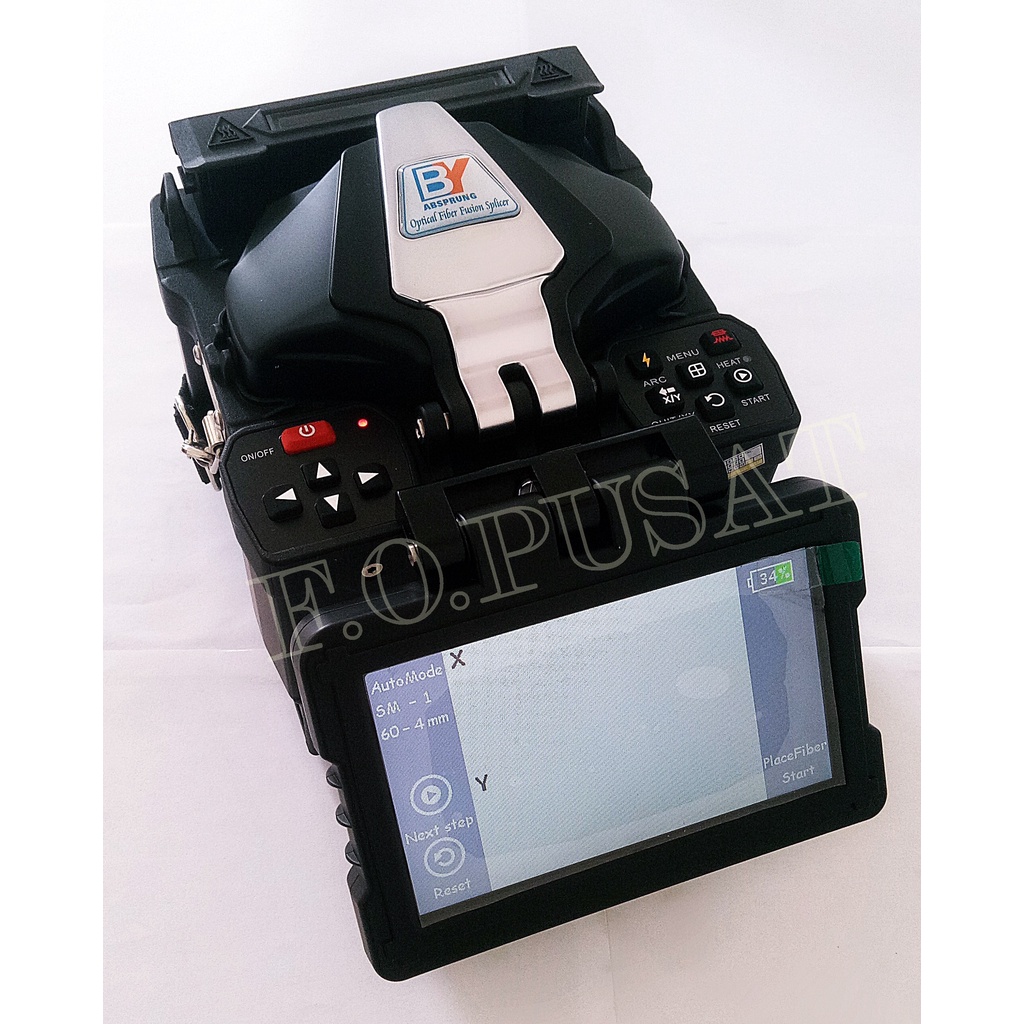

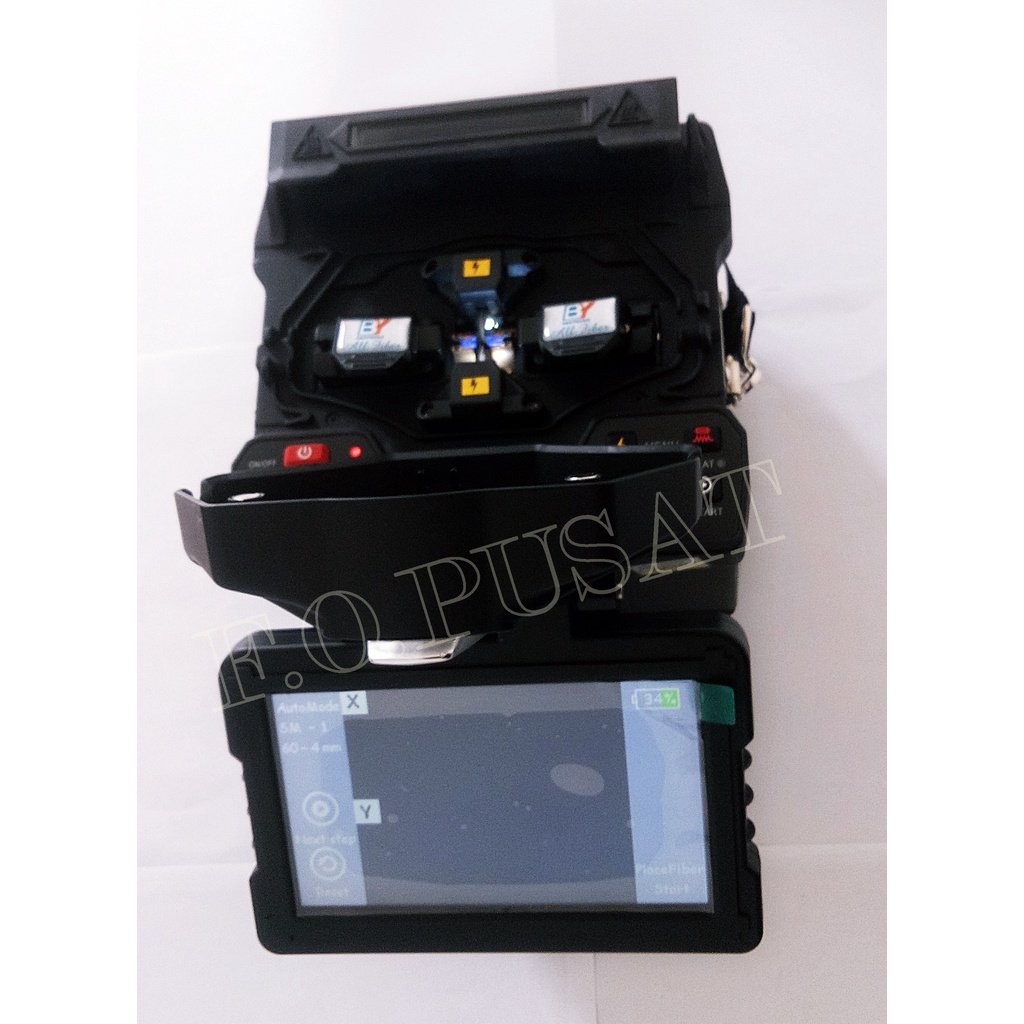

Fusion Splicer B&Y-A6S (4Motors)
Professionelle Fiber Splice Technologie
*Garansi Mesin 1 Tahun

Applicable Fibers : SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable
Average splice loss : 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Fiber cleaved length ：8-22mm
Return loss : ≥ 60dB
Tension test : 2.0N(200GF) (Standard)
Protection sleeve length : 20mm, 40mm, 60mm
Splice Program : 5 groups of preset program, 75 group of manual setting
Environment conditions : 25～＋50℃ (operation temperature), 0～95%RH (humidity)
Alignment : Core Alignment (PAS Technology)
Storage environment : -40～ +80℃ (temperature) , 0～95％RH (humidity)
Power supply AC adaptor : 85～260V input voltage
Internal Battery : 12V, 6Ah, up to 120 times of continuous splice and heat

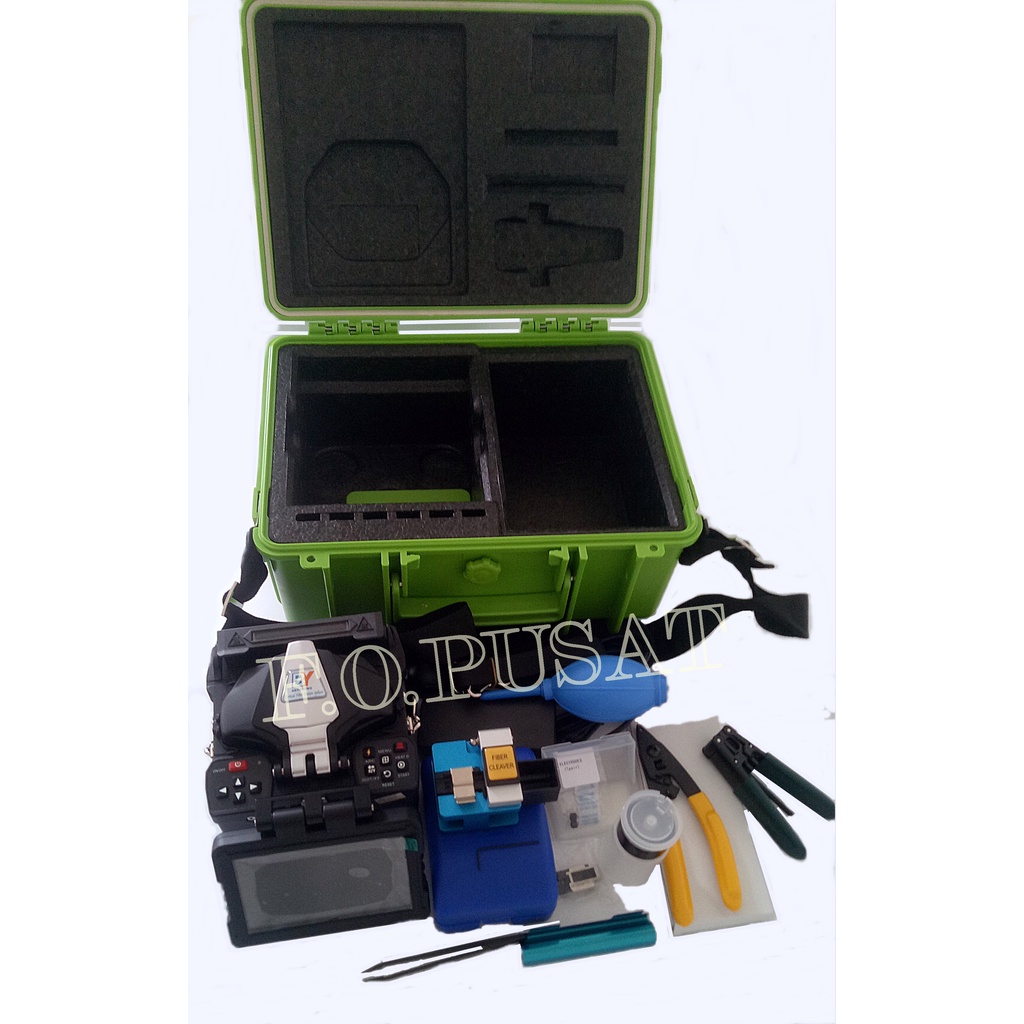

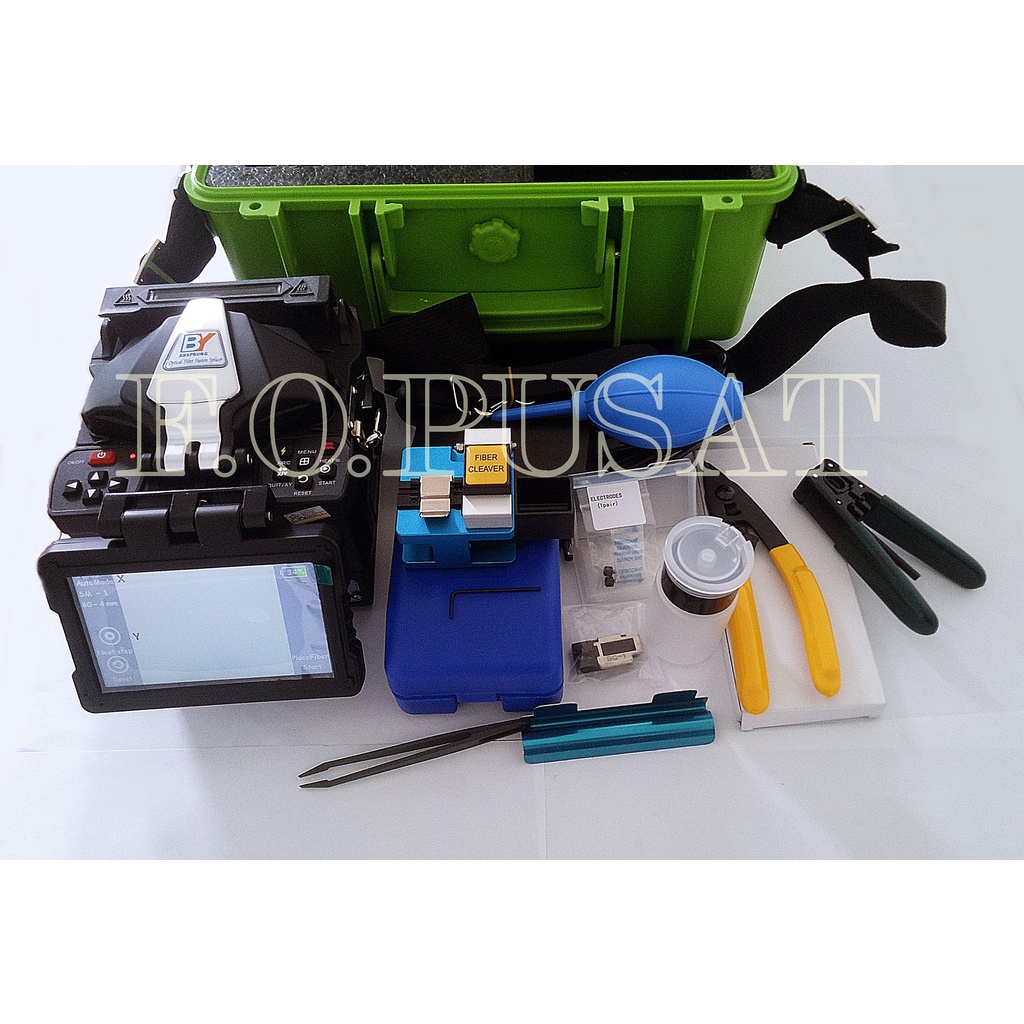

Kelengkapan Fusion Splicer B&Y-A6S
Optical Fiber Fusion Splicer : 1 unit
Power Adapter : 1 unit
AC Power Line : 1 unit
Electrodes : 1 unit
Cooler : 1 unit
Stripper : 1 unit
Miller Clamp : 1 unit
Specificatuin : 1 unit
Optical Fiber Holders : 1 set
Fiber Cleaver : 1 unit
Carrying Bag : 1 unit
Configuration Checklist Table : 1 Piece
Rubber Head Tweezers : 1 unit
Alcohol Bottle : 1 Piece
Blowing Dust Ball with Brush : 1 Piece

Gambar produk
