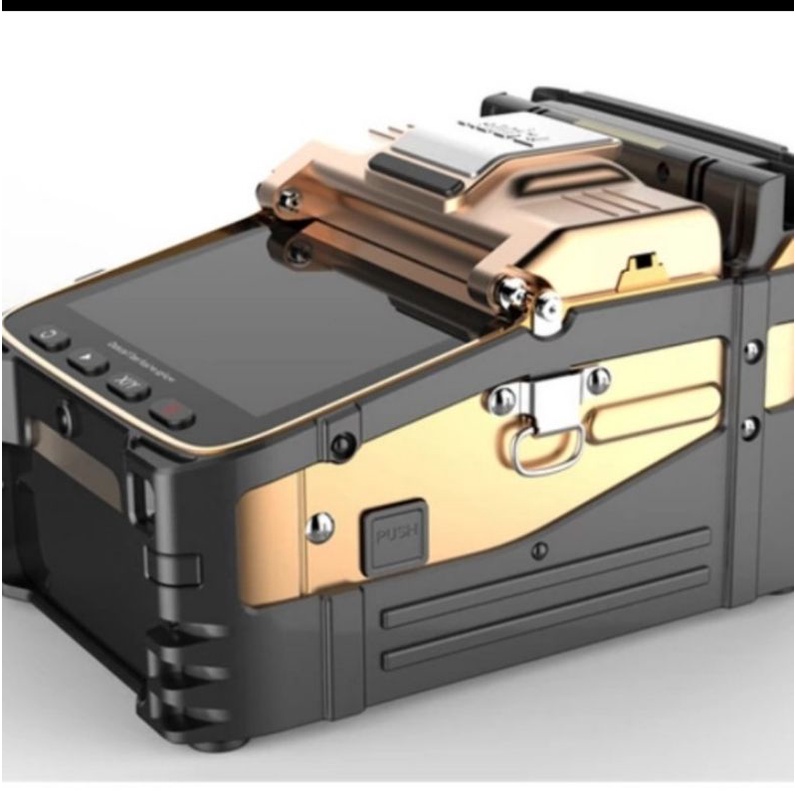

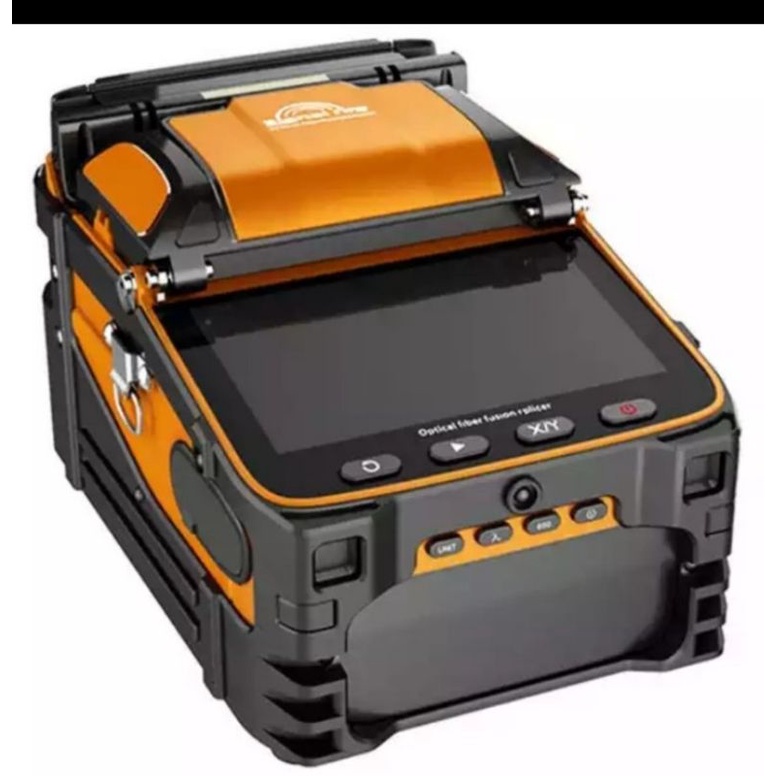

Fusion splicer Ai9 signal fire

Detail Fusion splicer Ai9 signal fire

TERSEDIA VARIAN

1. SPLICER Ai9
#PAKET LENGKAP

2.SPLICER Ai9
# TIDAK TERMASUK CADANGAN ELEKTRODA

3. SPLICER Ai8C
#PAKET LENGKAP


MANUFACTUR : SIGNAL FIRE ORIGINAL

Specifications.
Fiber alignment
Core/cladding alignment/ Manual alignment

Splicing time : 5S
Heating time :15S
Heating mode
Automatic heating(Preheating)
Focus mode

Six motorsAuto focus

Applicable Fibers
SM(G.652&G.657), MM(G.651) DS(G.657),NZDS(G.655)

Build in
Optical Power Meter / VFL

Splice Loss
0.025dB(SM),0.01dB(MM) ,0.04dB(DS/NZDS)

Control technology

Real-time control and calibration of fusion ARC

Return loss Better than 60DB

Fiber diameter
Cladding Diameter:80-150μm

Coating Diameter:100-1000μm
Fiber Cleave Length

Coating less than 250µm:8-16mm
Coating less than 250-1000µm:16mm

Software updates Length
Automatically update, Update by a key

Boot Time 1snd

Fiber holders
3 in 1 fiber holder, SM, MM, bare fiber, pigtail,

rubber-insulated, multi fiber cable
Magnification

300 for X or Y view, 150 for X or Y view

Screen 5 inch TFT color display

Splicing Mode
Fully automatic,Step by step splicing

Splicing record storage

Synchronize to the phone, the server to cloud storage unlimited

Built-in battery
7800 mA high-capacity lithium battery, charging time

Power supply
Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery

Operating Conditions
Temperature -15 ~ +50 , humidity:
Working altitude: 0 ~ 5000m. Resist max. wind speed: < 15m / s

Shrinkable tube
60mm,50mm,40mm,25mm

Product
Waterproof, dust proof, shock-resistant

GARANSI SERVICE DARI TOKO SELAMA 1 ( satu ) BULAN . SELANJUTNYA AKAN DI BANTU GARANS PRODUSENI CHINA DAN BIAYA BIAYA YG TIMBUL DI TANGGUNG OLEH PEMBELI.
==============================

!!! KHUSUS PEMBELIAN OFFLINE KAMI BERI HARGA TERMURAH !!!
SEGERA HUBUNGI ADMIN KAMI

Gambar produk
