Fusion Splicer 13MMT S1+ / Splicer 13MMT S1+

Detail Fusion Splicer 13MMT S1+ / Splicer 13MMT S1+

Splicer Tumtec 13M MT / Fusion splicer tumtec 13M MT Tumtec 13M Fiber Optik

Deskripsi Splicer Tumtec 13M MT / Fusion splicer tumtec 13MMT Tumtec 13M

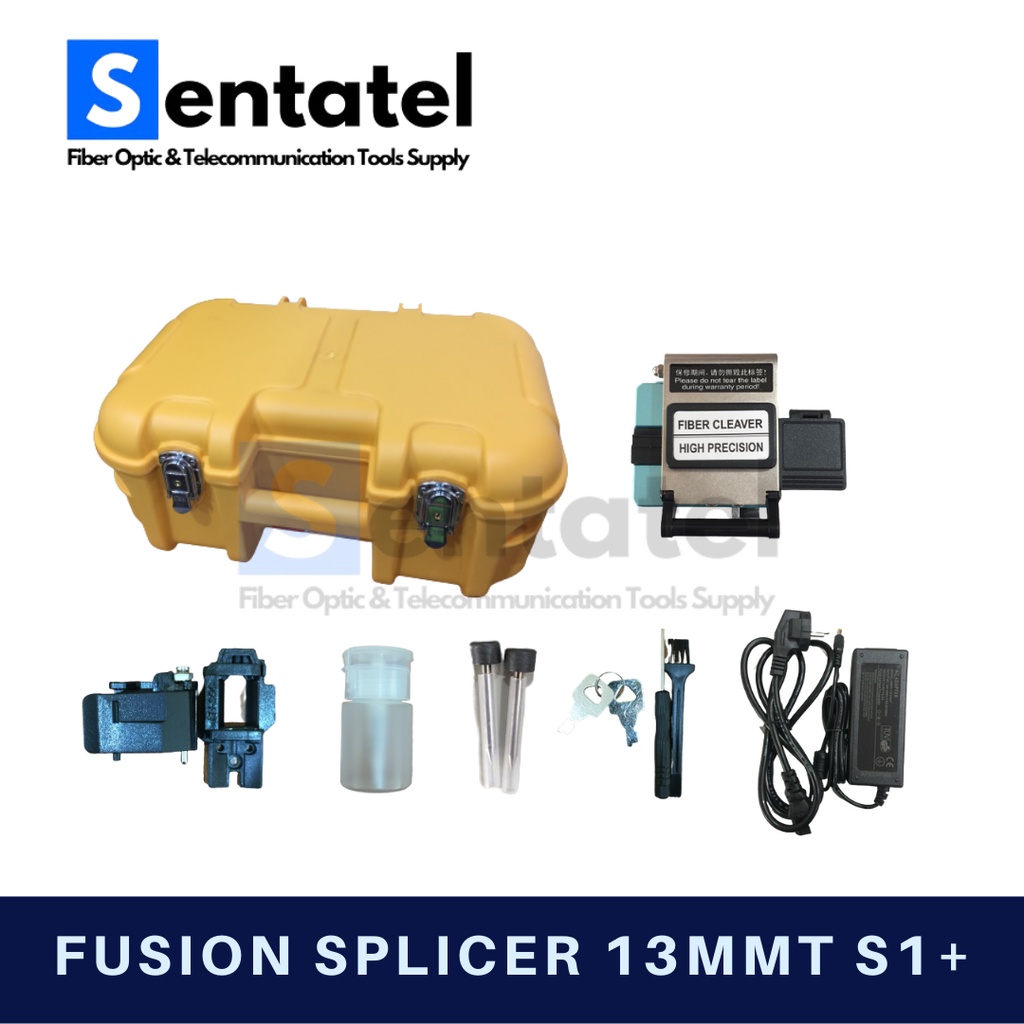

Kelengkapan
Charger
Batere 5200mAh
Striper
Cleaver
Tang dropcore
Soc holder
Elektroda
Botol alkohol
Box



Specification for Fusion Splicer Tumtec 13MT 13MMT
Model 13MMT
Number of Fiber Single
Appicable Fibers SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible Fiber/Cable 0.25-3.0mm/Indoor Cable
Cleaved Length Coating Diameter: 0.125-1mm/Cleave length:5-16mm
Splicing Mode Multiple Splicing Modes
Typical Splice Loss 0.01-0.05db
Return Loss 60db
Lighting 3 powerful white LED and illuminated keypads
Splicing Time 6-8 seconds
Estimated Splice Loss Available
Protection Sleeve Length 20-60mm
Heating Mode Multi Heating Modes
Heating Time Typical Heating Time: 15s
Results Storage 2000 records
Tension Test 1.5-2.0N
Operating Condition Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50 max wind 15m/s
Storage Condition 0~95% relative humidity, -40~80
Display 90bi-directional view,4.3 color high resolution display with touch screen
Fiber View & Magnification X,Y,XY,X/Y:380Magnification
Power Supply AC Input 100-240V,DC Input 12-15V
No. of Splice/Heating with Battery 4800mAh battery capacity, typical above 200 times(splice+heat)
Operating Methods Button/Touch Screen
Automatic Calibration Automatic ARC calibration by air pressure and temperature
Electrode Life 3500 ARCS, can be extended by using an electrode grinder
Terminal USD 2.0/Phone Jack 140W*165L*160Hmm (including rubber Bumper)
Dimension
140W*165L*148Hmm (including rubber Bumper)
130W*165L*138Hmm (excluding rubber Bumper)

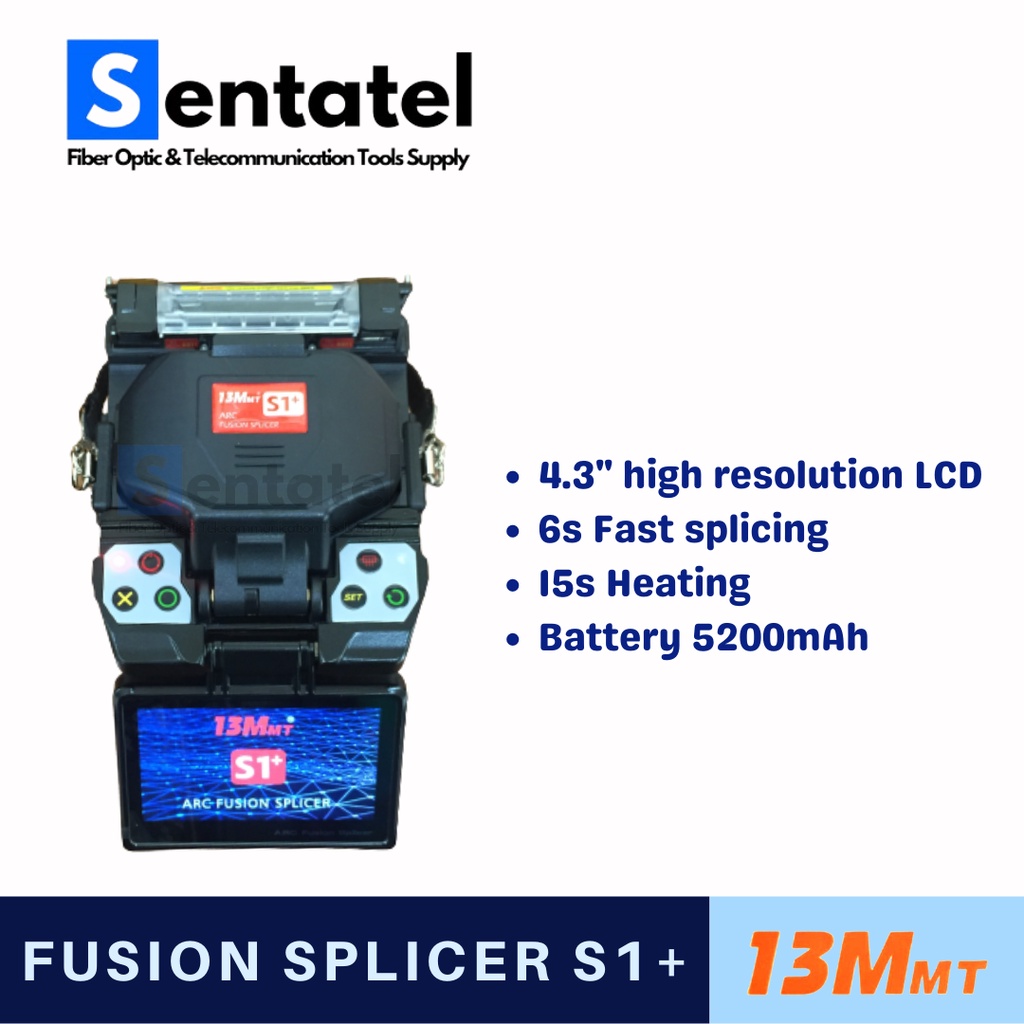

Gambar produk
