Fusion Splicer 13MMT S1+ / Fusion Splicer 13MMT S1

Detail Fusion Splicer 13MMT S1+ / Fusion Splicer 13MMT S1

Splicer 13MMT S1 13MT S1 / Fusion splicer 13MMT

Spesifikasi :

- Number of Fiber : Single
- Applicable Fibers : SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
- Compatible Fiber/Cable : 0.25-3.0mm/Indoor Cable
- Splicing Mode : Multiple Splicing Modes
- Typical Splice Loss : 0.01-0.05db
- Return Loss : 60db
- Lighting : 3 powerful white LED and illuminated keypads
- Splicing Time : 6-8 seconds
- Protection Sleeve Length : 20-60mm
- Heating Mode : Multi Heating Modes
- Typical Heating Time: 15s
- Results Storage : 2000 records
- Tension Test : 1.5-2.0N
- Operating Condition : Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50 max wind 15m/s
- Storage Condition : 0~95% relative humidity, -40~80
- Display : 90bi-directional view,4.3 color high resolution display with touch screen
- Fiber View & Magnification : X,Y,XY,X/Y:380Magnification
- Power Supply : AC Input 100-240V,DC Input 12-15V
- No. of Splice/Heating with Battery : 4800mAh battery capacity, typical above 200 times(splice+heat)
- Operating Methods : Button/Touch Screen
- Automatic Calibration : Automatic ARC calibration by air pressure and temperature
- Electrode Life : 3500 ARCS, can be extended by using an electrode grinder
- Terminal : USD 2.0/Phone Jack 140W*165L*160Hmm (including rubber Bumper)
- Dimension : 140W*165L*148Hmm (including rubber Bumper) ,130W*165L*138Hmm (excluding rubber Bumper)

Kelengkapan :

- Charger
- Batere 5200mAh
- Striper
- Cleaver
- Tang dropcore
- Soc holder
- Elektroda
- Botol alkohol
- Box

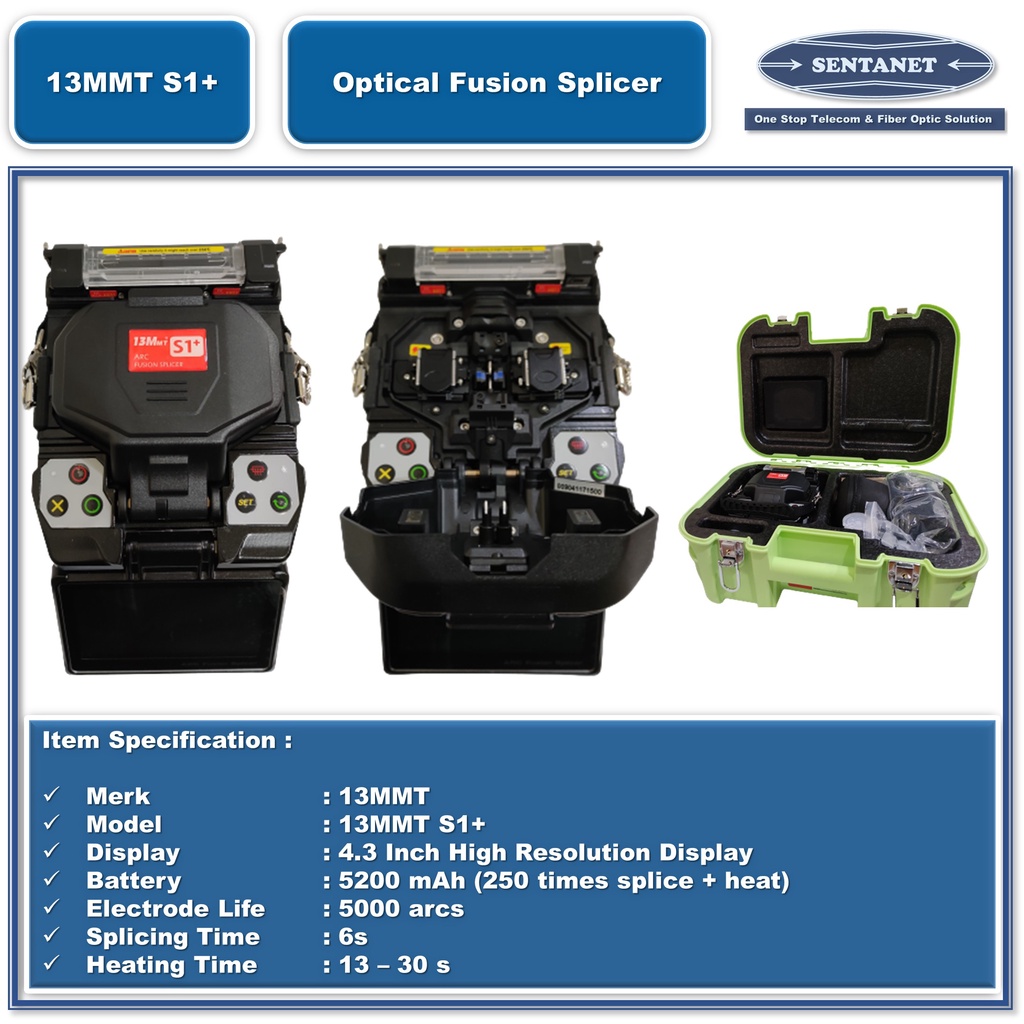

Gambar produk
