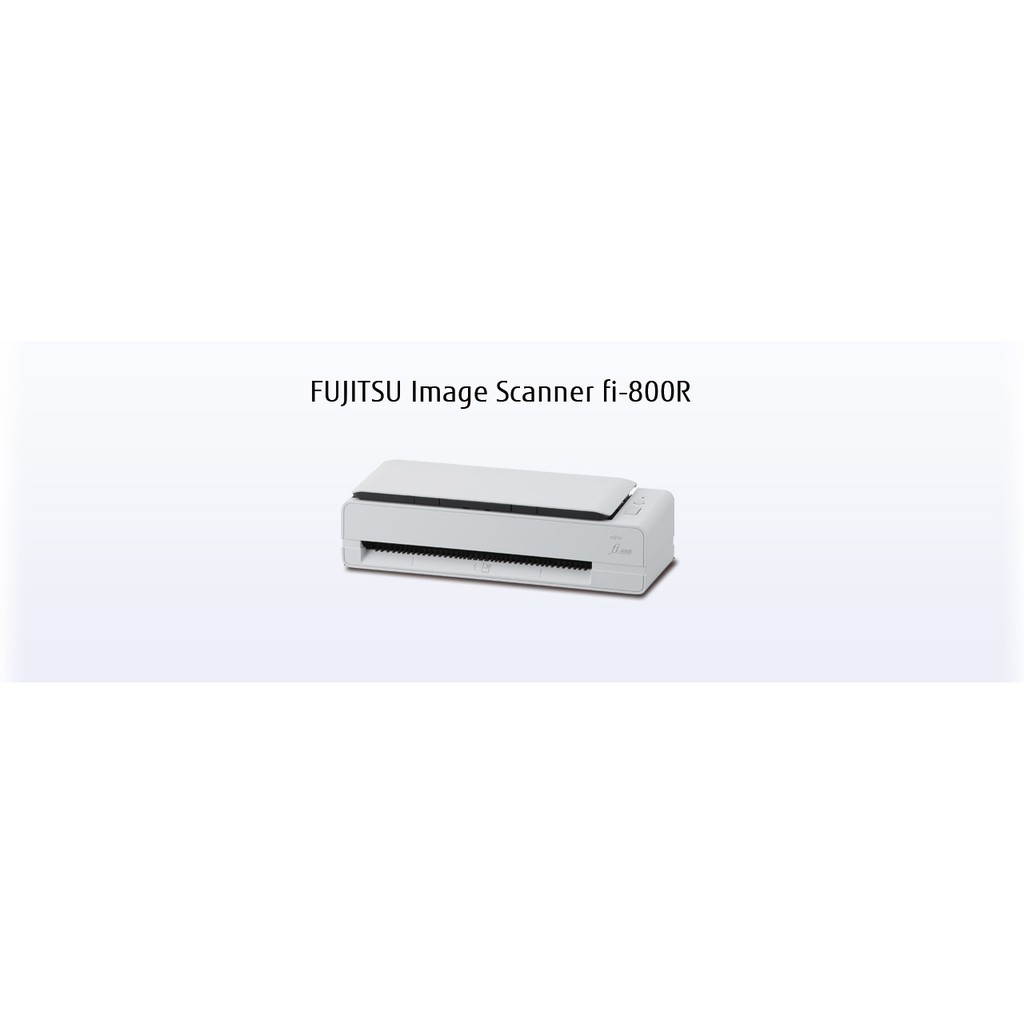

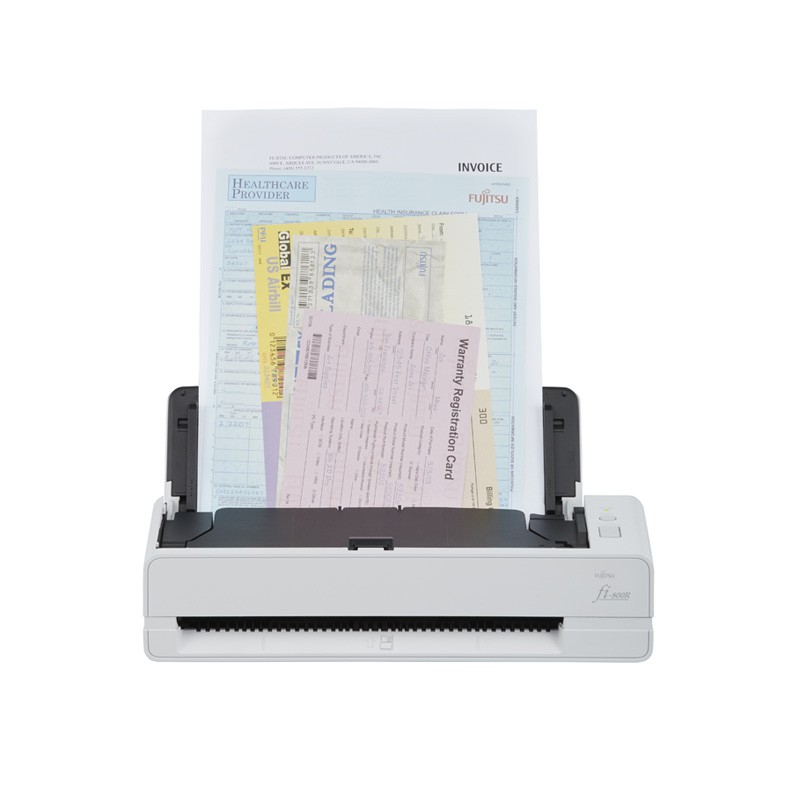

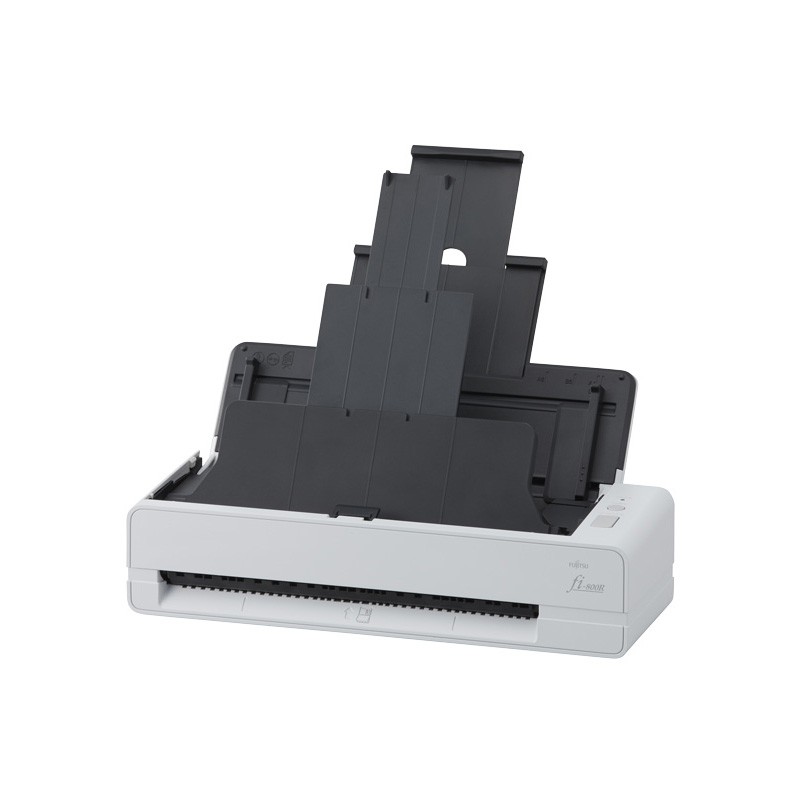

FUJITSU Fi-800r / Fi800r Image Scanner [GS]

Detail FUJITSU Fi-800r / Fi800r Image Scanner [GS]

SPECIFICATION :
Product Name fi-800R
Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed (1) (A4 Portrait)
(Color (2)/Grayscale (2)/Monochrome (3)) ADF Simplex: 40 ppm (200/300 dpi)
Duplex: 80 ipm (200/300 dpi)
Manual Feed 3.5 seconds (200/300 dpi)
Image Sensor Type CIS x 2 (front x 1, back x 1)
Light Source RGB LED (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution (4)
(Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) (5)
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White
Document Size Maximum 215.9 x 355.6 mm (8.5 x 14 in.)
Minimum 50.8 x 50.8 mm (2 x 2 in.)
Long Page Scanning (6) 5,588 mm (220 in.)
Paper Weight (Thickness) ADF Paper: 40 to 127 g/m² (11 to 34 lb)
For A6 or smaller: 40 to 209 g/m² (11 to 56 lb)
For A8 or smaller: 127 to 209 g/m² (34 to 56 lb)
Manual Feed Paper: 20 to 413 g/m² (5.4 to 110 lb)
Plastic card: 1.4mm or less
Booklet: 5mm or less
ADF Capacity (7) 20 sheets (A4 80 g/m² or Letter 20 lb)
30 sheets (A4 52 g/m² or Letter 14 lb)
Expected Daily Volume (8) 4,500 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor)
Interface USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode 19 W or less
Sleep Mode 1.7 W or less
Auto Standby (Off) Mode 0.15 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions (9) (W x D x H) 296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.)
Weight 2.0 kg (4.4 lb)
Supported Operating System Windows® 10 (10), Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008 (11), macOS, Linux (Ubuntu)
Included Software / Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver (12), Image Scanner Driver for macOS (ICA) (12)(13), Image Scanner Driver for Linux (SANE) (12)(13), PaperStream Capture, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™ (13), Scanner Central Admin
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal
Included Items AC cable, AC adapter, USB cable, Setup DVD-ROM
