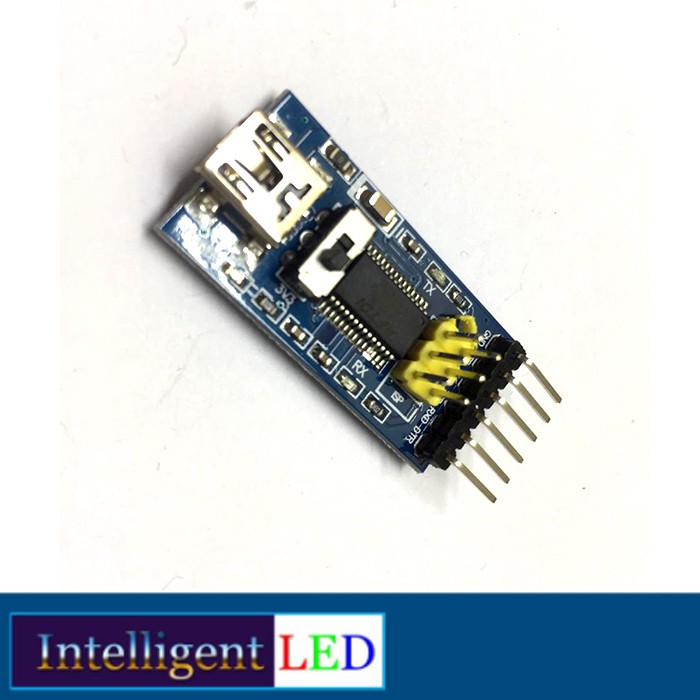

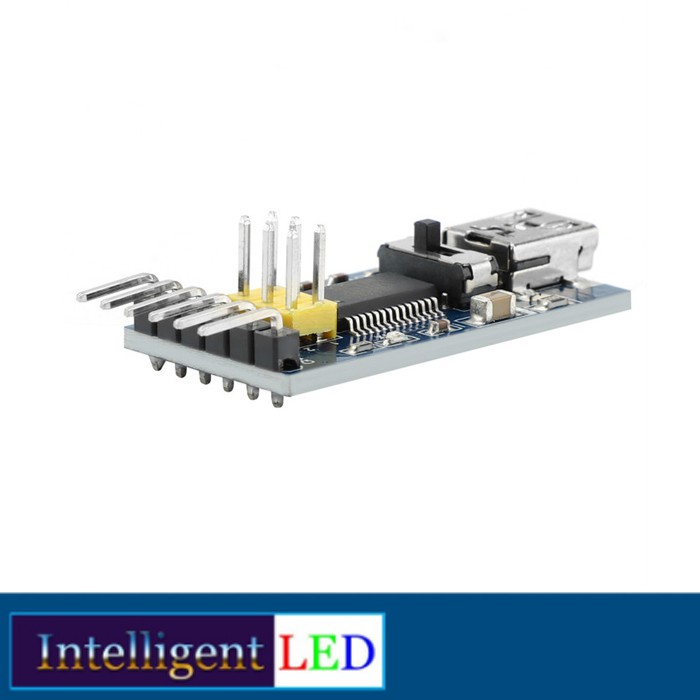

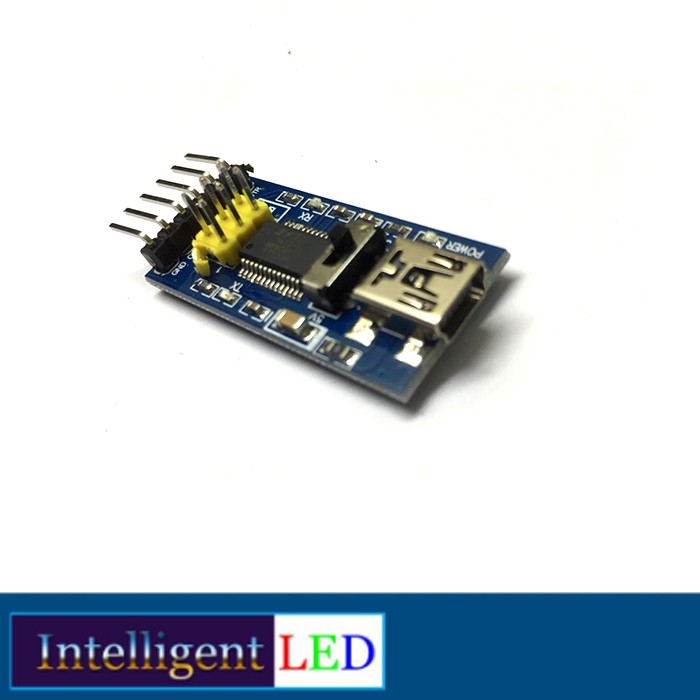

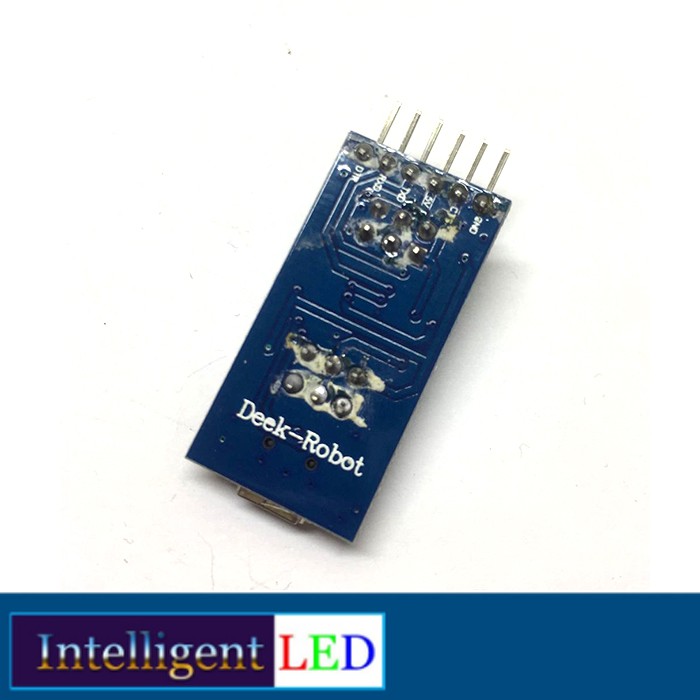

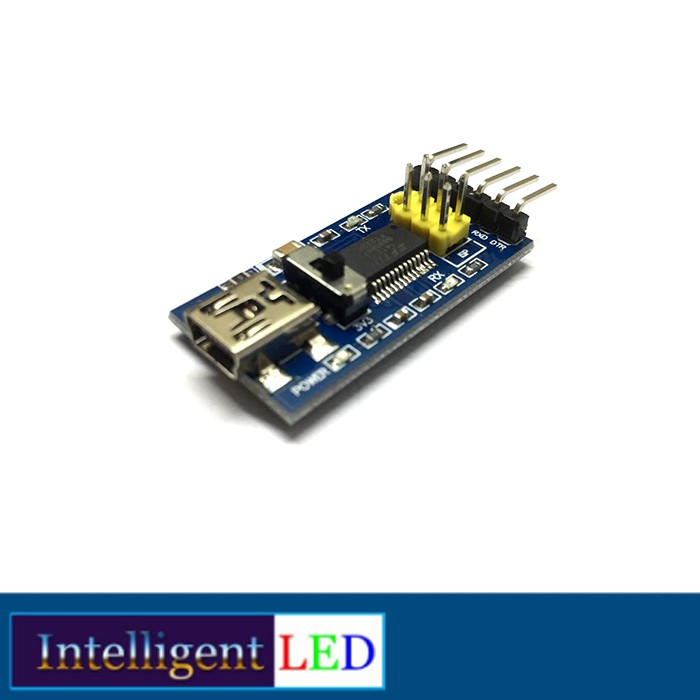

Detail FTDI FT232RL USB to TTL Serial Adapter 3.3V/5V Switch Selectable Logic Levels
FTDI FT232RL USB to TTL Serial Adapter 3.3V/5V Switch Selectable Logic LevelsDESCRIPTION
Standard interface, compatible with all kinds of official controller.
With a power supply, send, receive light, working condition be clear at a glance.
With 3.3V and 5V power supply options.
Can be done using ordinary USB to TTL serial port module, download on STC microcontroller.
SPECIFICATIONS
Chip: FT232RL
Power Supply: 3.3V, 5V
Pin definition: DTR,RXD,TX,VCC,CTS,GND
Pitch:2.54mm
Interface: Mini USB
Color:Blue
Size: 4.4 x 1.7 x 1.3cm (LxWxH)
Weight: 10g
PACKAGE INCLUDES
1 x FT232 Downloader FTDI 5.5V/3.3V USB to TTL Serial Adapter Module
