FS80NK premium E18 range sensor jarak adjustable max 80cm detection object for sumo robot avoider

Detail FS80NK premium E18 range sensor jarak adjustable max 80cm detection object for sumo robot avoider

Wiring method: brown positive, blue negative, black signal output

[Product description] This is a photoelectric sensor that integrates transmitting and receiving. The detection distance can be adjusted as required. The sensor has the characteristics of long detection distance, little interference from visible light, low price, easy assembly, and convenient use. It can be widely used in robots to avoid obstacles, assembly line counting and many other automated products.

Applications:

1 , Automatic counting equipment for production line
2. Multi-function reminder
3. Walking the maze robot

Diffuse reflection sensor (photoelectric switch) NPN normally open

Input voltage: 5VDC

Load current: 100mA

Induction distance: 80CM adjustable

Size: 30 * 20 * 10MM

Lead length: 45CM

Technical parameters of the photoelectric switch FS80NK:
1. Output current DC / SCR / relay Control output: 100mA / 5V power supply
2.Current consumption DC <25mA
3. Response time <2ms
4.Effective distance 80CM adjustable
5. Detection object: transparent or opaque body
6. Working environment temperature: -25 ℃ ~ + 55 ℃
7, standard detection objects: sunlight below 10000LX incandescent lamp below 3000LX
8. Housing material: plastic

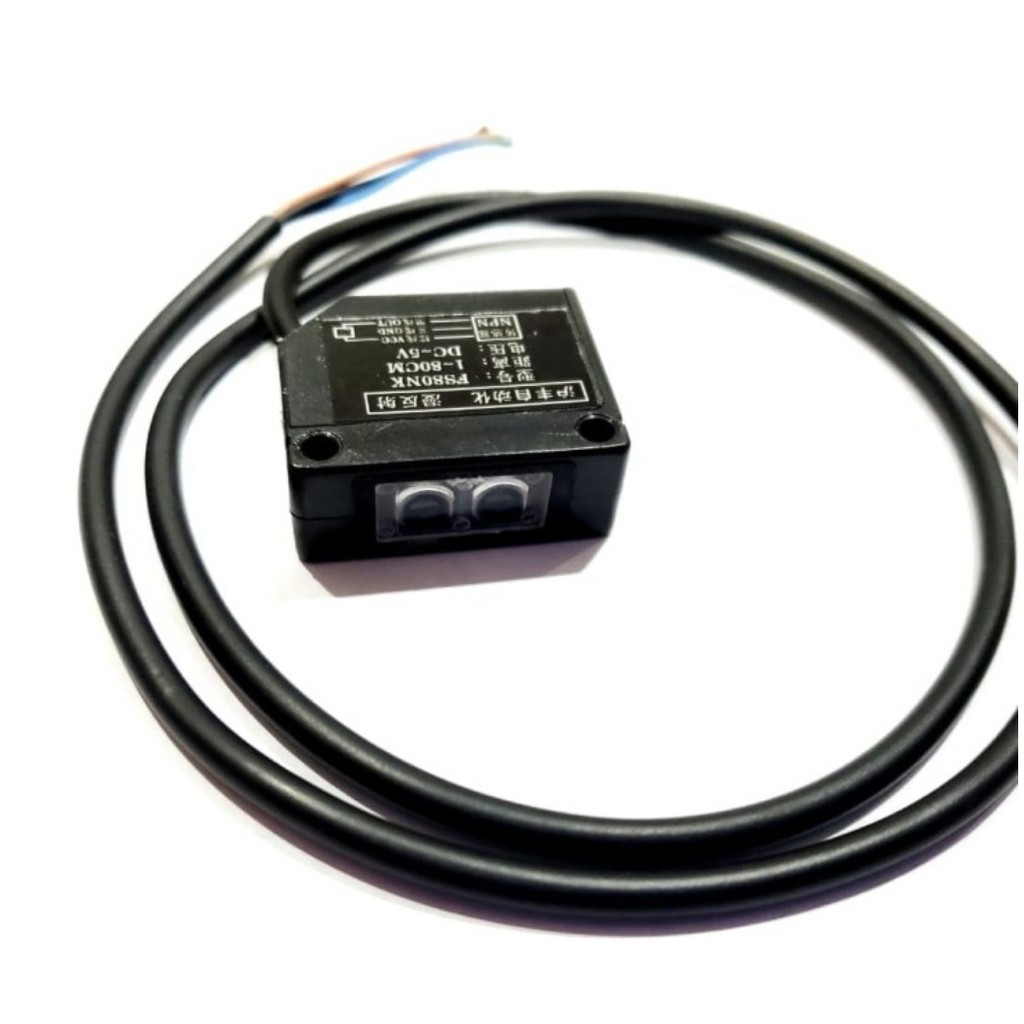

Gambar produk
