Detail FR207 Diode Fast Recovery Rectifier Dioda DO-15

FEATURES
Low cost construction
Fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:260 Celsius /10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension

MECHANICAL DATA
Case: transfer molded plastic
Epoxy: UL94V - 0 rate flame retardant
Polarity: Color band denotes cathode end
Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
Mounting position: Any
Weight: 0.014 ounce, 0.39grams

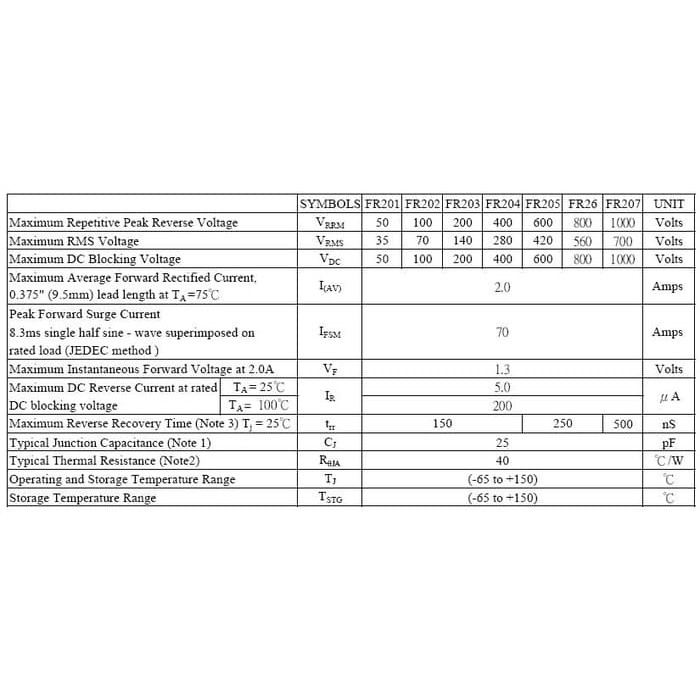

SPEC:
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:2.0Amps
Peak Forward Surge current: 70A / 8.3ms
Package: DO-15
TOtal Capacitance: 40pF
