Detail FR207 2A 1000V MIC Dioda Diode Fast Recovery Rectifier DO-15
FR207 2A 1000V MIC Dioda Diode Fast Recovery Rectifier DO-15*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***
FEATURES :
- Low cost construction.
- Fast switching for high efficiency.
- Low reverse leakage
- High forward surge current capability.
-High temperature soldering guaranteed: 260/10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension.
MECHANICAL DATA :
- Case: transfer molded plastic
- Epoxy: UL94V - 0 rate flame retardant.
- Polarity: Color band denotes cathode end.
- Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
- Mounting position: Any
- Weight: 0.014 ounce, 0.39grams
SPECIFICATION :
Maximum Repetitive Peak Reverse Voltage: 1000v
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:2.0Amps
Peak Forward Surge current: 70A
Maximum Instantaneous Forward Voltage at 2.0A :1.3v
Maximum Reverse Recovery Time (Note 3) Tj = 25 :500nS
Typical Junction Capacitance :25pF
Typical Thermal Resistance : 40
Package: DO-15
Untuk info seputar hal teknis dan lainnya, Hubungi kami

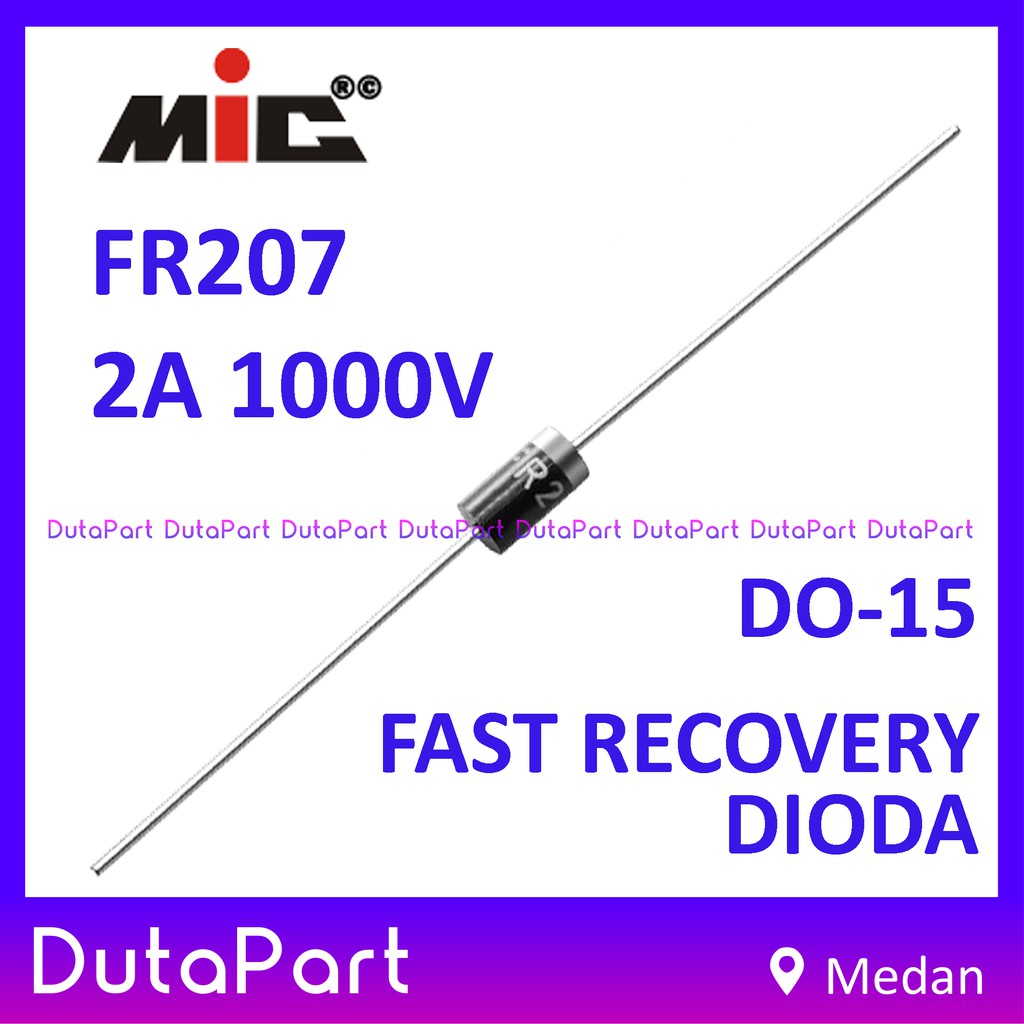

Gambar produk
