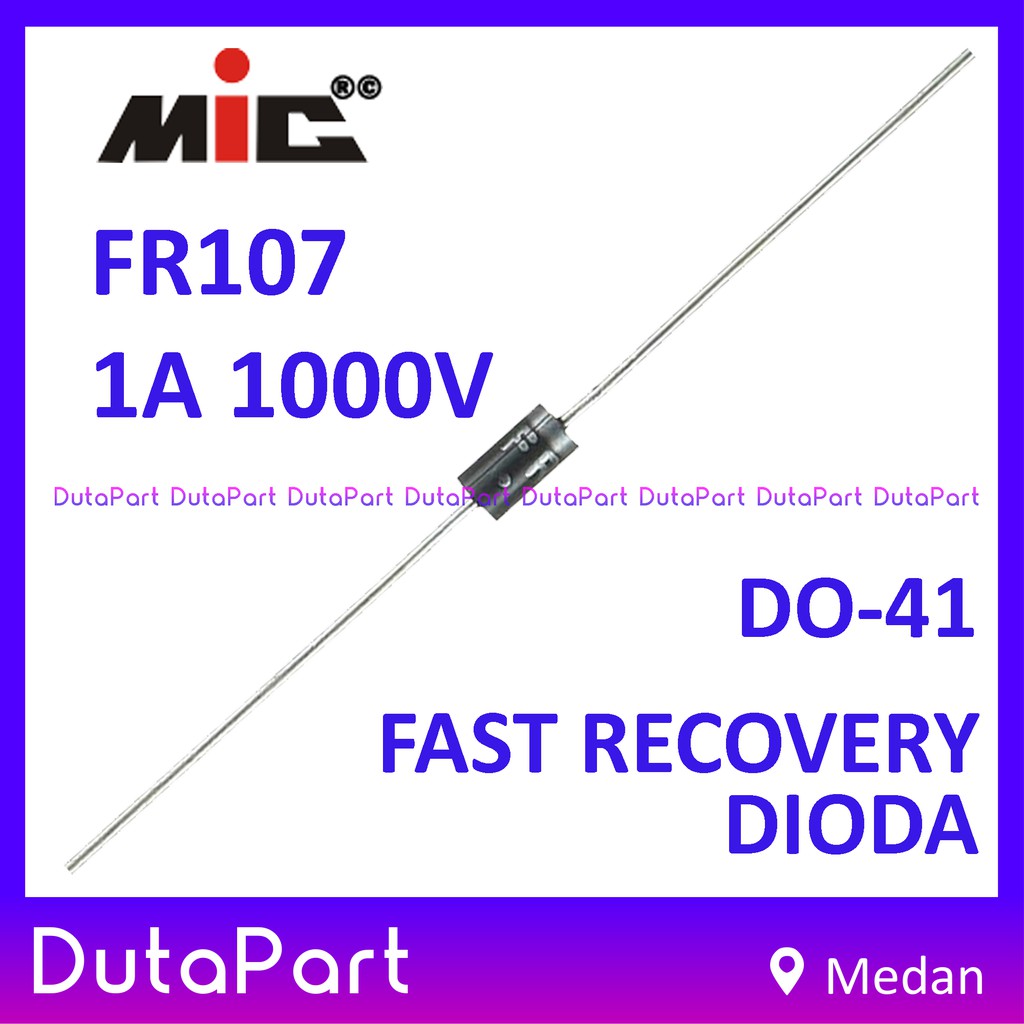

FR107 FR 107 1A 1000V MIC Dioda Diode Fast Recovery Rectifier DO-41
Deskripsi singkat
Elektronik > Elektronik Lainnya > FR107 FR 107 1A 1000V MIC Dioda Diode Fast Recovery Rectifier DO-41
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail FR107 FR 107 1A 1000V MIC Dioda Diode Fast Recovery Rectifier DO-41
FR107 1A 1000V MIC Dioda Diode Fast Recovery Rectifier DO-41*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***
FEATURES :
- Low cost construction.
- Fast switching for high efficiency.
- Low reverse leakage
- High forward surge current capability.
-High temperature soldering guaranteed: 260/10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension.
MECHANICAL DATA :
- Case: transfer molded plastic
- Epoxy: UL94V - 0 rate flame retardant.
- Polarity: Color band denotes cathode end.
- Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
- Mounting position: Any
- Weight: 0.012 ounce, 0.33grams
SPECIFICATION :
Maximum Repetitive Peak Reverse Voltage: 1000v
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:1.0Amps
Peak Forward Surge current: 30A
Maximum Instantaneous Forward Voltage at 1.0A :1.3v
Maximum Reverse Recovery Time (Note 3) Tj = 25 :500nS
Typical Junction Capacitance :15pF
Typical Thermal Resistance : 50
Package: DO-41
