Detail FPM10A FINGERPRINT SENSOR SIDIK JARI COMPATIBLE ARDUINO

Hai kawan kawan zunixe apa kabar hari ini? semangat terus dan selamat beraktifitas.
ayo temukan tawaran special dari kami.

Fingerprint module untuk project arduino anda, cocok untuk security dengan identifier sidik jari.

Spesifikasi :
Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying
Supply Current: Current: Peak current: Fingerprint image time: Window size: 14 ╳ 18 mm
Matching mode: Match mode (1:1)
Search mode (1: N)
Signature File: 256 bytes
Template files: 512 bytes
Storage capacity: max 300
Safety level: five (from low to high: 1,2,3,4,5)
False Accept Rate (FAR): False Reject Rate (FRR): Search time: PC Interface: UART (TTL logic level) or USB2.0 / USB1.1
Communication baud rate (UART): (9600 ╳ N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)
Working environment:
Temperature: -20 ° - +50 °
Relative Humidity: 40% RH-85% RH (non-condensing)
Storage environment:
Temperature: -40 ° - +85 °

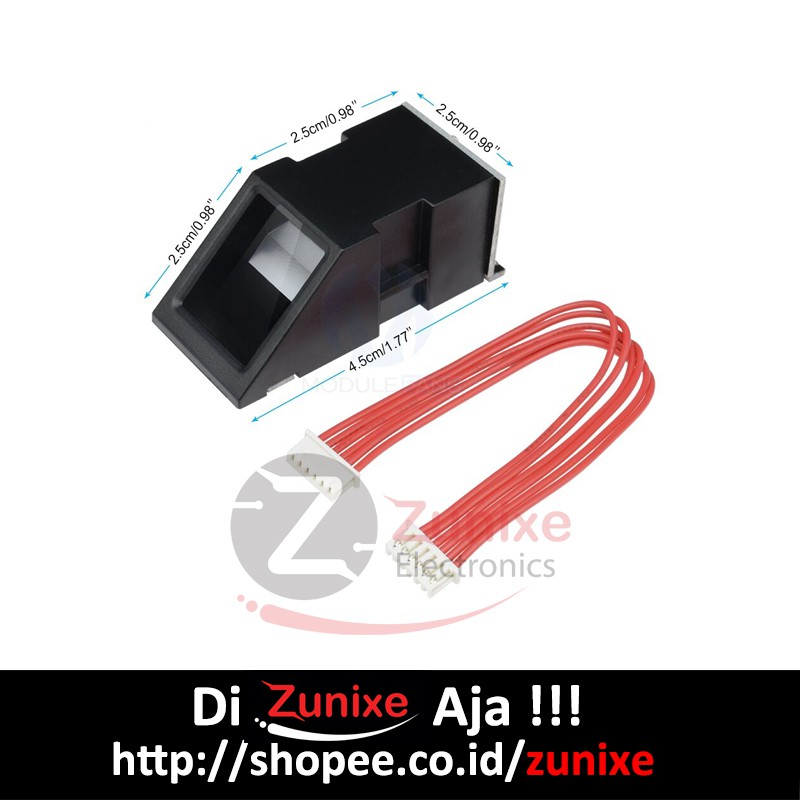

Relative humidity: Dimensions (L ╳ W ╳ H):
Split: Fingerprint sensor: 56 ╳ 20 ╳ 21.5mm
-One: 56 ╳ 20 ╳ 21.5mm

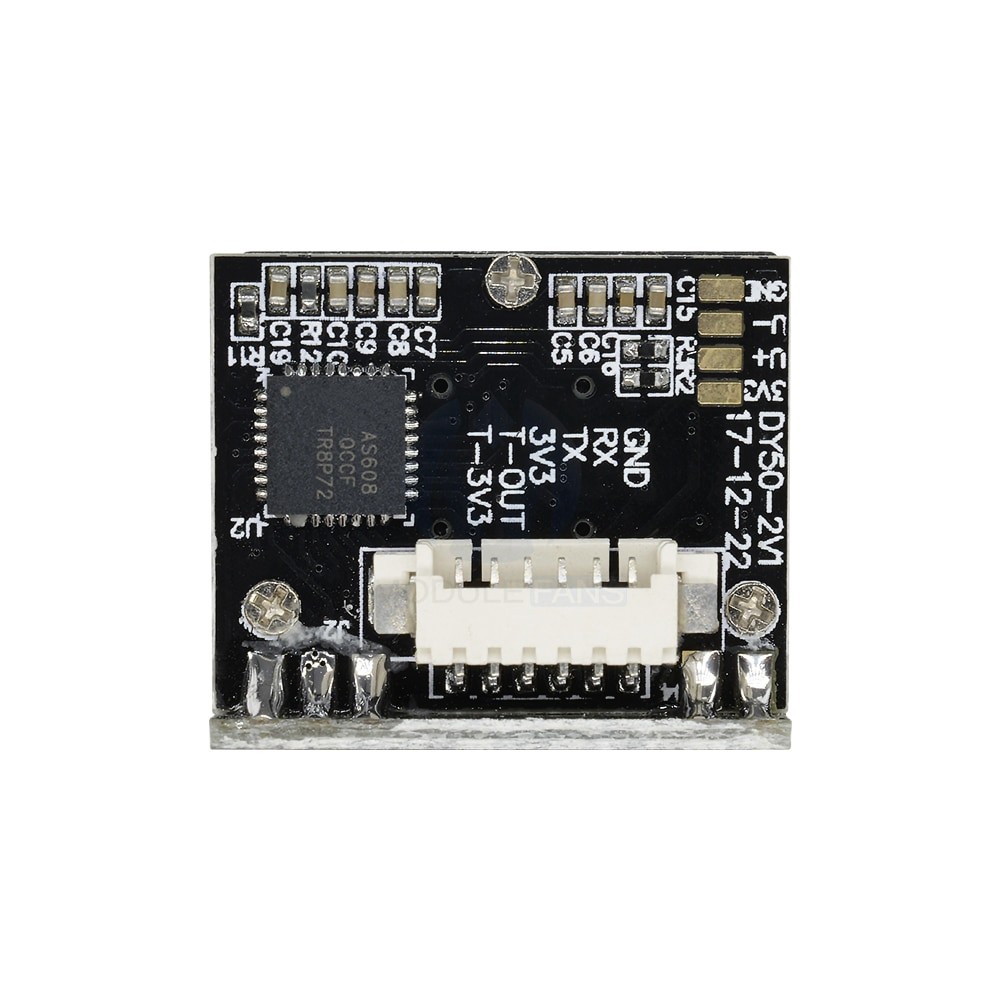

Hardware connection:
Module via a serial communication interface, directly with 3.3V or 5V power microcontroller communication: Module data transmission feet (2
Foot TD) connected to the data bit machine receiving end (RXD), data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD).
For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer
Circuitry (e.g.: MAX232 circuit)

Untuk gampang nya gunakan library adafruit beserta sample sample untuk test dan belajar koding nya.

Terima kasih sudah mengunjungi produk kami, sukses selalu.

Isi Paket :
1x FPM10A FINGERPRINT SENSOR SIDIK JARI COMPATIBLE ARDUINO
