FORTABLE RIG YAESU FT-818ND HF VHF UHF ORI FT818ND FT818 FY 818 SSB YAESU

Detail FORTABLE RIG YAESU FT-818ND HF VHF UHF ORI FT818ND FT818 FY 818 SSB YAESU

Brand: Yaesu
Type: FT-818ND

Features :
- Power output 6W(SSB, CW, FM) 2.0W(AM)
- Built-in TCXO-9
- Larger battery capacity
- 208 Channels / 10 Groups
- 160-10m , HF, 6m, 2m and 70 cm Bands
- Compact and Portable
- Two Ant Connectors
- IF Shift, IF Noise Blanker, IPO, ATT
- CW "Semi-Break-in", CW Reverse, CW Pitch Control
- Built-in Electronic Keyer
- Multi-Color Easy to see LCD
- Internal Battery Operation
- ARS
- APO
- Front Panel Key Lock Mode

Specs :
Frequency Range:
- RX: 100kHz-56MHz, 76-154MHz, 420-470MHz
- TX: 160-6m, 2m, 70m(Amateur band), 5.1675Mhz(USA)

Emission Modes: A1A(CW), A3E(AM), J3E(LSB/USB), F3E(FM), F1D(9600bps packet), F2D(1200bps packet)
Synthesizer Steps: 10Hz(CW/SSB), 100Hz(AM/FM)
Antenna Impedance: 50Ω
Stability: ±0.5ppm(CW/SSB/AM), ±1KhZ ±0.5ppm(FM)
Supply Voltage: *pic.3
Current Consumption: Squelch(300mA), RX(450mA), TX(2.4A[HF/50/144MHz], 2.7A[430MHz])
Operating Temperature: -10°C to +60°C
Case Size(W x H x D): 135x38x165mm
Weight: 900g(w/o batt, ant, and Mic)


Receiver:
Circuitry: Double-conversion Superheterodyne(SSB/CW/AM/FM), Single-conversion Superheterodyne(WFM)
IF:
- 1st: 68.33MHz(SSB/CW/AM/FM)
- 2nd: 10.7MHz(WFM)

Sensitivity: *pic.3
Squelch Sensitivity: *pic.3
Selectivity(-6dB/-60dB): *pic.3
Image Reject: 70dB(HF/50MHz), 60dB(144/430MHz)
IF Rejection: 60dB
AF Output: 1W(8Ω for THD 10%)
AF Output Impedance: 4-16Ω
Conducted Radiation: <4nW

Transmitter:
RF Power Output: 6W(SSB/CW/FM), 2W(AM)@13.8V
Modulation: Balanced Modulator(SSB), Early Stage(Low Level)(AM), Variable Reactance(FM)
Maximum Deviation: ±5kHz(FM-N: ±2.5kHz)
Spurious Emission: -50dB(1.8-29.7MHz), -60dB(50/144/430MHz)
Carrier Suppression: >40dB
Opp. Sideband Supp.: >50dB
SSB Frequency Response: 400-2600Hz(-6dB)
Microphone Impedance: 200-10k Ω(nominal: 600Ω)

Barang 100% Baru & Original

GARANSI RESMI 1 TAHUN

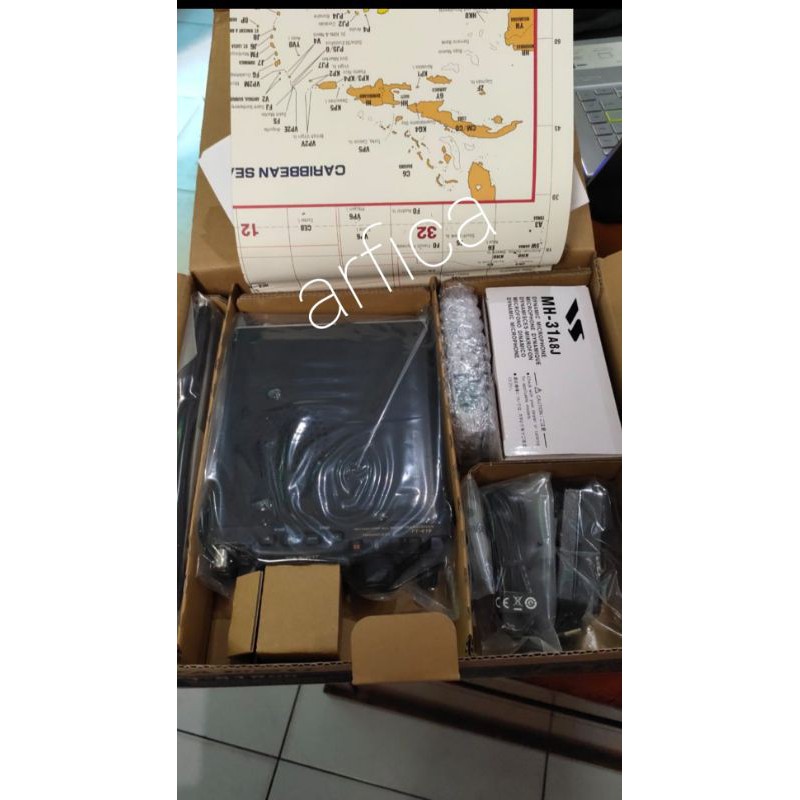

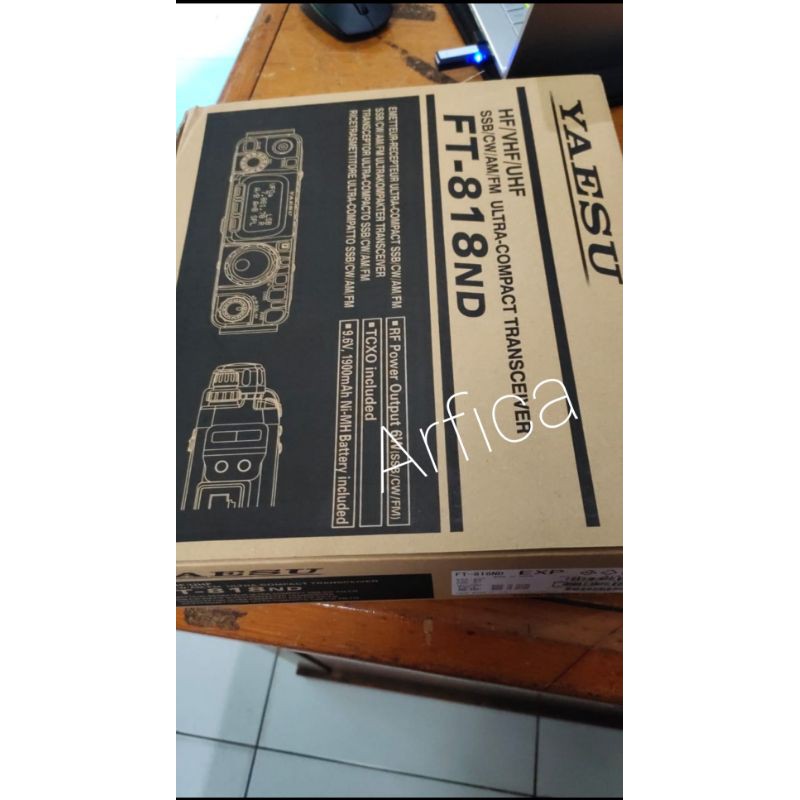

Gambar produk
