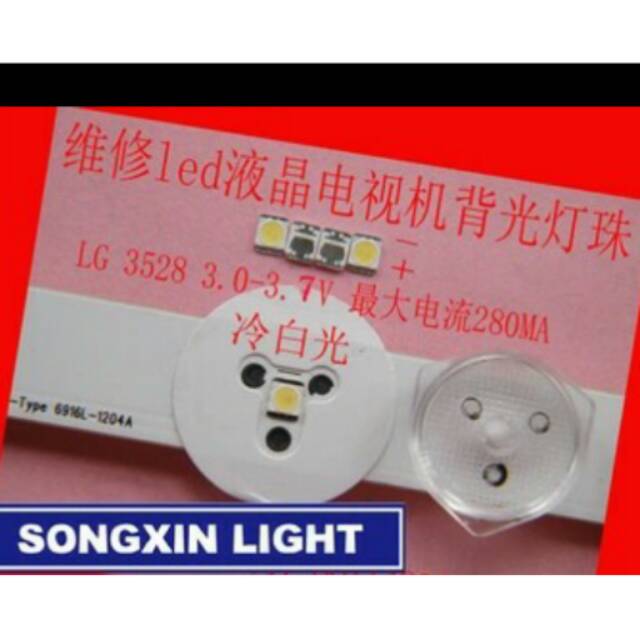

FOR Original LG LED LCD TV backlight lamp beads lens 1W 3v 3528 2835 cool white light bead

Detail FOR Original LG LED LCD TV backlight lamp beads lens 1W 3v 3528 2835 cool white light bead

LED SMD 3528 LG 1W Backlight TV LCD Cold White 2835 Korea Putih Terang

Digunakan untuk repair / service Backlight TV LCD LED yang sudah mati / gelap, bisa juga untuk membuat penerangan untuk keperluan lainnya.

Spesifikasi:
Manufacturer : LG
Origin : Korea
Forward Current (IF ): 400mA
Pulse Forward Curren t1 (IFp): 650mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 0.8-1.2V (5mA)
Power Dissipation (PD): 1460mW
Operatin Tgemperature (Topr): -30 - +90 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C for 10secs
Hand Soldering:350 °C for 3secs
Junctio Tnemperature (Tj ): 135°C
Forward Voltage (VF): 3.05-3.65V (250mA)
Luminous Flux (LM): lm (20mA)
Luminous Intensity ( IV ) : 23.5cd (250mA)
Wavelength (nm) : -nm mA
CIE : x=0.2960 y=0.2770 (250mA)
Color Correlated Temperature (CCT):
CRI : 80°
Viewing angle : 120°

Paket:
1 buah Led Smd 3528 2835 Putih

FOR Original LG LED LCD TV backlight lamp beads lens 1W 3v 3528 2835 cool white light bead.
#backlight #smd #ledtv #leddiode

Gambar produk
