(Flyag) Konverter USB Ke RS485 422 RS485 Industrial

Detail (Flyag) Konverter USB Ke RS485 422 RS485 Industrial

Features:
1. All Using Brand New Chips! With TXD, RXD Indicator;
2. Industrial-Grade Protection: TVS Transient Suppression Protection, Electrostatic ESD Protection, Surge Protection, AB Signal Line Short-Circuit And Power Supply Short-Circuit Protection (Short Circuit Does Not Burn);
3. Transmission Distance Up To 1200 Meters (Tested At 9600bps)
Support Baud Rate 921600, Much Higher Than 115200, Use Higher Baud Rate For Paired Mutual Transmission;
4. Multi-System Support Hot-Plugging, Support Win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/LINUX/MAC OS X System, USB Interface Can Be Hot-Pluggable;
5. Automatically Discriminate And Control The Direction Of Data Transmission, Without Any Handshake Signals (Such As RTS, DTR, Etc.), Mode Conversion Can Be Achieved Without Jumper Settings, Ensuring Compliance With Existing Communication Software And Interface Hardware.


Specifications:
Material: Plastic

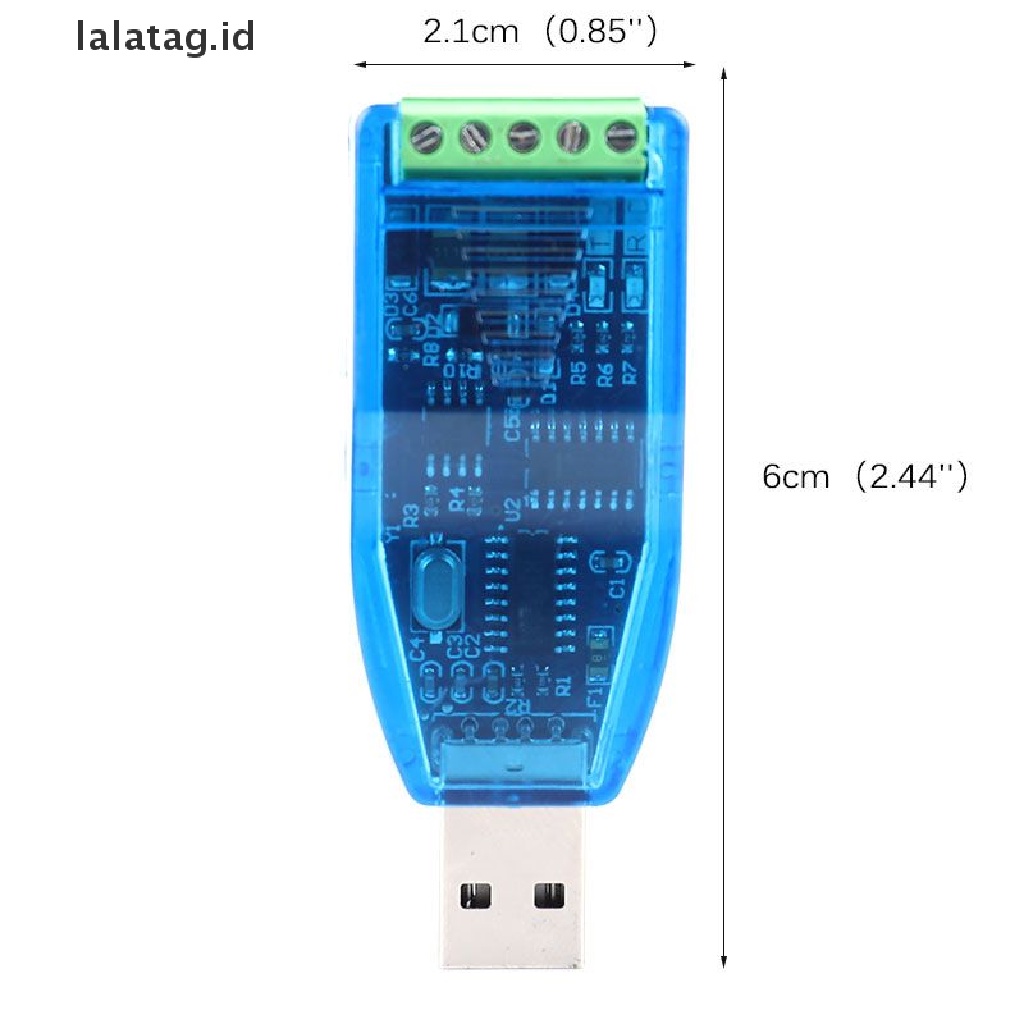

Size: As Shown (1inch=2.54cm)
Color: As Shown


Package Included:
1Pc Industrial USB To RS485 422 Converter.


Note:
1. Due To The Different Monitor And Light Effect, The Actual Color Of The Item Might Be Slightly Different From The Color Which Is Showed On The Pictures.
2. Please Forgive 0.1 Cm/0.039"-0.3 Cm/0.118" Measuring Deviation Due To Manual Measurement.
