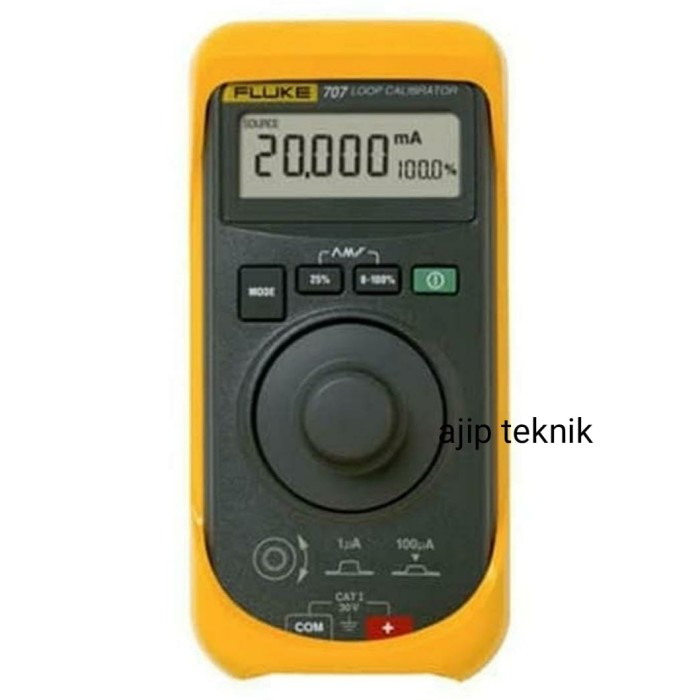

Fluke 707 loop callibrator with quick click knob 28v Original asli Usa

Detail Fluke 707 loop callibrator with quick click knob 28v Original asli Usa

The Fluke 707 Loop Calibrator is a high performance solution for calibration, repair and maintenance of current loops. The new " Quick Click " knob making it extremely fast and easy to use. It features:

One handed user interface with " Quick Click " detented knob
mA sourcing, simulation and measurement
0.015% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure, including 250 HART resistor
0-28 VDC measurement to check Loop Voltage
Easy battery exchange without opening the case
Compact case with separate protective holster
The fast, one-handed tool for loop checks. Just click to calibrate.
This feature-rich solution combines the best features push-button and knob-base loop calibrator and offers:

Large display and simple, quick-click interface for easy one-handed operation.
Simultaneous mA and % readout for quick, easy interpretation of readings.
mA accuracy of 0.015% , superior to other loop calibrators in this price range.
1 A resolution for mA source, simulate and measure.
Push button 25% steps for fast, easy linearity checks.
0-100% span check for fast confirmation of zero and span.
Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests.
24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
Measures V dc to 28 V.
Single 9V battery that is easily changed without braking calibration seal
0 - 20 mA or 4 - 20 mA default start up modes.
Innovative output adjustment dial with 1 A and 100 resolution.
HART mode connects 250 resistor in series with 24 V loop for compatibility with HART communicators. ...
