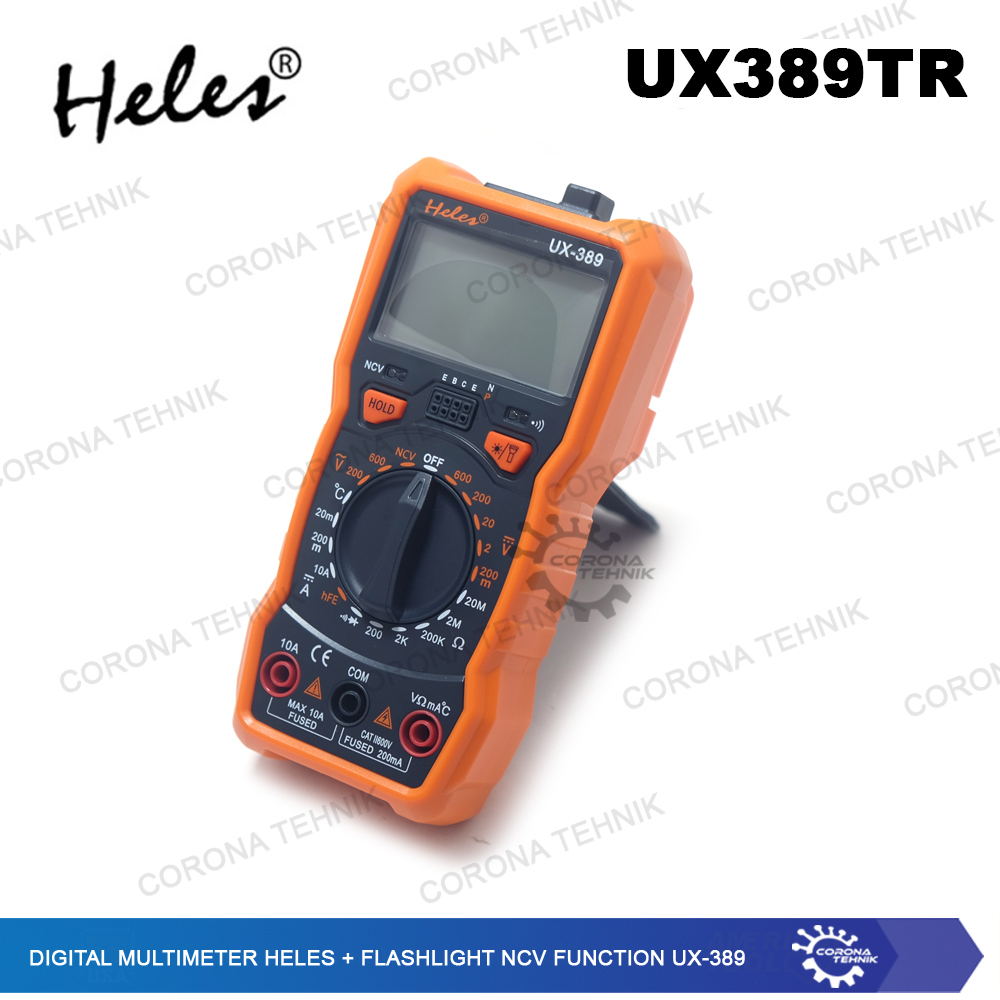

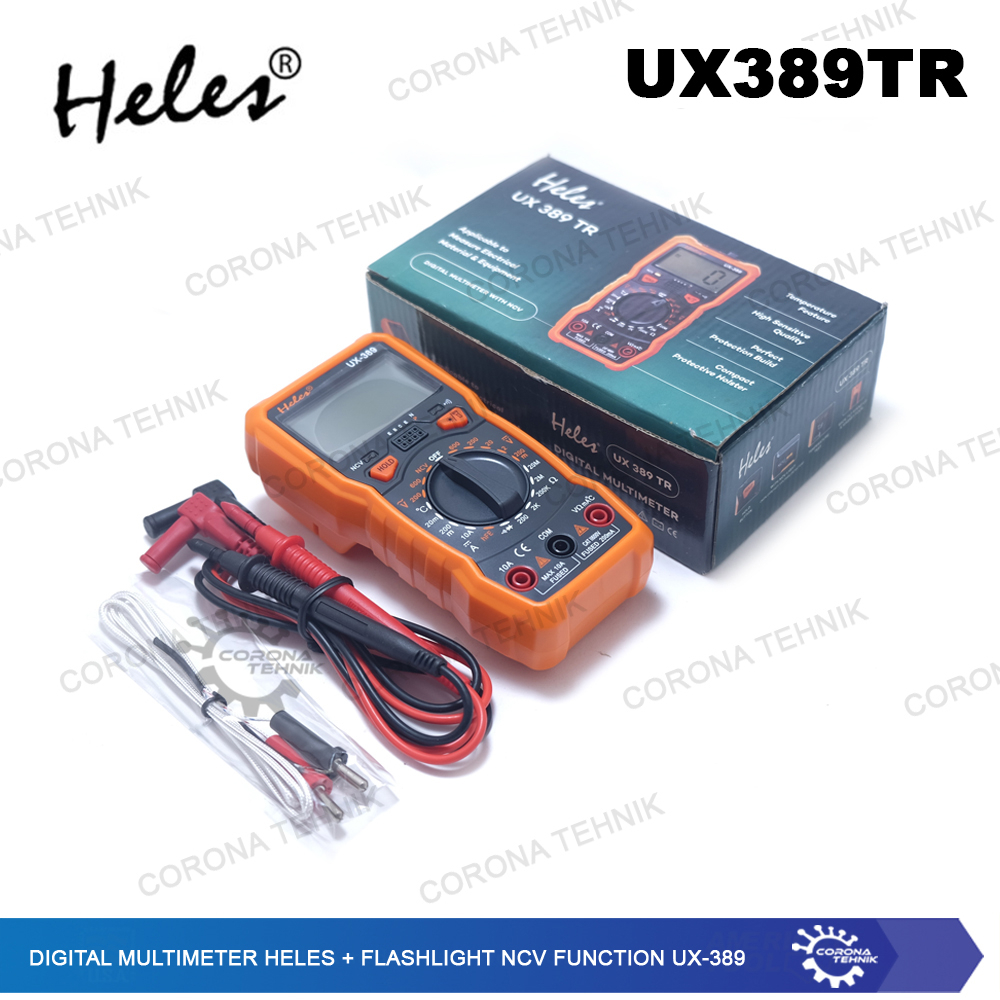

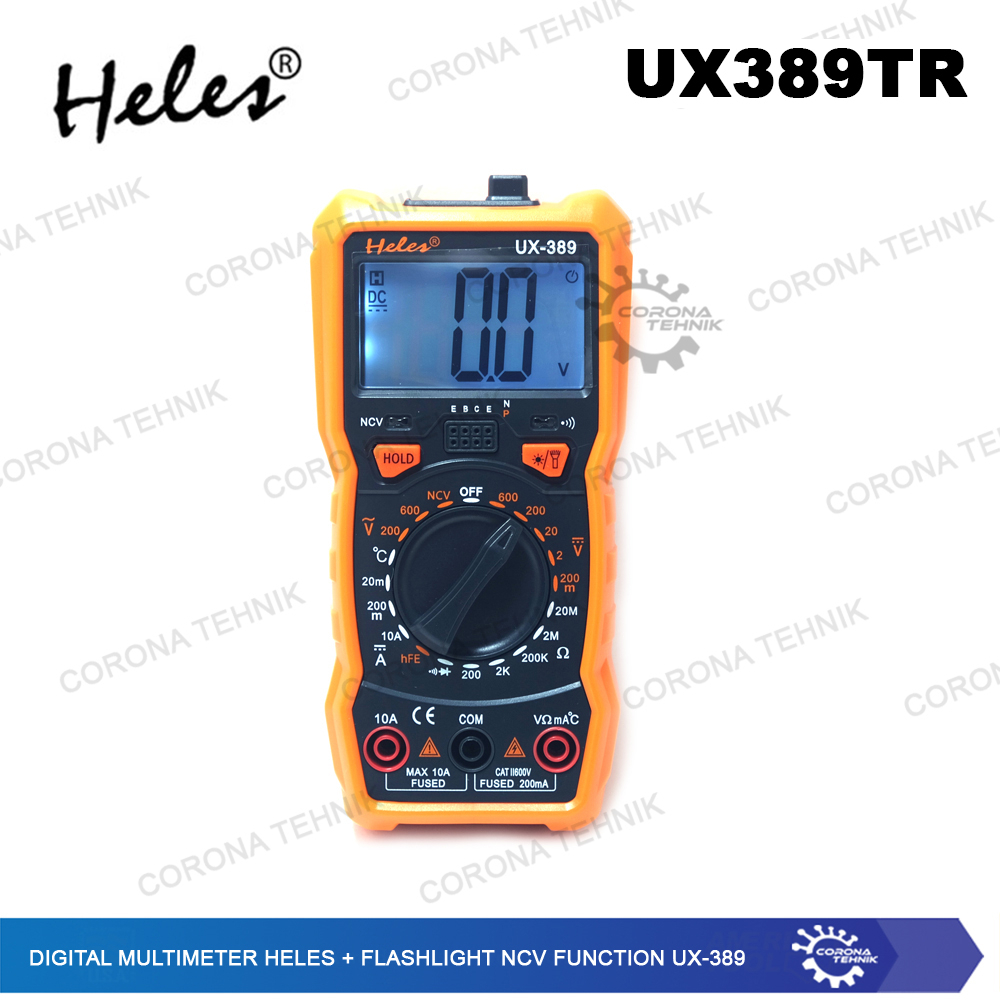

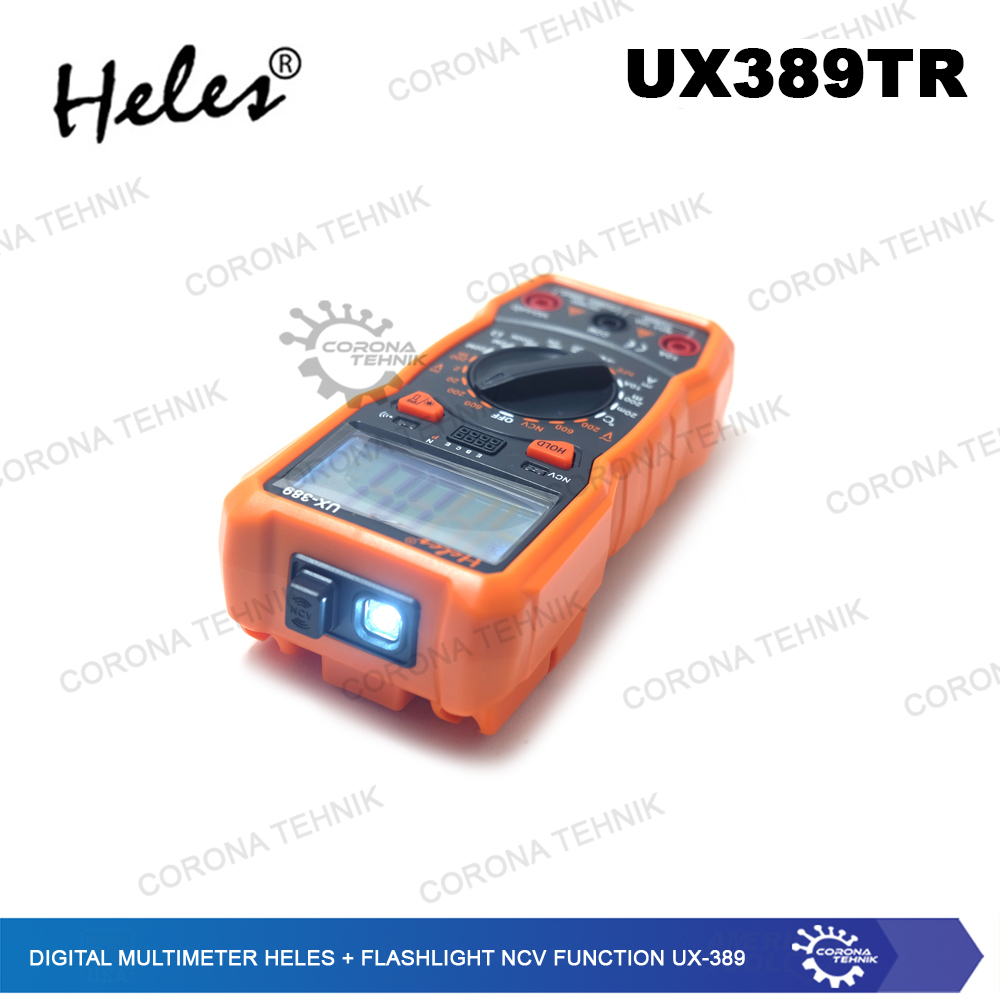

Flashlight NCV Function UX389TR + Digital Multimeter Heles

Detail Flashlight NCV Function UX389TR + Digital Multimeter Heles

Digital Multimeter Heles + Flashlight NCV Function UX389TR

Operating conditions : 600V.CAT IV
Pollution grade : 2
Height : under 2000m
Working temperature : 0-40 ° C ( < 80 % RH , not considered < 10 ° C )
Storage temperature : -10-60 ° C ( < 80 % RH , take off battery )
Test or calibrate surrounding temperature : 20 ° C + 2 ° C
The biggest voltage between measurement end and ground : 600V
Fuse protection :: mA " range , fuse : F 200mA / 250V ; " A " range , fuse : F 10A / 250V
Conversion rate : about 3s / second
Display : 1999counts LED display
Overload : " OL " displayed
Low voltage display of battery : displayed when the working voltage is low
Input polarity indicator : shown automatically
Battery : 3X1.5V AAA -
Size : 147mm ( L ) * 71mm ( W ) * 45mm ( H )
Weight : about 220g ( battery excluded )

Range :
- DC Voltage : 200mV, 2V, 20V, 200V, 600V
- AC Voltage : 200V, 600V
- NCV (Non-Contact ACV Detecting) Test
- Resistance : 200Ω, 2kΩ, 200kΩ, 2MΩ, 20MΩ
- Diode and Buzzer
- Transistor
- Direct Current DCA : 2mA, 20mA, 200mA, 10A
- Temperature : -20℃ - 1000℃
