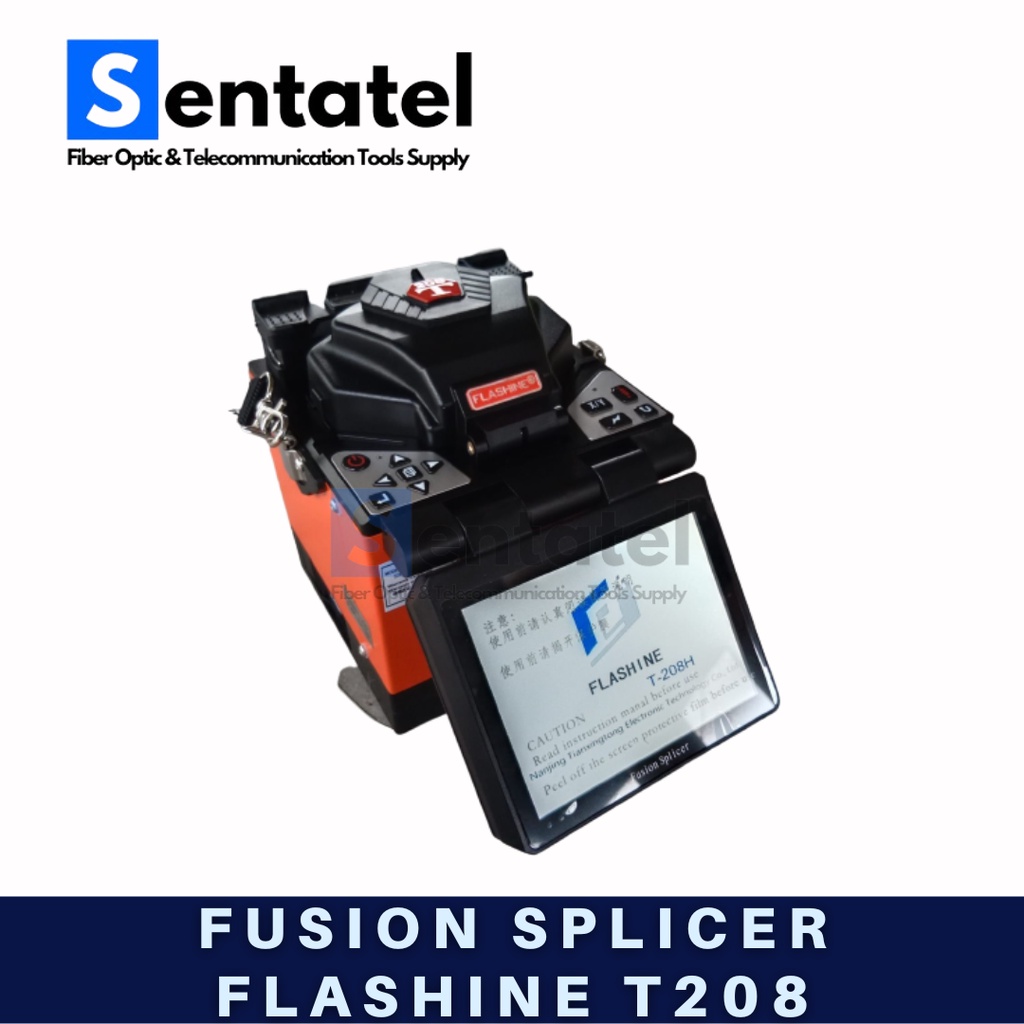

FLASHINE T208 Splicer T208 Fusion Splicer Splicing

Detail FLASHINE T208 Splicer T208 Fusion Splicer Splicing

FLASHINE T208

Features:
5 inches high Resolution colorful LCD display
Average splice time:10 second
Average tube-heat time:30 second
Lithium battery: up to 180 times of continuous splice and heat
Simultaneous X and Y views wi th 180 times magnification
New developed technology providing wind and dust resistance
Splicing mode:Auto & Manual & Full-Automation
USB Port
Storing 6,000 groups of splice results.
Multipurpose optical fiber fixture(Such as: Rubberinsulated
wire, fiber optic patch cord, bare fiber)

Specifications:
MODEL T208
Applicable Fibers SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series
Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss 60dB
Tension Test 2.0N(200gf)(Standard)
Splicing Program 50 groups
Protection Sleeve Length 20mm, 40mm, 60mm
Language Chinese, English
Environmental Conditions -10 ~ +50 (operation temperature),0 ~95% RH(humidity), 0 ~5000m(altitude)
Power Supply AC adaptor: 100 ~ 240V input voltage, 50/60Hz; 12V, 5A output
voltage(DC)
DC adaptor: 12V voltage 8AH
Dimensions 155(W)*165(D)*150(H)
