Flame sensor api 5 Channel detector pendeteksi Fire module for arduino

Detail Flame sensor api 5 Channel detector pendeteksi Fire module for arduino

Deskripsi Produk

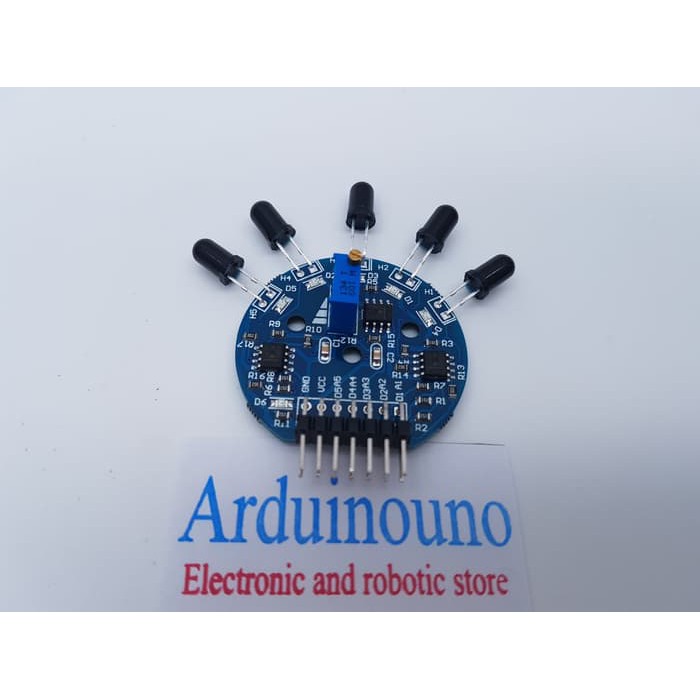

5 Channel Flame Sensor Module for Robot Fire Alarm

Description:

Flame sensor design using the detection range (normal detection range of a single flame sensor probably about 30 , as the distance increases, the range decreases, the detection range of the product is greater than 120 )

Able to output a digital signal (high and low), easy to use

Can output the analog signal (voltage signal), the signal can be accurately measured, for high precision applications

All five outputs with status indicators, so whether in debug or in practical use has brought great convenience

Adjustable detection range digital output, analog output sensitivity adjustable design flexibility

Using 1% resistor design (flame sensor available in the market are designed with a resistance of 5%), the signal output is more accurate for high-precision measurements of the occasion demands

Onboard 3 M3 mounting holes for easy installation

3.3V-9V power supply, compatible with most of the SCM system

SMT chip devices all use automatic welding technology, military quality trustworthy

How it works:

This product is capable of detecting flames emitted wavelength range of 700-1100 nm, respectively near infrared short wave (SW-NIR), by means of an electrical signal (voltage signal) is output.



Applications:

All flame detection needs of the occasion



Use Case:

Fighting robot

Fire alarm
