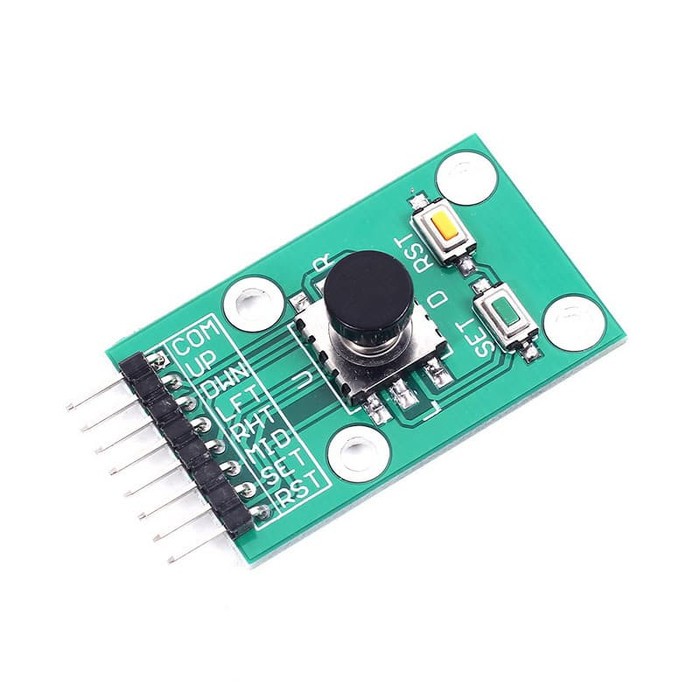

Detail Five 5 Direction Navigation Button for MCU AVR Game 5D Rocker Joystick

Parameters:
- The number of IO : 7
- Operating voltage : 2.0V-9.0V
- Size : 25mmx41mm
- Operating temperature : -40 Celsius -85 Celsius


Pin Description:
- COM Common end VCC or GND connected to the MCU development board
- UP Up direction button Connect to IO pin of the MCU
- DWN Down direction button Connect to IO pin of the MCU
- LFT Left direction button Connect to IO pin of the MCU
- RHT Right direction button Connect to IO pin of the MCU
- MID Middle direction button Connect to IO pin of the MCU
- SET Set button Connect to IO pin of the MCU
- RST Reset button Connect to IO pin of the MCU
