Finger Print Sensor Module DY50 - FPM10A Compatible for Arduino

Detail Finger Print Sensor Module DY50 - FPM10A Compatible for Arduino

Catatan : Modul ini belum termasuk kabel.

Optical fingerprint / biometeric sensor module FPM10A DY50 with TTL/UART interface with full firmware support and a windows fingerprint capture software.

Applications

Biometric IdentificationSecurity systemsIdentification systemsElectronic Voting SystemsQue management systemsMobile SIM issuing systems

Technical Specifications

Power supply voltage:3.3v
Supply current:working current: Peak current:The time of fingerprint image input:< 1 seconds
The window size:14 x 18 mm
Profile:256 bytes
Template file:512 bytes
Storage capacity:300
False accept rate (FAR):< 0.001% (safety grade 3)
FRR (FRR):< 1% (safety grade 3)
The search time:< 1 seconds (1:500, mean)
Computer interface:UART (TTL logic level)
The communication baud rate (UART):(9600 x N) BPS where N=1 ~ 12 (the default value of N=6, namely 57600bps)
Working environment: temperature:-20Cto +50C
Relative humidity:40%RH to 85%RH (no treatment)
Storage conditions:temperature: -40Cto +85C
Relative humidity:< 85%H (no treatment)
Dimensions (L * W * H):46.25 x 20.4 x 18.1mm

Pinouts

1 NC
2 NC
3 VCC (3.3V Power)
4 TXD
5 RXD

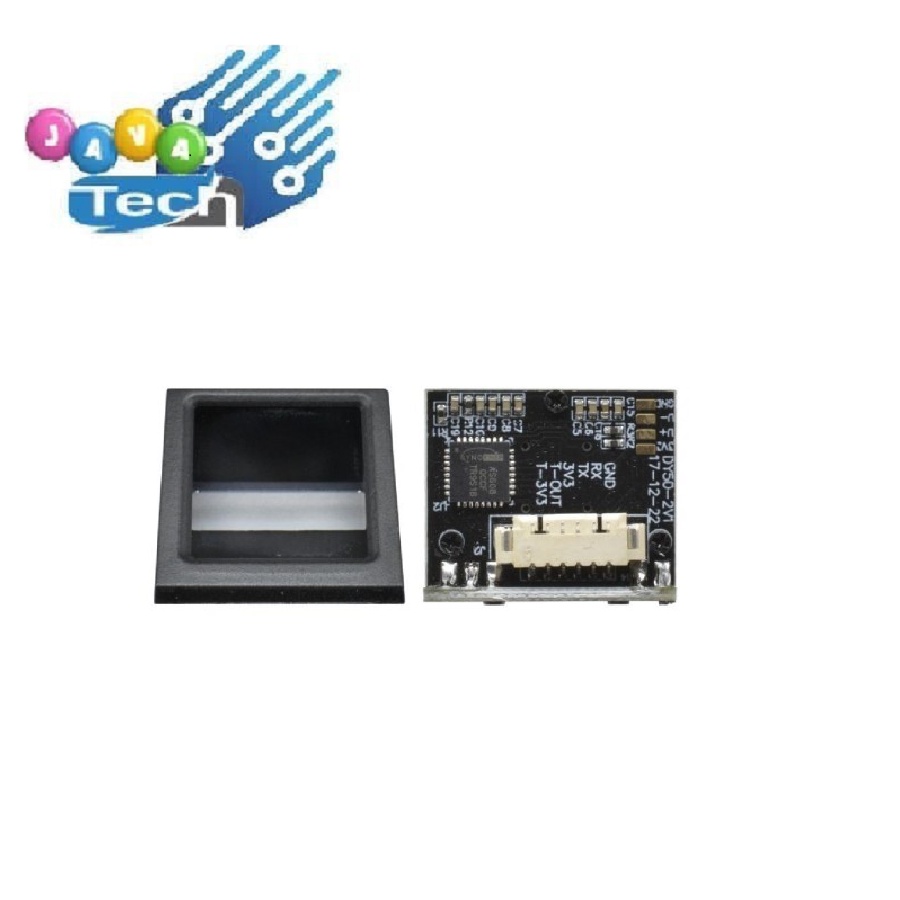

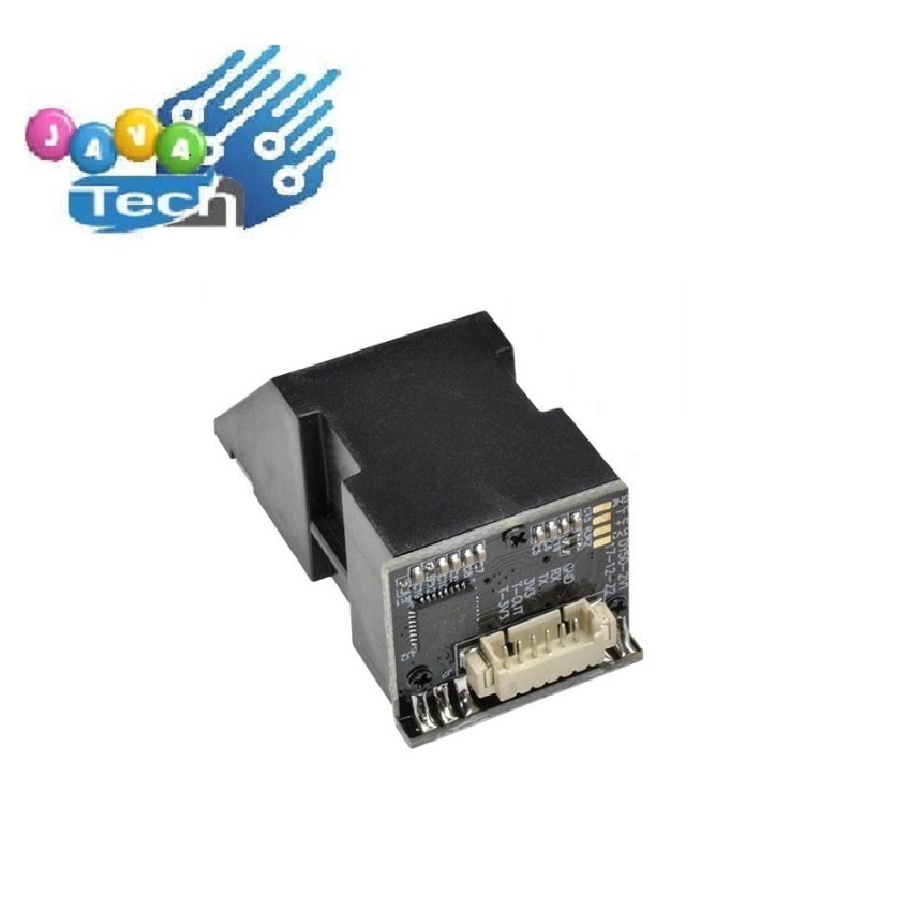

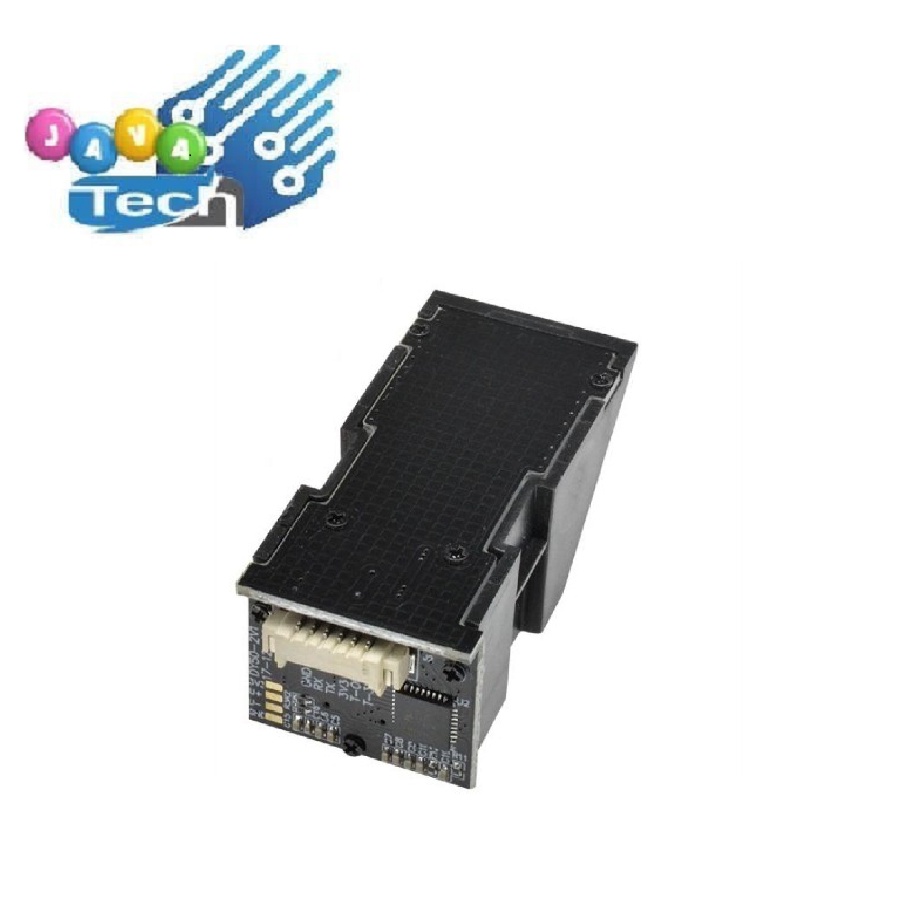

Gambar produk
