Filter Drier EMERSON EK 304

Detail Filter Drier EMERSON EK 304

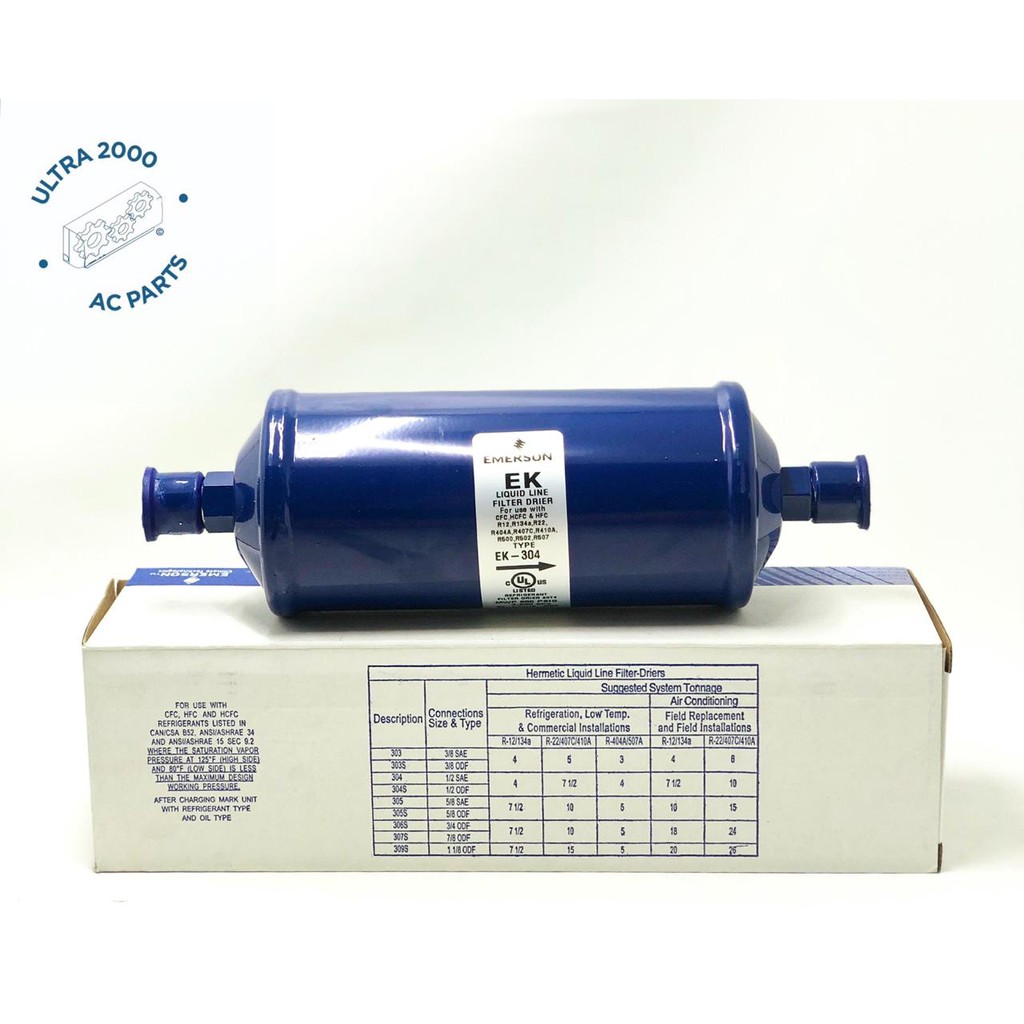

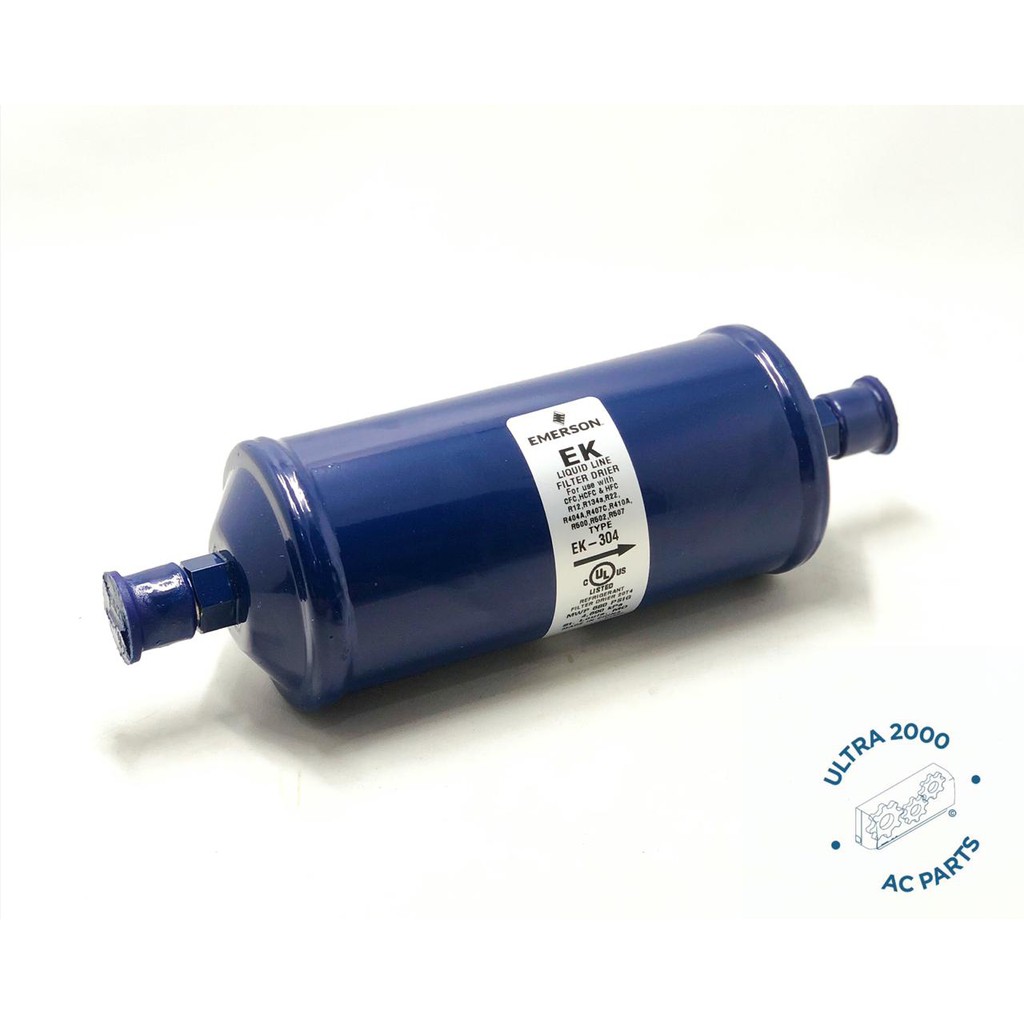

EMERSON FILTER DRIER EK 304 (048212)

The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration.
The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-134a, R-22, R-404A, R-407C, R-410A, R-500 and R-507.

FEATURES :
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid rempoval capacity
- Solid copper connections
- Corrosion resistant epoxy powder paint finish
- Approved for POE oils with Copeland cpmpressors
- shock resistant steel shell construction

Specification :
- Desiccant blend - optimized for high water capacity and acid capacity
- Filtration: 20 microns
- Maximum working pressure: 680 psig
- UL/CUL file number: SA 3124

ORDERING INFORMATION:
PCN: 048212
Description: EK 304
Dimensions: 9.88 x ... x ...x 7.54 x 3.14
Weight (lbs): 3.01

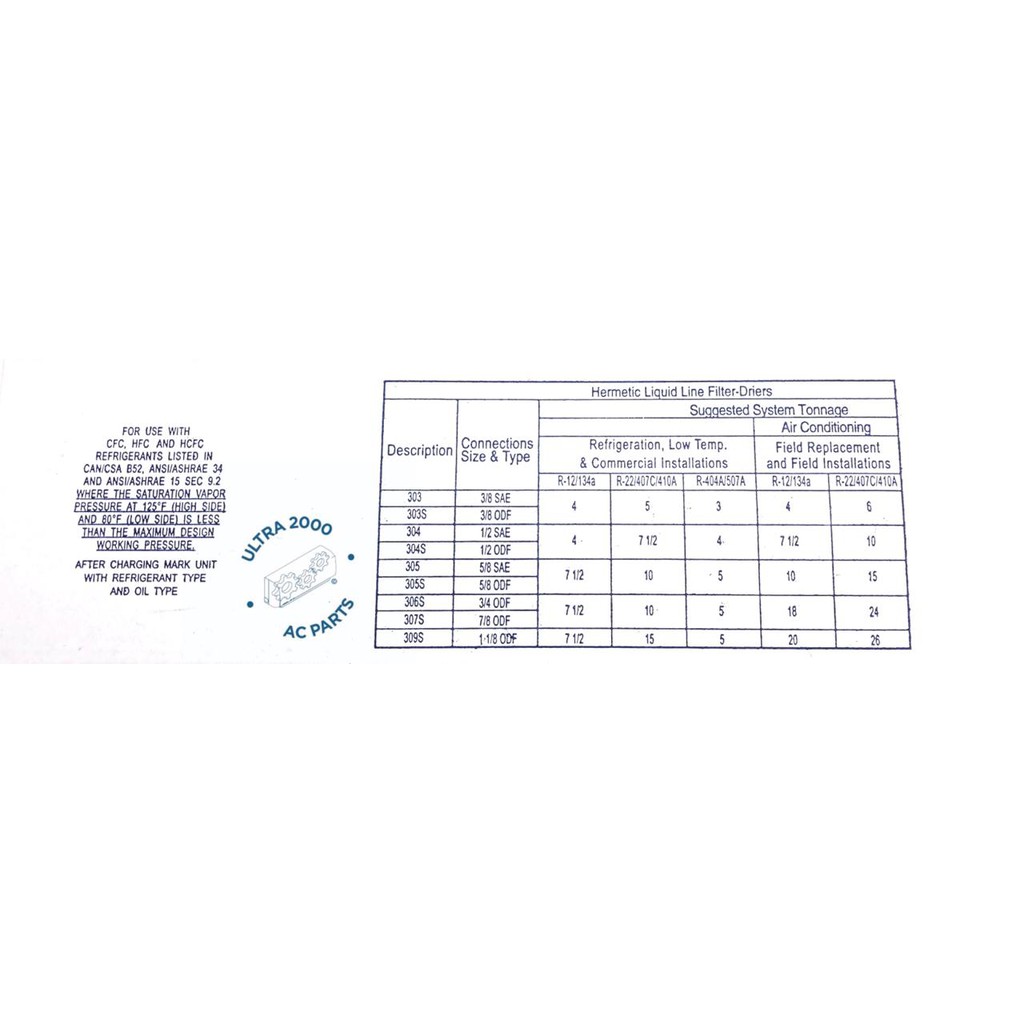

CAPACITY TABLES:
Description: EK 304
Connections Inlet/Outlet: 1/2 SAE
R-134a: 8.1
R-22/R-410A: 8.8
R-407C: 8.6
R-404A/R-507: 5.9
R-744: 11.4

Gambar produk
