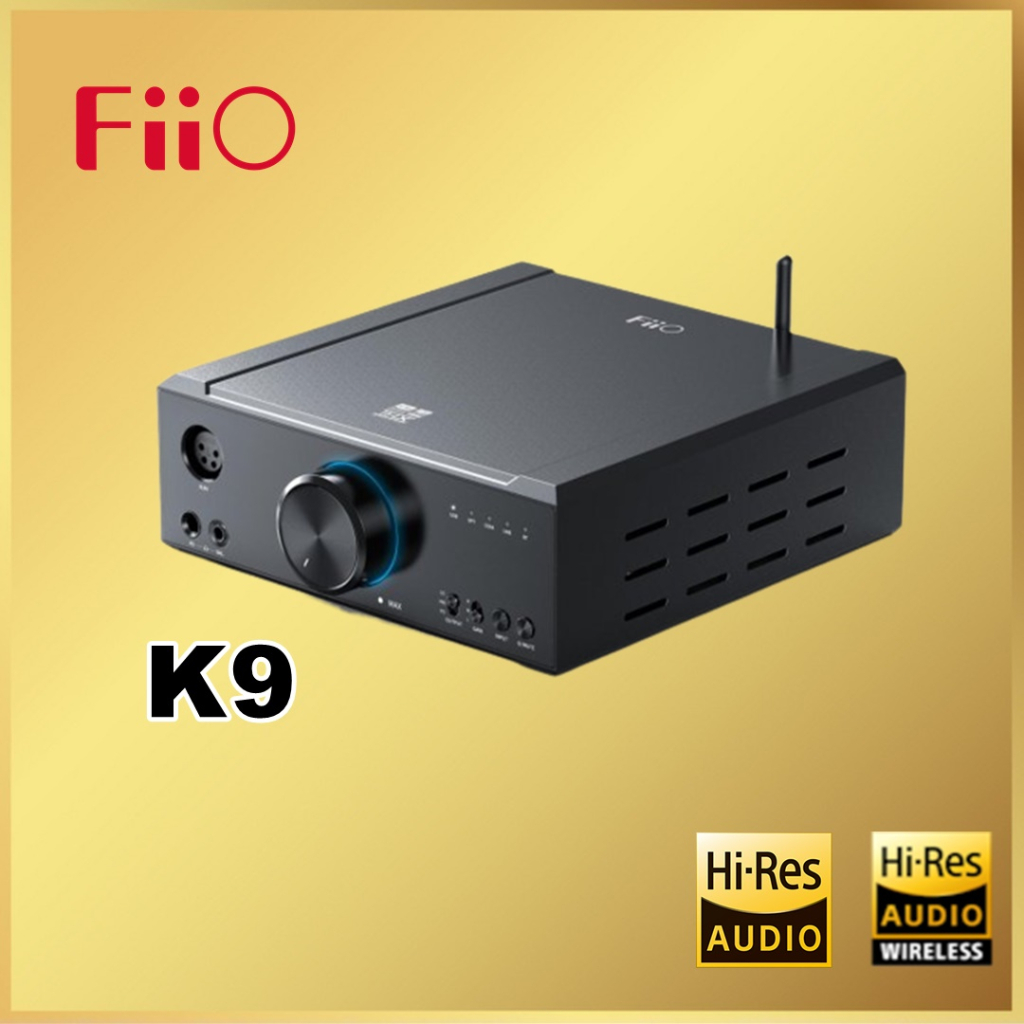

FiiO K9 K 9 Desktop DAC & Headphone Amplifier

Detail FiiO K9 K 9 Desktop DAC & Headphone Amplifier

Note :
Garansi Resmi 1 Tahun

GENERAL SPECIFICATIONS:
Name/Model: K9:
Hardware solution: DAC:ES9068A * 2,USB:XMOS XUF208, Bluetooth: QCC5124,LPF:OPA1612 * 2, Volume IC:NJU72315 * 2,AMP:THX AAA788 + * 2, Transformer: Linear Transformer;
Color: Black
Volume control type: Analog potentiometer (ADC sampling)
Weight: Approximately 2660g
Channel balance: L12 ~ R12 (0.5dB per stage)
Gain: L/M/H
FiiO Control: Support
Bluetooth format indication: Support
Sample rate indication: support
Size: 200x 224.5x 72mm (excluding foot pads)
Firmware upgrade: The system firmware and Bluetooth version can be upgraded through USB
Deep Standby: Long press the multi-function key for about 3 seconds
Bluetooth Reception (5.1): AAC/SBC/aptX/aptX LL/aptX HD/LDAC/atpX Adaptive
Bluetooth format indicator: SBC: blue, AAC: cyan, aptX HD: yellow, aptX: purple, aptX LL: purple, LDAC: white, atpX Adaptive: green
The highest supported sampling rate:
768kHz-32bit/DSD512(USB DAC)
192 kHz-24bit (coaxial)
96 KHz-24bit (fiber)
Adaptation Impedance: 16~600 Ω
KEYS AND INTERFACES:
Key: Solid key + toggle switch
USB: USB B
Single-ended input interface: RCA socket
Balancing Line Input Interface: 4.4mm balance socket
Digital fiber input interface: Optical fiber socket
Digital coaxial input interface: RCA socket
Balancing output interface: 4.4mm socket, XLR4 balanced socket
Headset output interface: Standard 6.35mm socket
Balancing line output interface: XLR3 balance socket
Single-ended line output interface: RCA socket

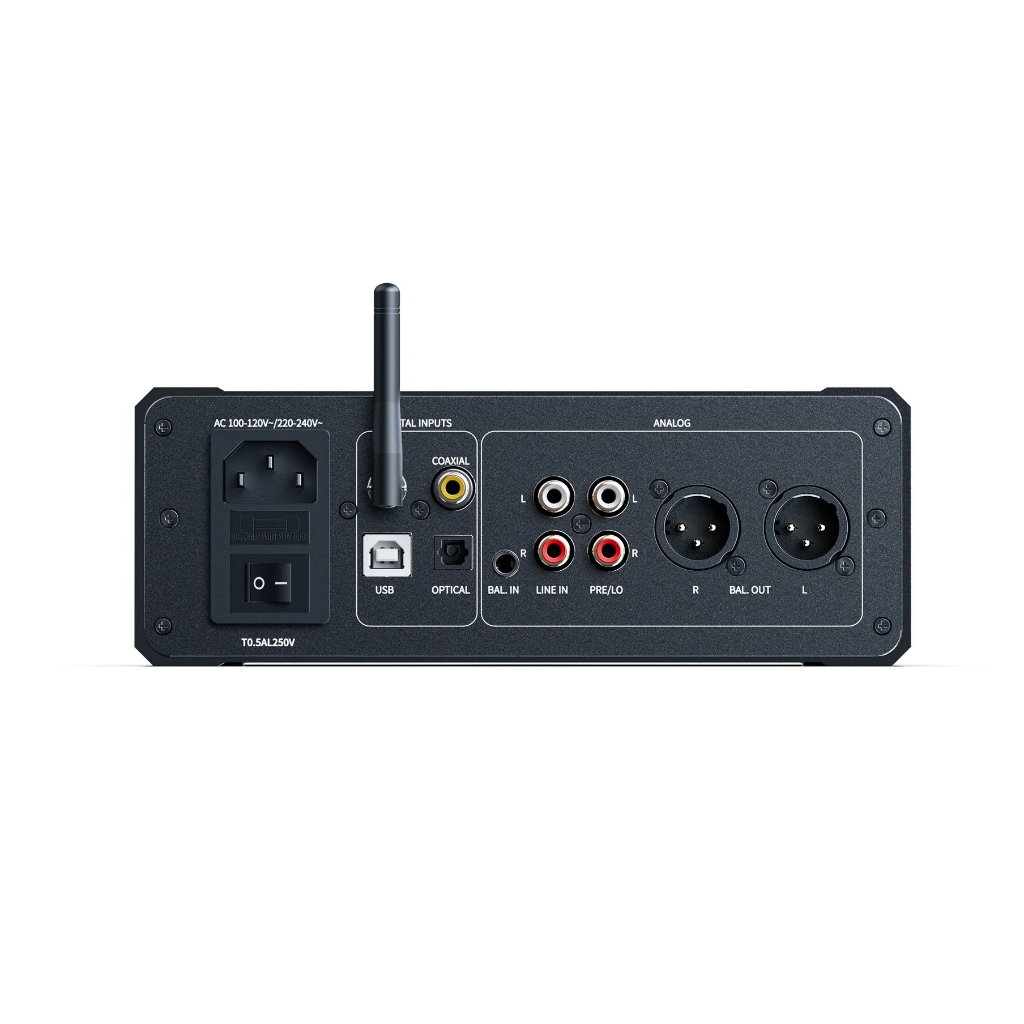

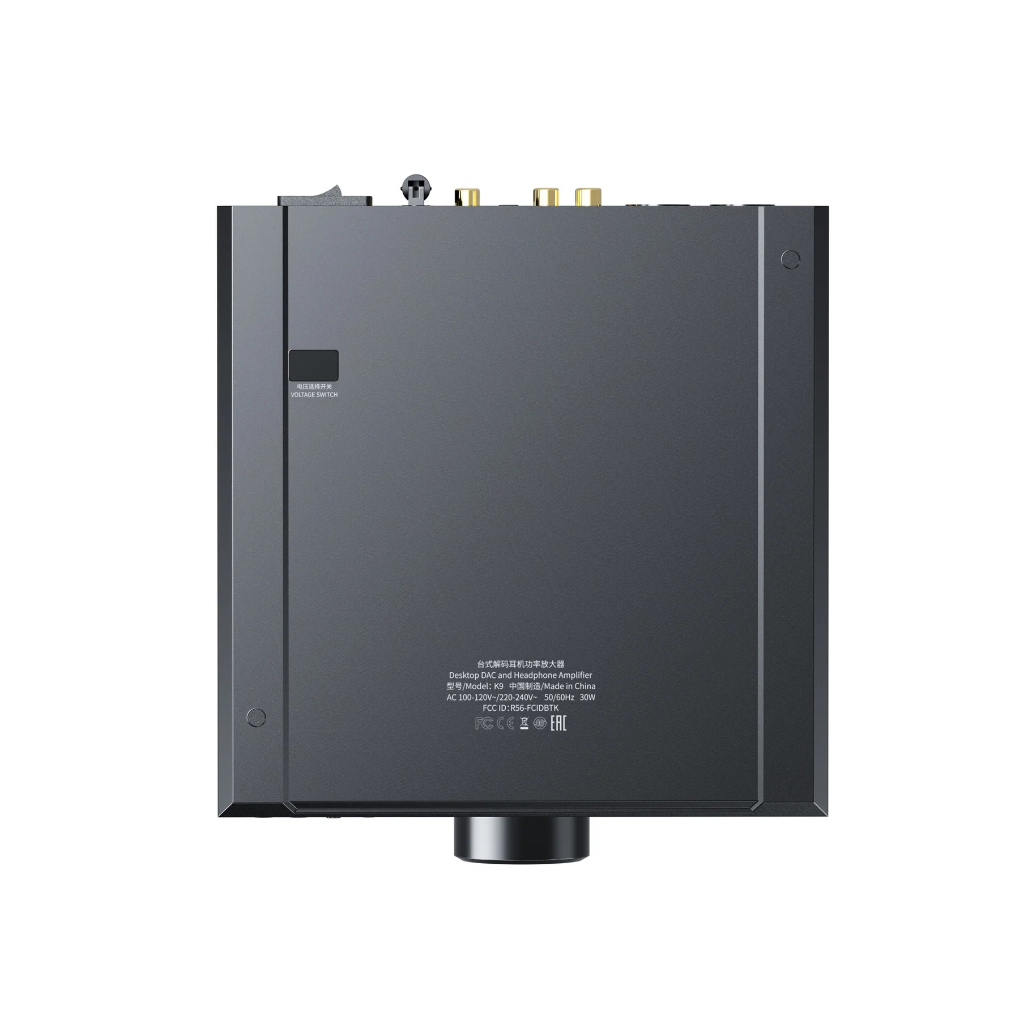

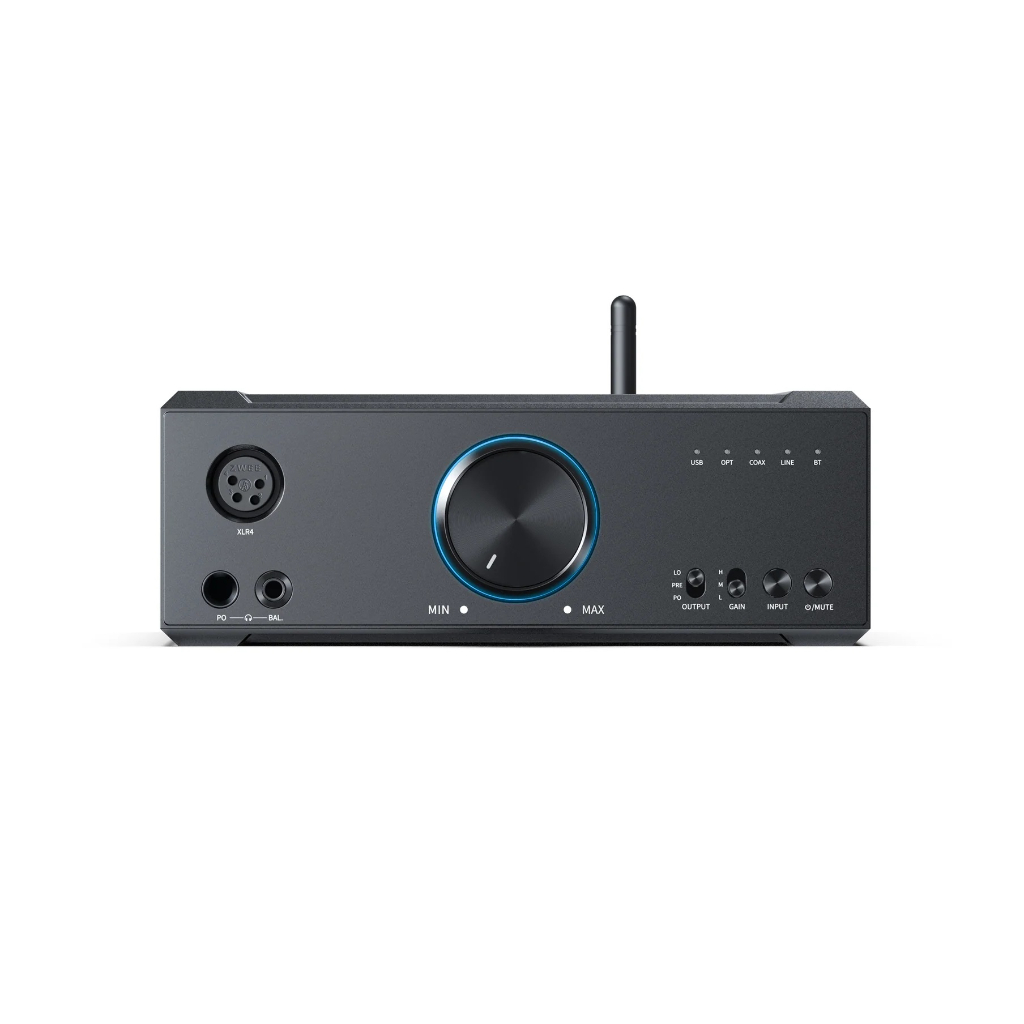

Gambar produk
