FiiO BTR5 Portable Bluetooth Amplifier with Dual DAC Chipset BTR 5

Detail FiiO BTR5 Portable Bluetooth Amplifier with Dual DAC Chipset BTR 5

FiiO BTR5 2021 (New Edition)
Portable Bluetooth Amplifier with New Dual DAC Chipset

FEATURES
◉ High Performance DAC ES9219C*2
◉ Qualcomm CSR CSR8675
◉ XMOS XUF208
◉ Hi-Res Audio

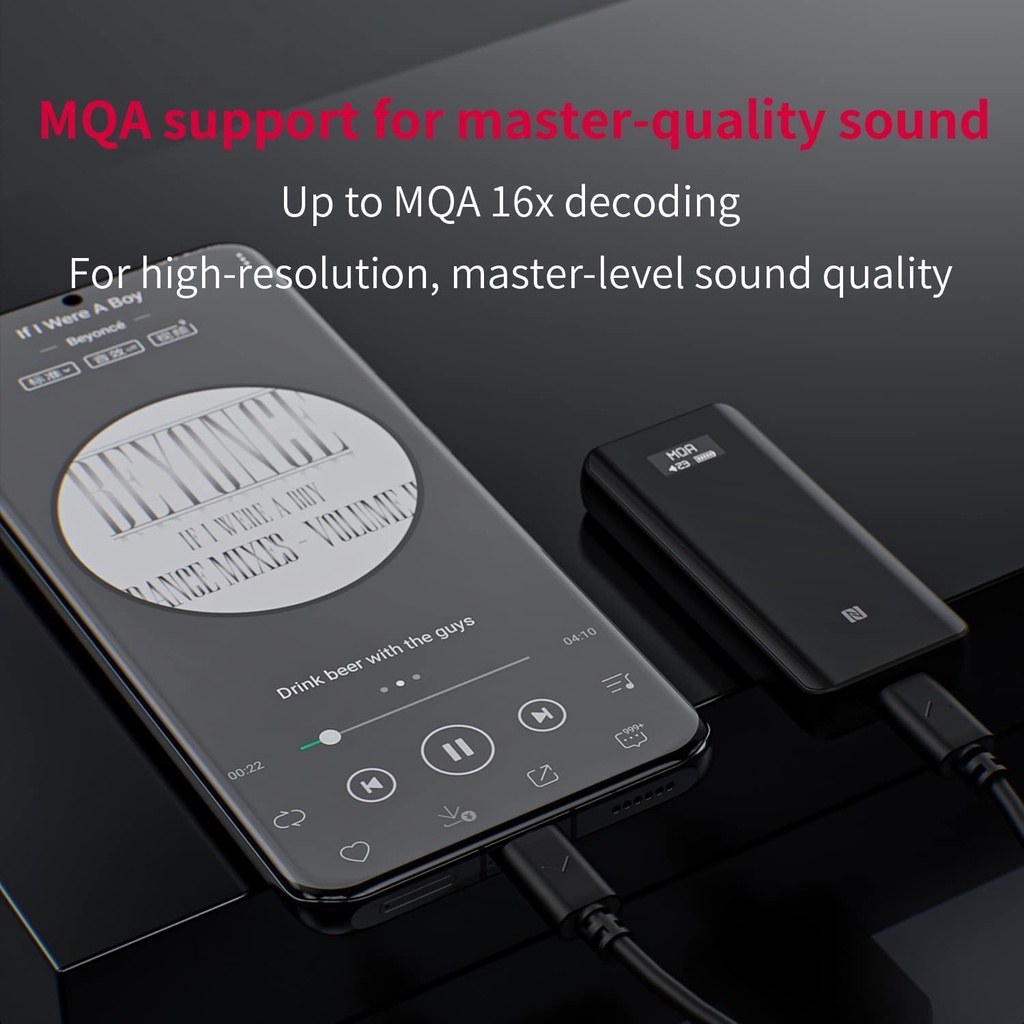

◉ MQA Support for master quality sound
◉ FPGA clock management, dual independant crystal socillators
◉ 2 microphones with cVc 8.0 noise cancellation
◉ Bluetooth 5.0 with full format support
◉ USB DAC supporting up to 384kHz/DSD256 native
◉ Double-sided 2.5D glass with OLED display
◉ Intelligent control with FiiO Music app
◉ One-touch NFC pairing

SPECIFICATIONS
•Version: Bluetooth 5.0
•Volume Adjustment: Independent adjustment separating from cellphone's volume
•Supported Audio Codecs:
SBC, AAC, aptX, aptX Low Latency, aptX HD, LDAC
•Bluetooth Chip : CSR8675
•DAC Chip: ES9219C*2
•USB DAC: Xmos XUF208
•Dedicated Pairing/ Play Button: Yes
•Independent Volume Button:
Yes
•Transmission Distance: 10m
•Display Screen: Yes
•Display Contents:
1. Display the Bluetooth Format, Battery, Volume, Charge status, Call alert, Sample rate (USB DAC)
2. Menu settings: Filter, EQ, Brightness, Charge Switch, Gain In-vehicle mode, USB Driver Free mode
•Gain setting: H/L
•Output Power:
*3.5mm output ≥ 80mW+80mW
*2.5mm balanced output ≥ 240mW+240mW (32Ohms)
•SNR :
*3.5mm output: -118dB
*2.5mm balanced output: -122dB (A-weighted)
•Noise floor:
*3.5mm output: ≤2uV
*2.5mm balanced output: ≤2.2uV (A-weighted)
•THD+N:
*3.5mm output: ≤0.004%
*2.5mm balanced output: ≤0.002% (LDAC 1kHz/32Ohms)
•Separation:
*3.5mm output: 79dB
*2.5mm balanced output: 117dB(1kHz/32Ohms)
•Hands-free call/Mic: Supported
Call up Siri in iOS Supported
In-Line Remote Control CTIA Support
•NFC : Supported

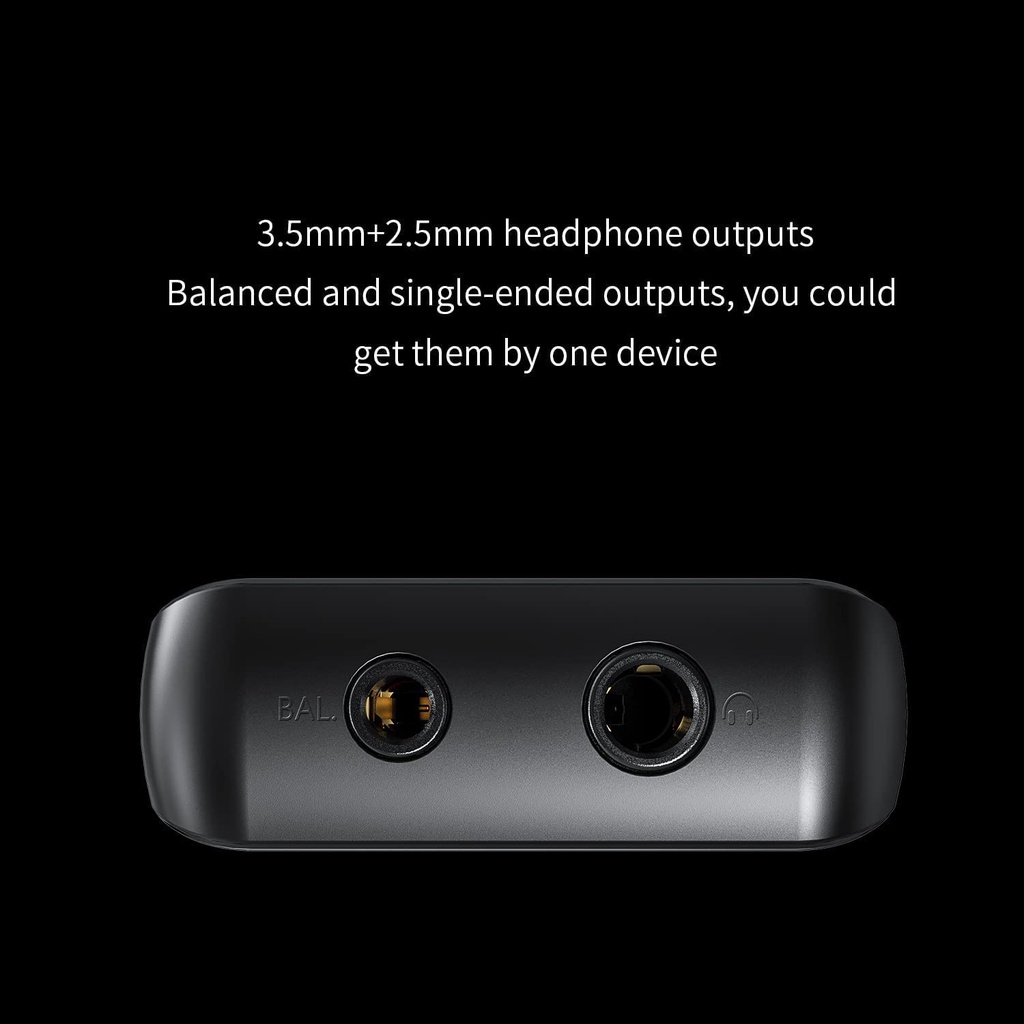

•Headphone Output:
3.5mm PO + 2.5mm balanced
•USB Port : Type C/charge
•Battery Capacity: 550mAH
•Battery Life:
*3.5mm headphone output about 9h
*2.5mm balanced output about 7h(AAC)
•Charging Time: About 1.5h
•Dimensions : 72x32x11.1mm (excl. back clip)
•Weight : 43.7g
