Detail Figaro TGS2611 TGS-2611 TGS 2611 natural gas methane gas sensor module
Product Name: TGS2611 gas sensor module ( natural gas, methane , etc. with high sensitivity )Technical parameters:
1, the heating voltage : 5 0.2V (AC · DC)
2. Working current : <60mA
3, the circuit voltage : DC5V
4. Load Resistance: adjustable resistance
5 , detection concentration range : 500-10000ppm
6 , the full warm-up time : 7 days for the first time electricity ( usually 3-5 minutes )
7. Sensitivity : 0.6-RS rate of change
8. Response time : 90S ( preheat 3-5 minutes )
9 , Response time : 30S
10. Component Power : 0.5W
11 , the working temperature : -10 ~ 50 ( nominal temperature 20 )
12 , Operating Humidity : 5-95% RH ( nominal humidity 60% RH)
13. Life: 2-3 years
14 , size : 35mm × 21mm × 15mm
15. Weight Size : 5g

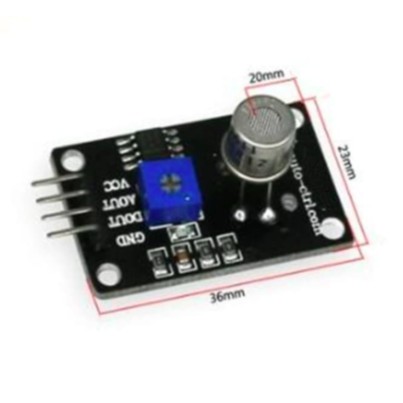

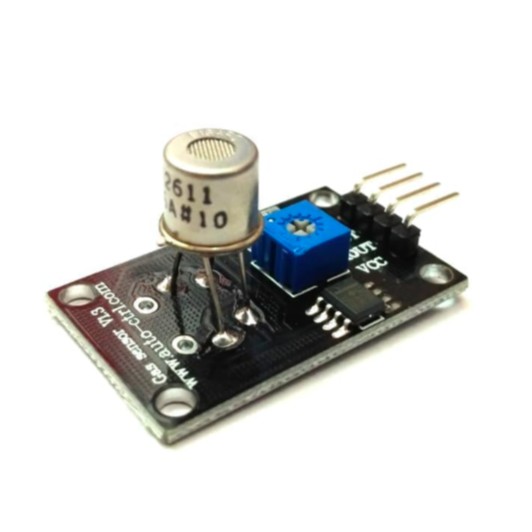

Gambar produk
