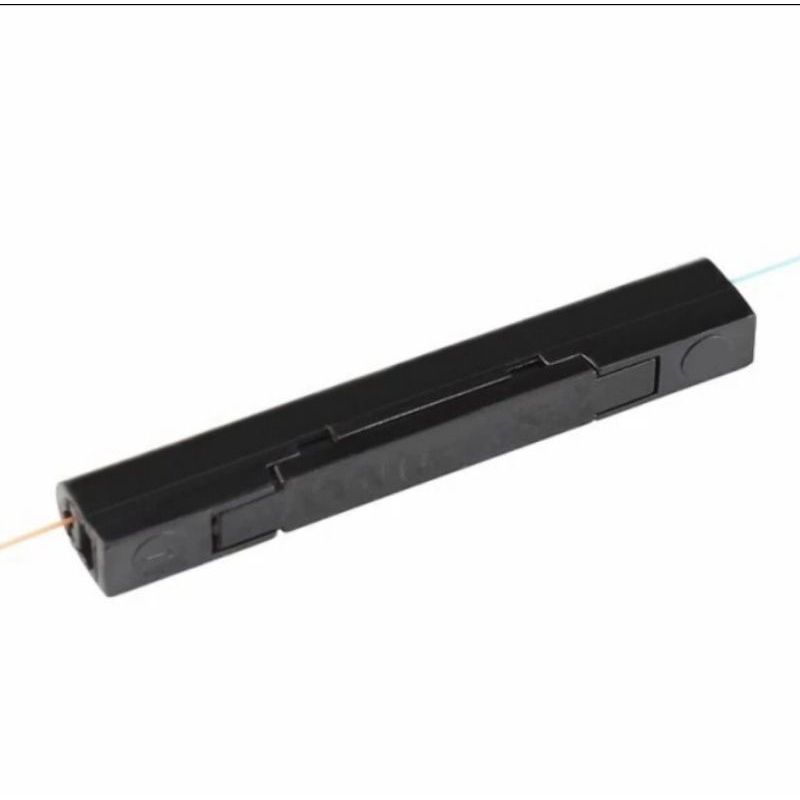

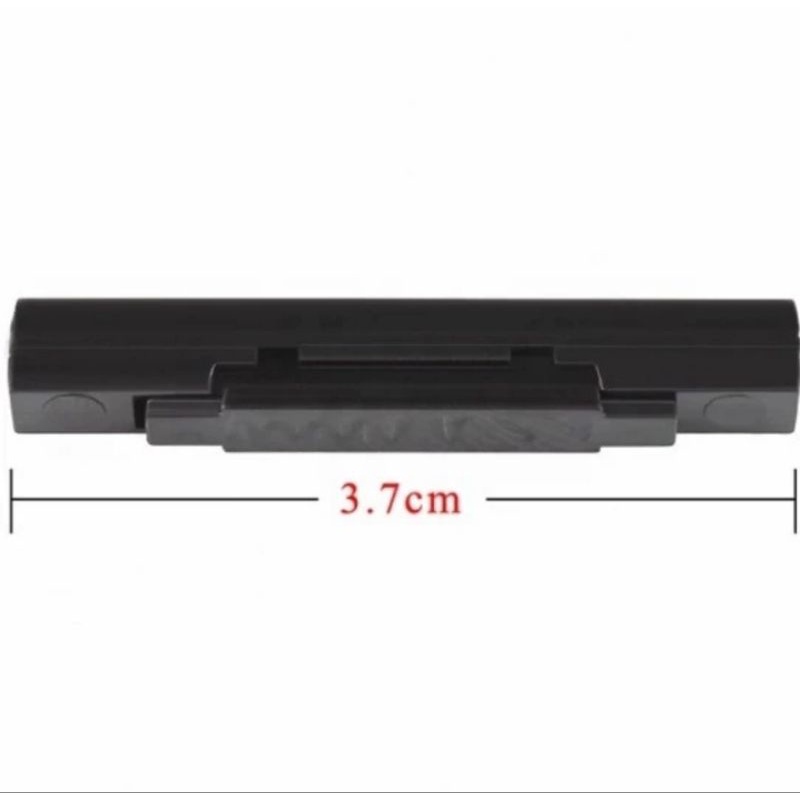

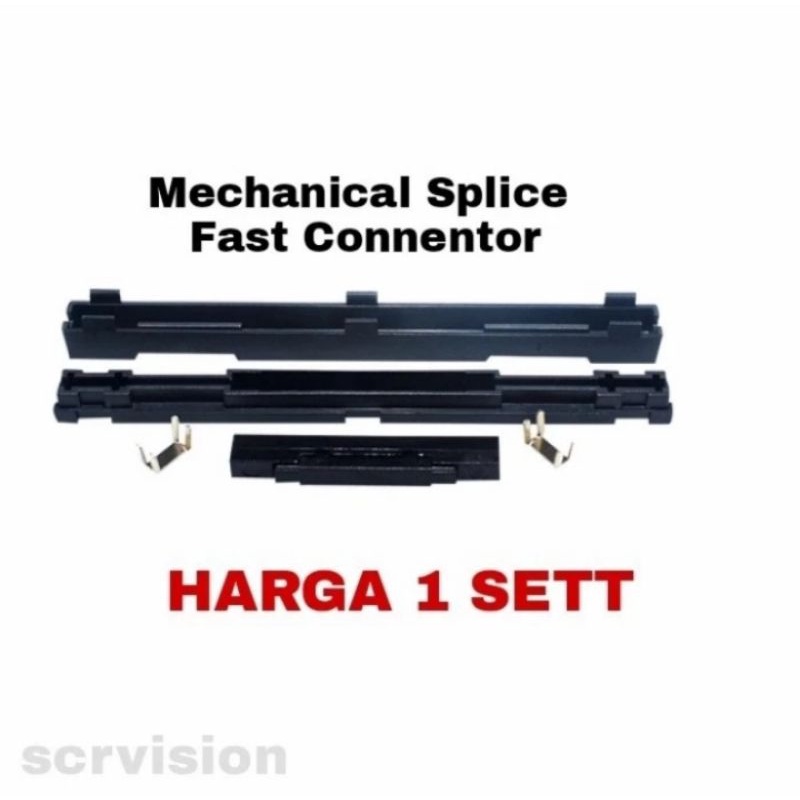

Detail Fiberr Optic Mechanical Splice FTTH Fast Conector Quick Conector

Optical fast connector is a kind of field-installable connector, which does not require polishing and adhesive. It can be used for splitter termination, optical panel box termination and direct access of ONU equipments, realize all-round coverage of applications in occasions of FTTX.

Feature:
Factory-installed fiber stub
No epoxy or polishing required
Quick and easy fiber termination in the field
Eliminates cable excess length and pigtail splice storage
Cost effective

SPEK:
Applicable for:3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable
Optical fiber diameter:φ125um (657A&657B)
Tight buffer diameter:φ250um
Fiber mode:Single mode
Operation time:About 10s (exclude fiber cut)
Insert loss:<0.1dB
Return loss:<-40
Fastening strength of naked fiber:≥ 5N
Tight clamping force cladding:≥ 8N
Tensile strength :≥ 50N
Using temperature:-45°C~+80°C

Application:
Patch panels
Distribution frames
Maintenance or emergency restoration of fiber networks
FTTH Outlets
Connection at the desk for LAN environments
