Fiber Optik Slitter Tube loose Tube FTTH Pemotong Kabel fo (Kecil)

Detail Fiber Optik Slitter Tube loose Tube FTTH Pemotong Kabel fo (Kecil)

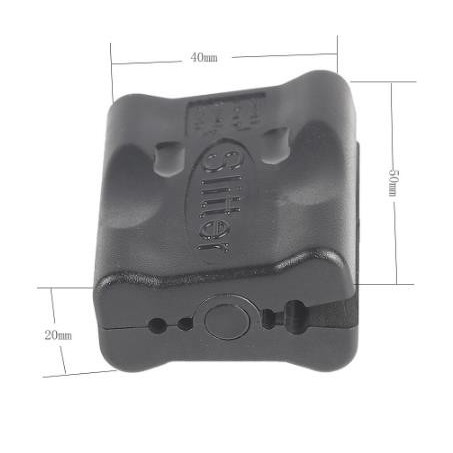

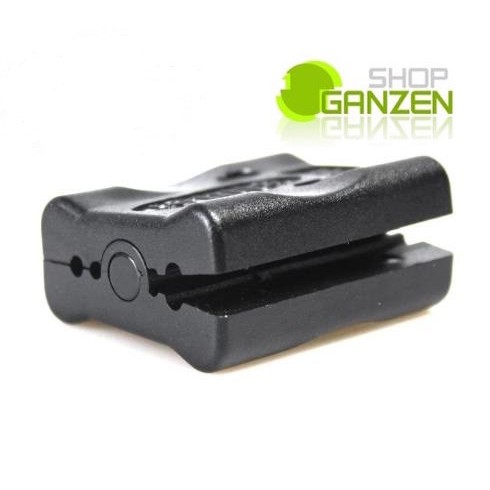

Mid Span Cable Jacket Slitter/Loose Tube/Fiber Optic Buffer Tube Cable Stripper
Features:

100% brand new and high quality
Product Description:Loose tube cable longitudinal opening knife blade superalloys using specially made, slitter knife. There are four sizes of stripping the outer diameter. Beam tube longitudinal stripping for outdoor fiber optic cable cutover time. Open center beam tube outer diameter of the four options open to the beam pipe opening and down both sides, easy to draw the fiber.

Instructions:
According to the optical fiber by stripping loose plastic condom diameter, wire stripper in the correct selection of a certain diameter range of the circular groove. The loose condom into a round plastic tank, so the tank head embedded in the plastic sleeve, closed and clamped two semi-circular groove along the plastic sleeve, pulling the blade, achieve condom plastic optical fiber loose line stripping.
Uses and Features:
Online stripping plastic optical fiber loose condomStripping pine diameter plastic condom into a series, a wide range ofStrippers lightweight, compactProduct design is simple yet practical, simple, convenient and labor-savingSuperalloy blades using specially made slitter knifeSingle beam tube cutting loose tube outer diameter: 1.5 ~ 1.9 mm, 2.0 ~ 2.4mm, 2.5 ~ 2.9mm, 3.0 ~ 3.3mmRibbon beam pipe cutter, with five guide grooves of different sizes and ten slitter blades can be 4.5mm ~ 11mm diameter fiber bundle tube longitudinal stripping.

Cable can be processed:
a.( 1.5~ 1.9mm);
b.( 2.0~ 2.4mm);
c.( 2.5~ 2.9mm);
d.( 3.0~ 3.3mm

Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
