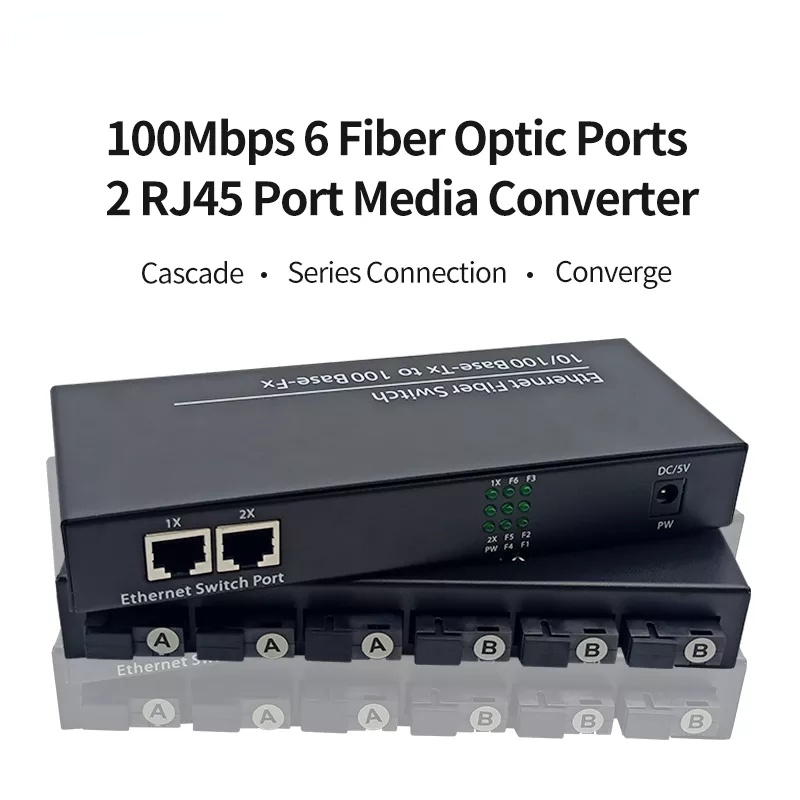

Fiber Optical Transceiver Single Mode 100M Ethernet Fiber Switch 6 Fiber Optic Port 2 RJ45 Port

Detail Fiber Optical Transceiver Single Mode 100M Ethernet Fiber Switch 6 Fiber Optic Port 2 RJ45 Port

Main feature:
1.Support switch between 10/100Base-TX and 100Base-FX
2.6*155Mbps full duplex fiber port and 2*100M Ethernet port with auto-negotiation function
3. Support 100M, MDI/MDIX and half/full-duplex speed with auto-negotiation function
4. Each port has a complete LED Indicator light
5. Support single mode single fiber, single mode double fiber, multi-mode double fiber and SFP slot
6. Support IEEE802.1d Spanning Tree
7. Support high performance QoS function on every port
8. Support 5V . voltage input
9. Support IEEE 802.3x flow control and back pressure control
10. No configuration required and will run as soon as you turn it on
11. Low power consumption chip with built in heat sink to ensure long time efficient operation

Specification:
- Standard
- IEEE802.3 10Base-T
- IEEE802.3u 100Base-TX / FX
- IEEE802.3x Flow control
- IEEE802.1p QoS
- IEEE802.1d Spanning Tree
- Ethernet port

Connector: RJ45
- Distance: 100m
- UTP type: UTP-5E or higher level

Fiber Port
- Connector: SC / FC / ST / SFP slot
- Data Rate: 155M or 1.25Gbps
- Optical Wavelength: 850nm / 1310nm / 1490nm / 1550nm
- Distance: 550m120km

Performance
- Processing Type: Save and Forward
- MAC Table Size: 4K / 6K / 8K

- Jumbo Pack: 1518 bytes
- Back bandwidth: 3.8G / 5.6G / 7.2G
- Time Delay: 150 seconds

Power
- Power type: external power supply
- Input Voltage: AC100V240V 50/60Hz
- Connector: DC socket
- Working Voltage: 12V
- Power Consumption: 2.2W3.5W

Transmission Distance
- Twisted Pair: 100m (CAT5e, CAT6 cable)
- Muti-mode: 2 km
- Single mode: 3/20/40/60/80/100km

Environment
- Storage Temperature: -4070
- Operating Temperature: -1055
- Relative Humidity: 5-90% (no condensation)
