Fiber optical rj45 media converter Netlink Gigabit ethernet 10/100/1000 htb-gs-03 A/B set - Konverter FO to lan

Detail Fiber optical rj45 media converter Netlink Gigabit ethernet 10/100/1000 htb-gs-03 A/B set - Konverter FO to lan

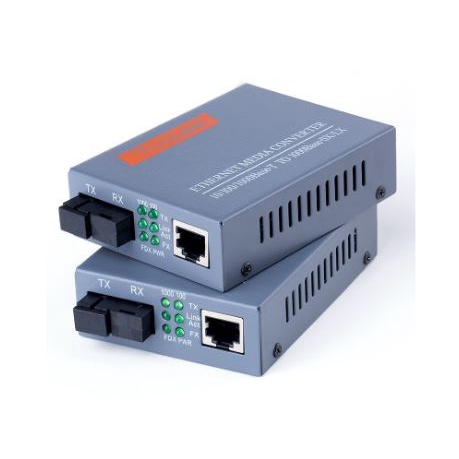

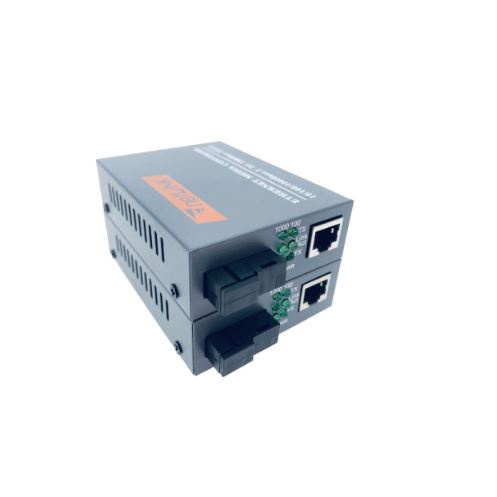

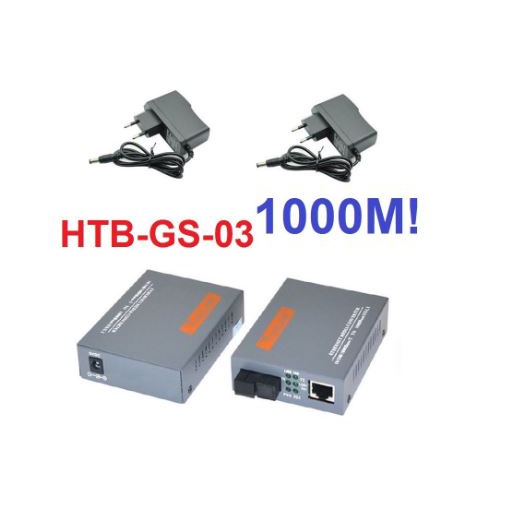

HTB-GS-03 A+B Fiber Optic Device Media Converter Optical Netlink HTBGS03 1000Mbps Single Mode 25km

Features:

Provide one SC fiber connector and one UTP connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/IEEE802.3u 100Base-FX,IEEE802.3z 1000Base-FX Standard.
Auto-detection of half/full duplex transfer mode for Tx port
Auto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for Tx port
Provide switch configuration of half/full duplex transfer mode for Fx port
Extend fiber distance up to 20km for single-mode fiber
6 LED display for Power, FDX/Col, FX (Link/Act), TX (Link/Act), FX 1000, TX 100
Easy-to-view LED indicators provides status to easily monitor network activity

Specifications:

Standard: IEEE802.3 10BASE-T Ethernet, IEEE802.3u 100BASE-TX/FX Fast-Ethernet , IEEE802.3z/ab 1000BASE-FX/TX 100M-Ethernet, IEEE802.3x
RJ-45 Port : Auto-MDI/MDIX
Fiber Type: SC
Wavelength: 1310/1550nm
Send-Power: 20dBm(min.) 0dBm(max.)
Frequency Offset : ±125,000bps (or ± 100ppm)
MTU: More than 9036 bytes

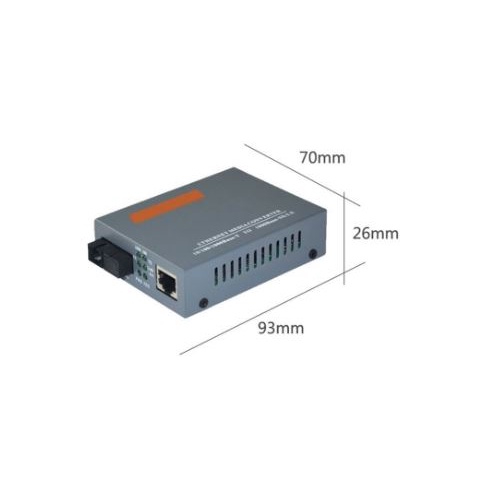

Dimensions(WxDxH): 94x71x27mm (External power)
Input Voltage: DC5V2A ( External power input : AC100V-AC240V/50-60HZ )
OperationTemperature: 0°C~70°C
Store Temperature: -40°C~85°C
Humidity: 5%~95% non-condensing

Isi dalam paket :
- 1 unit transceiver ( side A )
- 1 unit receiver ( side B )

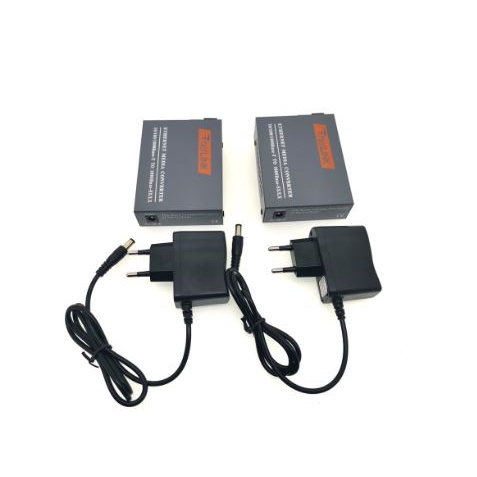

- 2 pcs adaptor 5V (Colokan Standart Indonesia)
- Box dan Manual

Ready Stock !

Gambar produk
