Fiber optical media lan converter extender Netlink 10/100 A-B HTB-3100 Netlink Media Converter HTB

Detail Fiber optical media lan converter extender Netlink 10/100 A-B HTB-3100 Netlink Media Converter HTB

HTB-3100 25km single fiber mode transceiver Optical Media Converter

harga untuk 1pasang=A + B dan adapter.

Feature
The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.
UTP port supports MDI / MDI-X auto crossover
Supporting flow control
Supporting 1552 Byte packet
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
Design of internal or external power supply for selection by users

Specification
Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
MAC address table: 1K
Connector:
UTP: RJ-45 10/100Mbps;
Fiber: SC 100Mbps
Cable:
UTP: Cat. 5 UTP (the max distance up to 100m)
Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125m(the max distance up to 90km)
Flow Control
Full Duplex: IEEE802.3x
Half Duplex: Backpressure
LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
Ambient temperature0 50
Storage temperature-20 +70
Humidity: 5% 90%

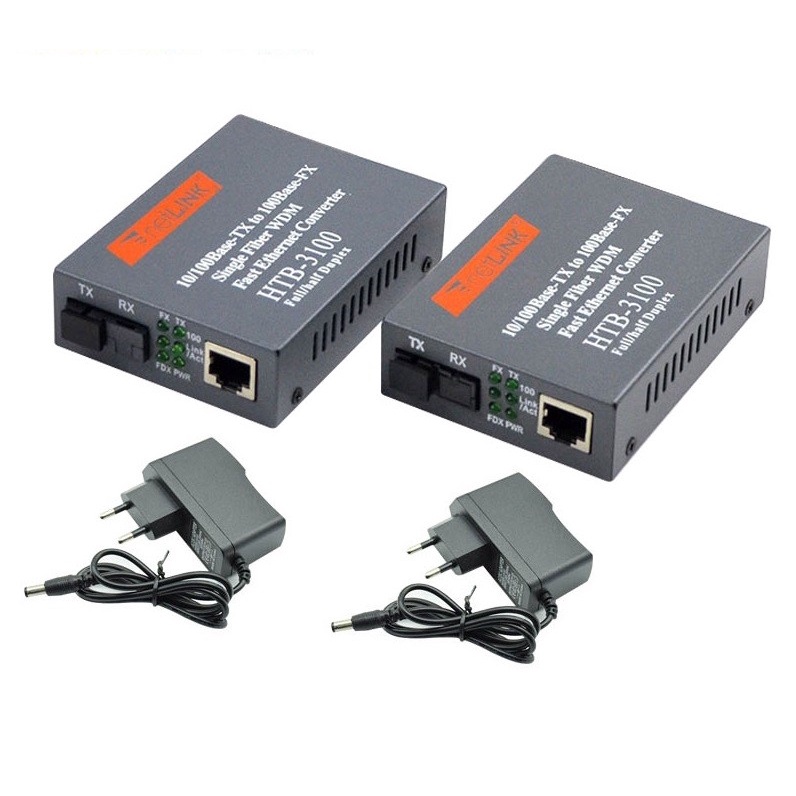

Package Including:
2pcs HTB-3100A dan HTB-3100B
2pcs High Qulity power adapter

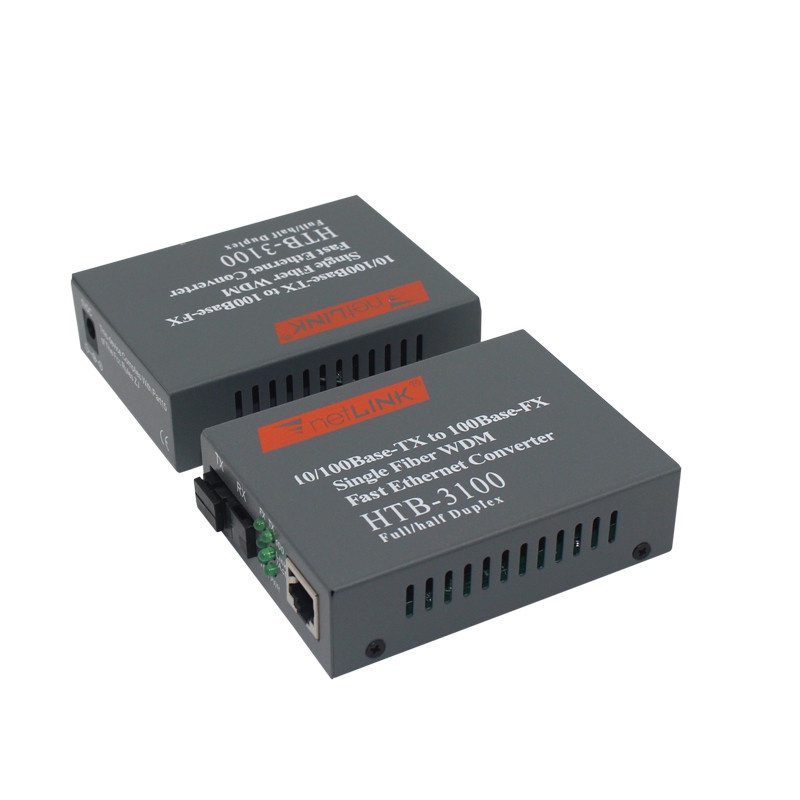

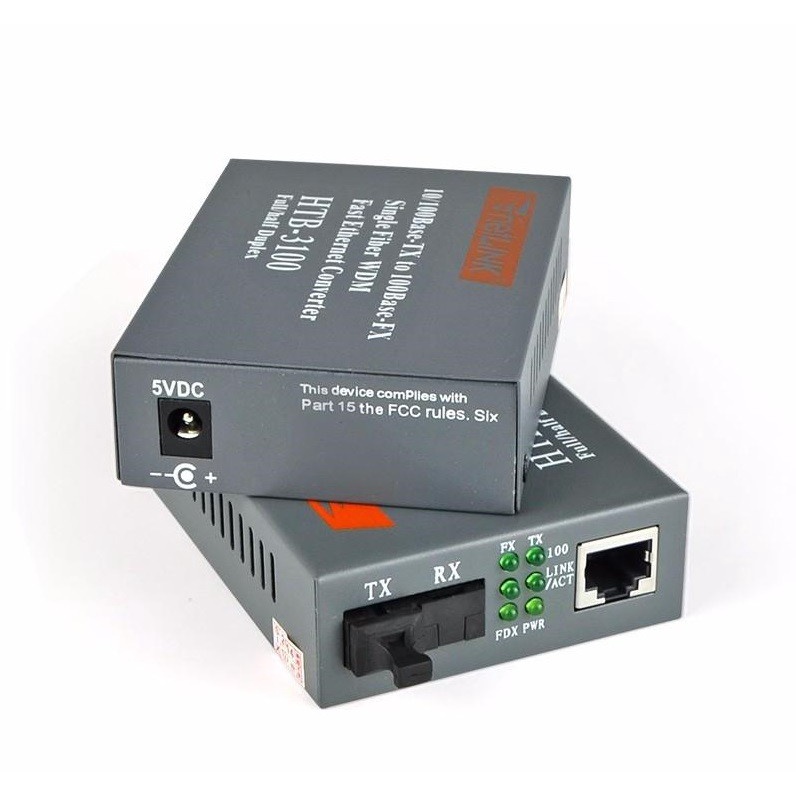

Gambar produk
