FIBER OPTIC VISUAL FAULT LOCATOR DETECTOR NF-903

Detail FIBER OPTIC VISUAL FAULT LOCATOR DETECTOR NF-903

JUAL : FIBER FAULT DETECTOR NF-903 - 20mW

FO VISUAL FAULT LOCATOR NF-903 uses the DFB-LD (distributed feedback laser) as the emitting component. It specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. It finds breakpoints, poor connections, bending or cracking in fiber optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fiber identification.

FeatureS :

Locating the fault of fiber breakage, winding and so on.
End-to-end fiber recognition.
The optimization of the machine connection point.
drop-resistant and dust-proof design of laser head
Laser case ground design prevents ESD damage
Portable and rugged
Easy to use
Meets CE standards

SpecificationS :

Brand : Noyafa
Model : NF-903
Wavelength (nm) : 65010nm
Fiber Type : Single Mode / Multi Mode
Working mode : Continuous or Pulse mode
Connector : 2.5mm Universal
Emitting Energy : 20mW (20 Km)
Working temp : -20 ~ +60 not dewing)
Storage Temp : -40 ~ +85
Power Supply : 2 pcs 1.5V AA battery
weight: 160 grams
Dimension : 25 x 25 x 200 mm

Applications :

Maintenance in telecom , CATV
Test Lab of optical fibers
fiber routing and continuity checking in optical networks.
Other fiber optic measurements

Isi paket :

1 x FIBER FAULT DETECTOR NF-903 - 20mW
1 X Manual

Berat sebelum di bungkus menjadi paket : 260 gram

Gambar Barang, Spesifikasi Barang, Ketersediaan Barang dan Harga Jual Barang bisa berubah sewaktu- waktu tanpa pemberitahuan.

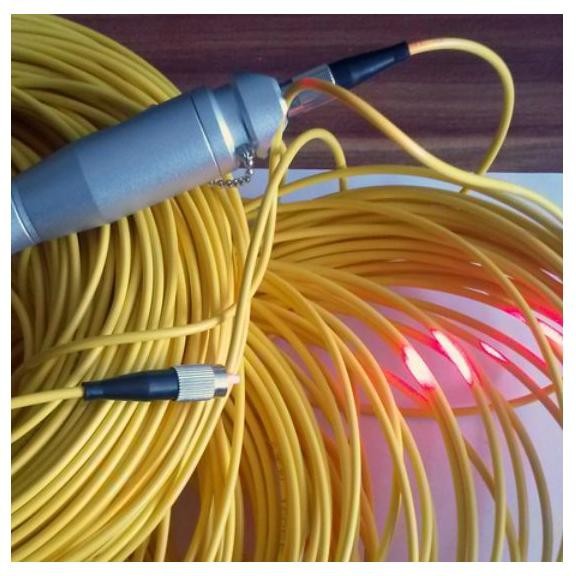

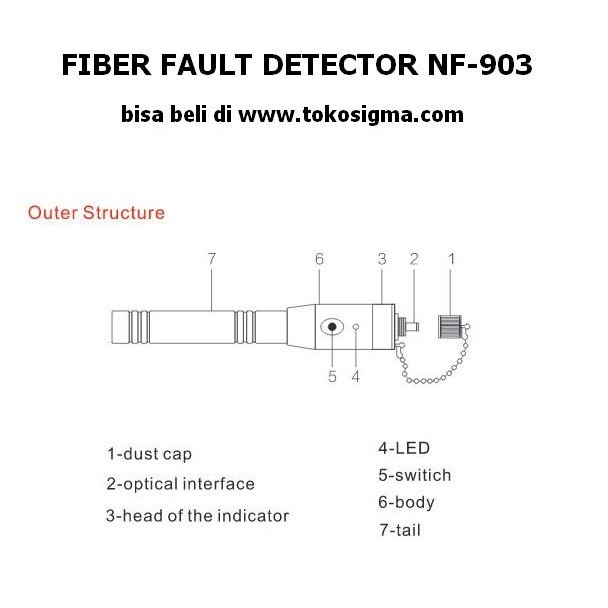

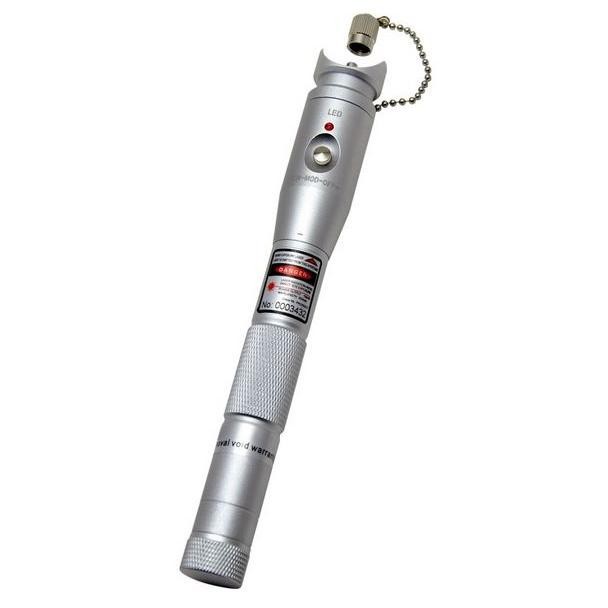

Gambar produk
