Detail Fiber Optic Tester / Optical Power Meter
This type of handheld optical power meter is compact and easy to use optical fiber equipment for optical fiber networks that can be used for absolute optical power measurement and for relative loss of measurement in optical fibers.This Optical power meter is easy to use OPM, power measurement range is - 70 ~ + 10 dBm, standard wavelength 850/950/1300/1310/1490/1550/1625 / 1650nm, OPM has auto-OFF and LCD functions.
Features :
Support 8 wavelength testing
Auto-OFF function
With backlight
Self calibration
48 hours super long standby time
Simple interface

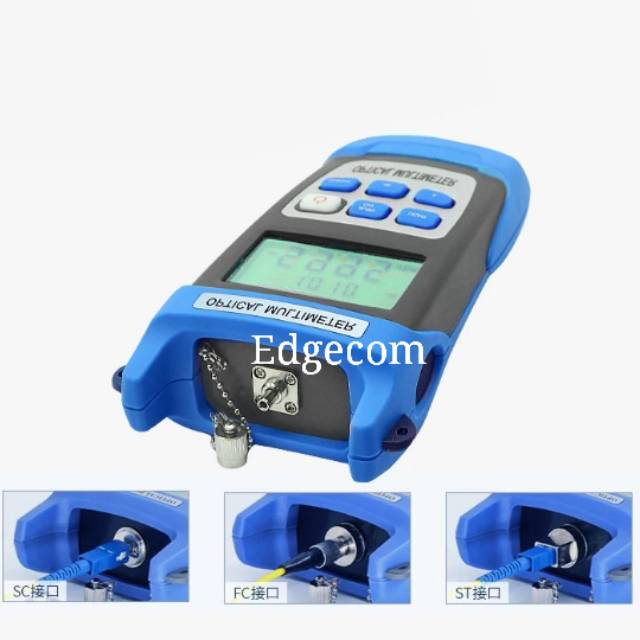

Support SC / FC interface
Specifications :
• Model: Optical power meter.
• Wavelength (nm): 800nm to 1700nm.
• Detector: InGaAs.
• Measuring range (dBm): 70 ~ + 10 / - 50 ~26
• Uncertainty: 5%
• Calibrated wavelength (nm) : 850,980, 1300,1310, 1490,1550, 1625,1650.
• Resolution (dB): Linear 0.1% Linear 0.01dBm
• Optical connector: FC / SC / FT.
• Power Supply: 3pcs AA batteries 1.5 V
• Battery operating time: 48 hours
