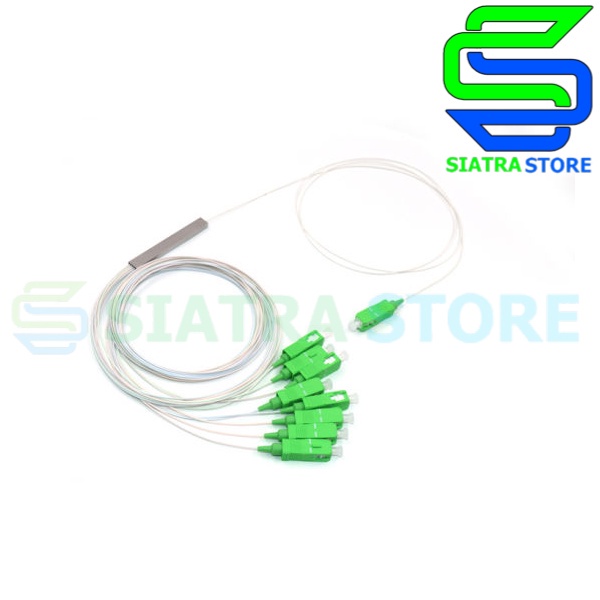

Fiber Optic Passive Splitter 1:8 SC/APC | Splitter FO SC/APC 1:8

Detail Fiber Optic Passive Splitter 1:8 SC/APC | Splitter FO SC/APC 1:8

Deskripsi : TSC-ST-SC/A PLC Series
Fiber Splitter PLC Steel Tube 1:8 SC/APC Ratio 50:50

Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain

Tidak Garansi
Harga 1 pcs

Product Number : TSC-ST8C-SC/A-PLC
Type : Steel Tube Splitter
Connector : 1:8
Connector Type : SC/APC
Ratio : 50:50
Size: 140x165mm
1X8 Single Mode PLC Splitter
Operating Wavelength(nm) : 1310/1550
Input Fiber Length(m) : -+ 1.0
Output Fiber Length(m) : -+ 1.0
Cable(mm) : 0.9

Application:
Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON)
Local area networks (LAN)
Cable television (CATV)
Test equipment

Features
*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used

Applications
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)

Specification:

Parameters 12 14 18 116 132 164
Operating Wavelength (nm) 12601650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-4085 )(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature () -4085
Storage Temperature () -4085
Package Steel Tube or ABS

Gambar produk
