FIBER OPTIC MECHANICAL SPLICE FTTH FAST CONNETOR

Elektronik > Elektronik Lainnya > FIBER OPTIC MECHANICAL SPLICE FTTH FAST CONNETOR
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:berkahjayakabelLihat semua produk Elektronik oleh berkahjayakabel
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail FIBER OPTIC MECHANICAL SPLICE FTTH FAST CONNETOR

Kondisi: Baru
Berat Satuan: 25 g
Kategori: Optical Power Meter
Etalase: Semua Etalase
Description:
Optical fast connector is a kind of field-installable connector, which does not require polishing and adhesive. It can be used for splitter termination, optical panel box termination and direct access of ONU equipments, realize all-round coverage of applications in occasions of FTTX.

Feature:
Factory-installed fiber stub
No epoxy or polishing required
Quick and easy fiber termination in the field
Eliminates cable excess length and pigtail splice storage
Cost effective

SPEK:
Applicable for:3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable
Optical fiber diameter:φ125um (657A&657B)
Tight buffer diameter:φ250um
Fiber mode:Single mode
Operation time:About 10s (exclude fiber cut)
Insert loss:<0.1dB
Return loss:<-40
Fastening strength of naked fiber:≥ 5N
Tight clamping force cladding:≥ 8N
Tensile strength :≥ 50N
Using temperature:-45°C~+80°C

Application:
Patch panels
Distribution frames
Maintenance or emergency restoration of fiber networks
FTTH Outlets
Connection at the desk for LAN environments

Gambar produk

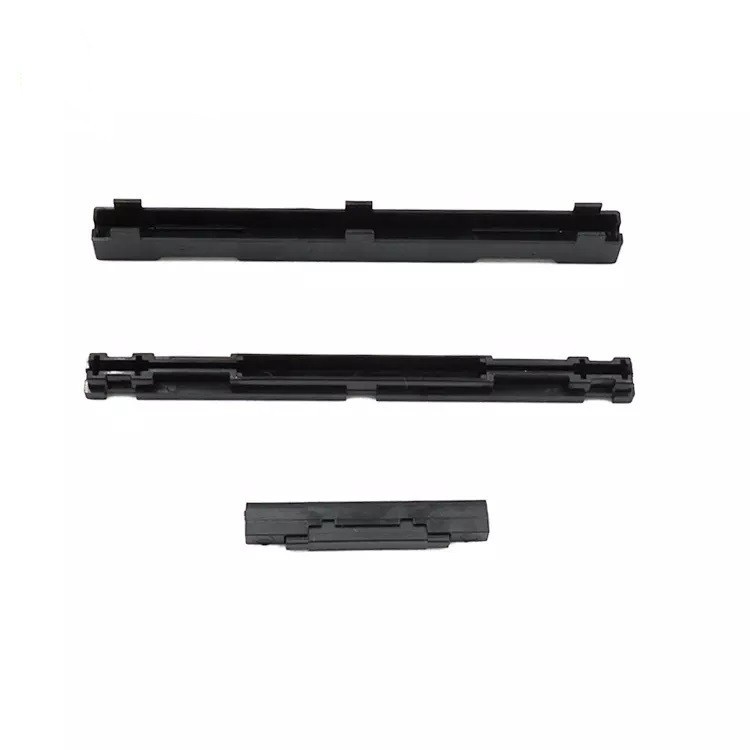

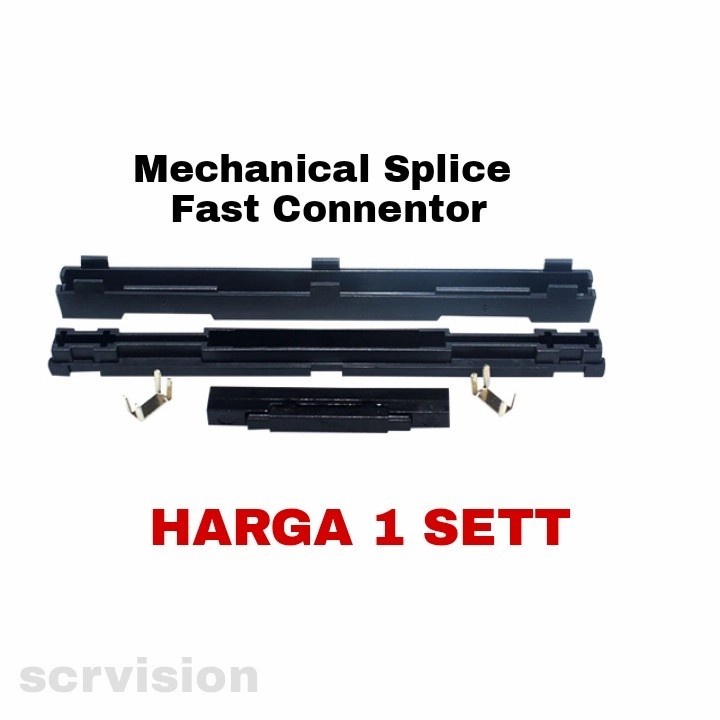

FIBER OPTIC MECHANICAL SPLICE FTTH FAST CONNETOR
FIBER OPTIC MECHANICAL SPLICE FTTH FAST CONNETOR
FIBER OPTIC MECHANICAL SPLICE FTTH FAST CONNETOR
FIBER OPTIC MECHANICAL SPLICE FTTH FAST CONNETOR
