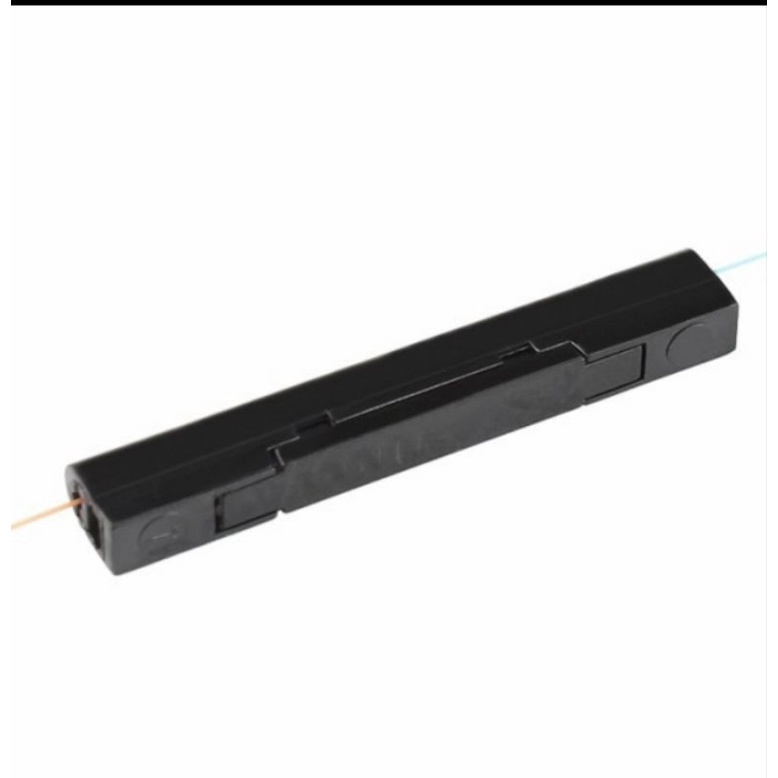

Detail Fiber Optic Mechanical Splice FTTH Fast Conector Quick konector
Optical fast connector is a kind of field-installable connector, which does not require polishing and adhesive. It can be used for splitter termination, optical panel box termination and direct access of ONU equipments, realize all-round coverage of applications in occasions of FTTX.
Feature: Factory-installed fiber stub No epoxy or polishing required Quick and easy fiber termination in the field Eliminates cable excess length and pigtail splice storage Cost effective
SPEK: Applicable for:3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable Optical fiber diameter:φ125um (657A&657B) Tight buffer diameter:φ250um Fiber mode:Single mode Operation time:About 10s (exclude fiber cut) Insert loss:<0.1dB Return loss:<-40 Fastening strength of naked fiber:≥ 5N Tight clamping force cladding:≥ 8N Tensile strength :≥ 50N Using temperature:-45°C~+80°C
Application: Patch panels Distribution frames Maintenance or emergency restoration of fiber networks FTTH Outlets Connection at the desk for LAN environments
