FIBER OPTIC FTTH TOOLKIT / CATV FIBER OPTIC TOOL KIT

Detail FIBER OPTIC FTTH TOOLKIT / CATV FIBER OPTIC TOOL KIT

FTTH Tool Set Alat Kerja Fiber Optik VFL OPM Stripper Botol Dropcore Cleaver


support : SC/FC/ST connect

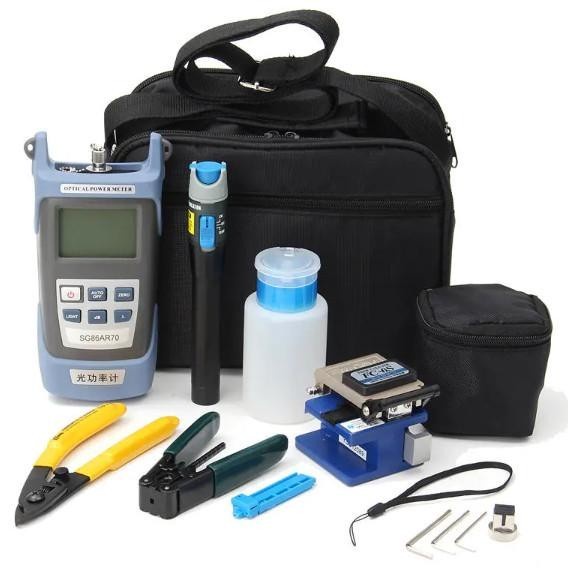

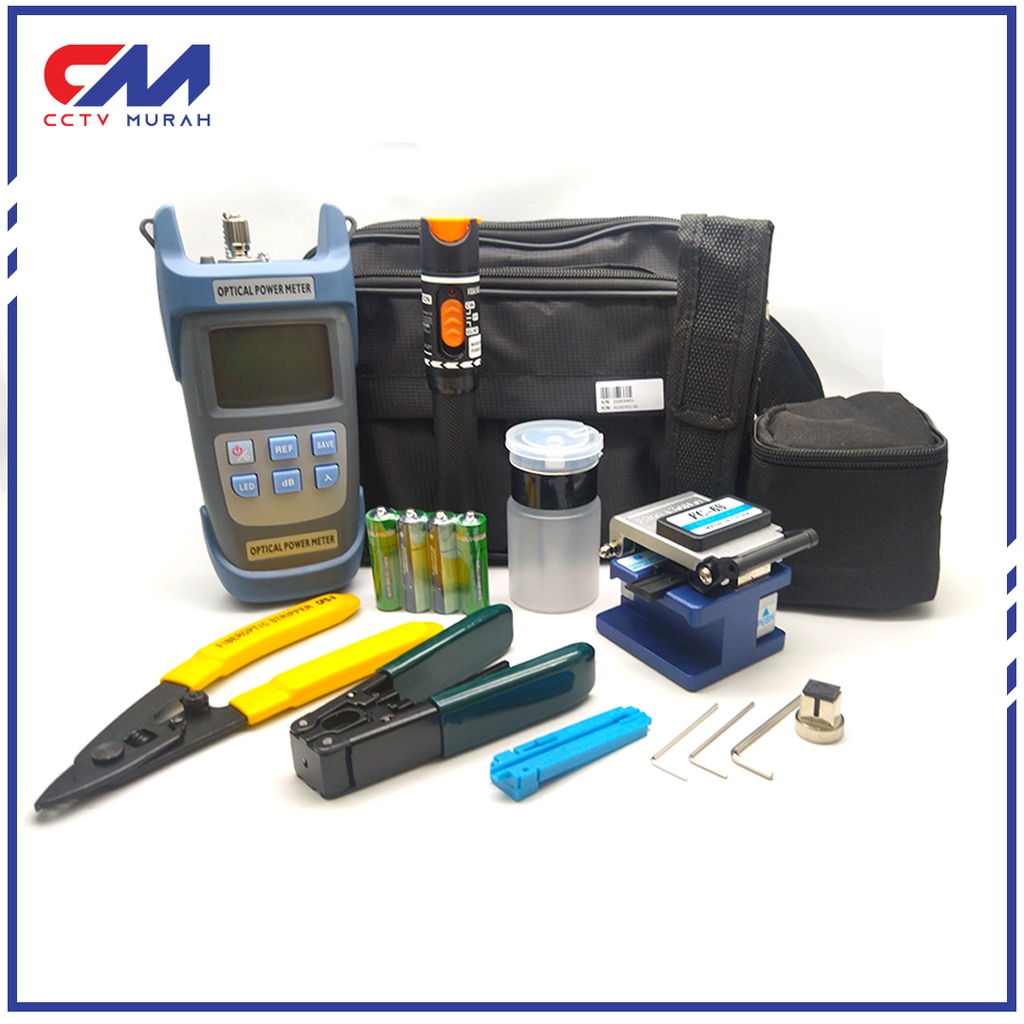

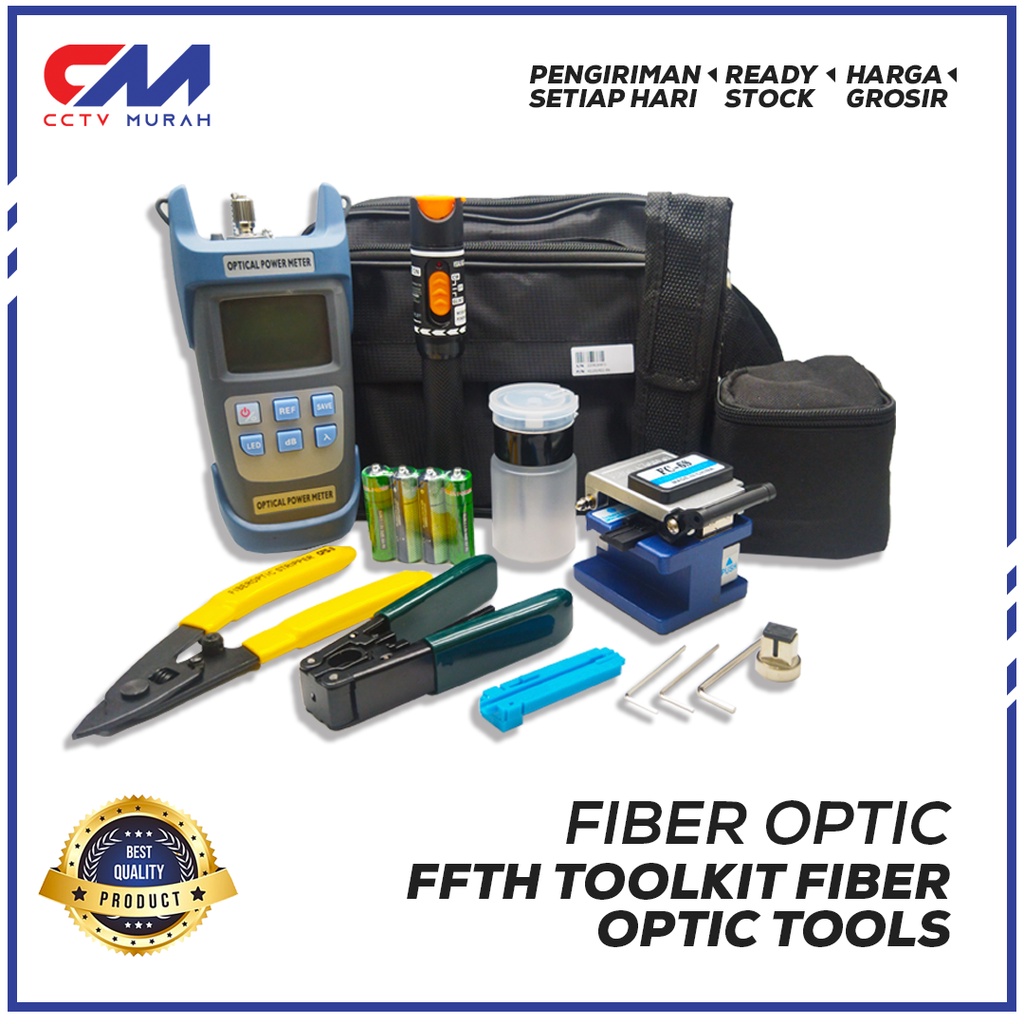

this tool kit includ : 1pcs optic power meter , 1pcs 5km visual locator
2 pcs fiber cut pliers . 1pcs FC-6s fiber cut device (with some screwdriver tools )
1pc 160ml bottol , 1pc SC adaptor , 5pcs battery
all the item just like picture showed

visual locator pen : 5KM
Size of fiber cutter:61*64*55mm
Suitable for bare fiber diameter: 125um
Applicable fiber core number: single core
Applicable fiber coating diameter: 0.25 & 0.9mm
Stripping length before fiber cutting: fiber cutting length +18mm or more
Optical fiber cutter length: 9-16mm (0.25mm) 10-16mm (0.9mm)
Cutting angle representative value: ≤ 0.5°

Tools Set Fiber Alat Kerja Siap Pakai :
barang lengkap
1 x FC-6S
1 x Allen minor knife inside
1 x Hexagon large spatula
1 x Cutter bag
1 x Optical power meter (OPM)
1 x The optical power adapter sc
1 x Senter 5MW
1 x AUA-1 pen ceramic tube 2
1 x Fixed-length device combo
1 x The guide bar
1 x Miller clamp
1 x Covered wire stripping device

Barang Ready..100% NEW Baru

Gambar produk
