Fiber Optic FTTH Tool Kit and Fiber FC-6S Cleaver Optical Power FTTH Toolset FIber Optik

Detail Fiber Optic FTTH Tool Kit and Fiber FC-6S Cleaver Optical Power FTTH Toolset FIber Optik

FTTH Fiber Optic Tool Kit Fiber Cleaver FC-6S Optical Power Meter Cable Wire Stripper Visual Fault Locator 5mW

Features:
1.The FTTH fiber optic tool Kits are contained in a bag with shoulder strap,easy to carry.
2.The optical power meter is used for continuous optical signal power measurement and optical fiber line breaking test.
3.This FC-6S optical fiber cleaver is very sharp and for 0.25 to 0.9mm coated single fiber.
4.The visual fault locator,pen type design,is used for fiber routing and continuity checking in optical networks.
5.This fiber optic stripper has ergonomically designed super comfort grips,providing you with added comfort and control.

Description:

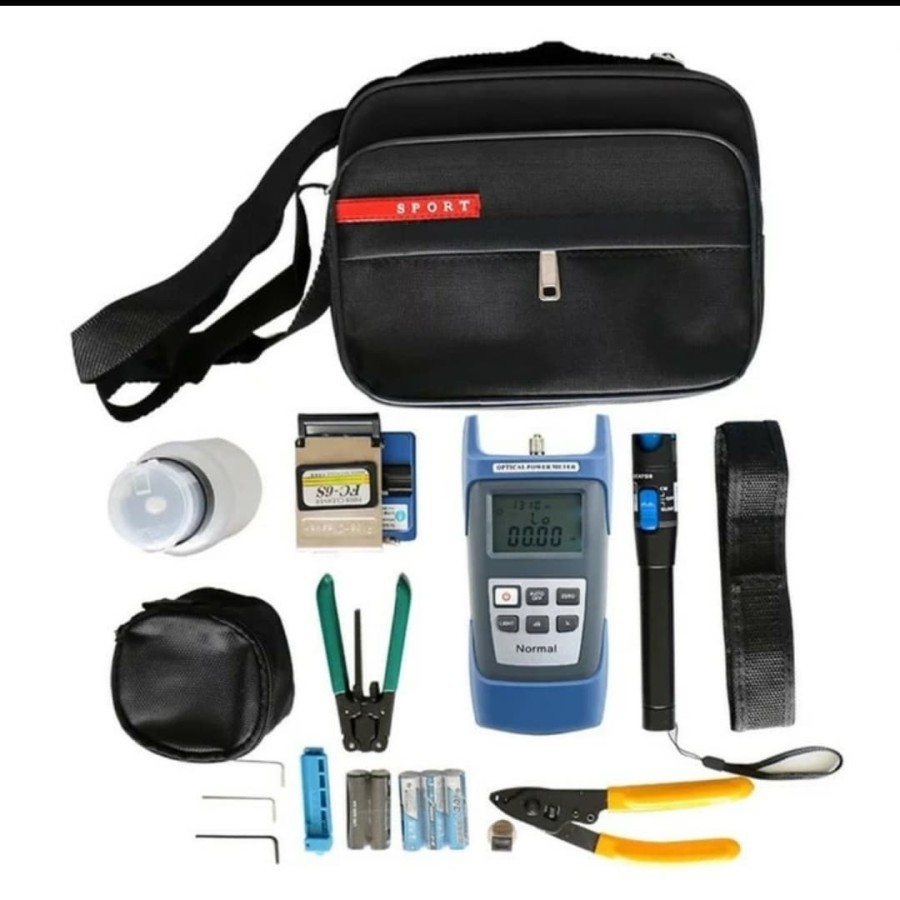

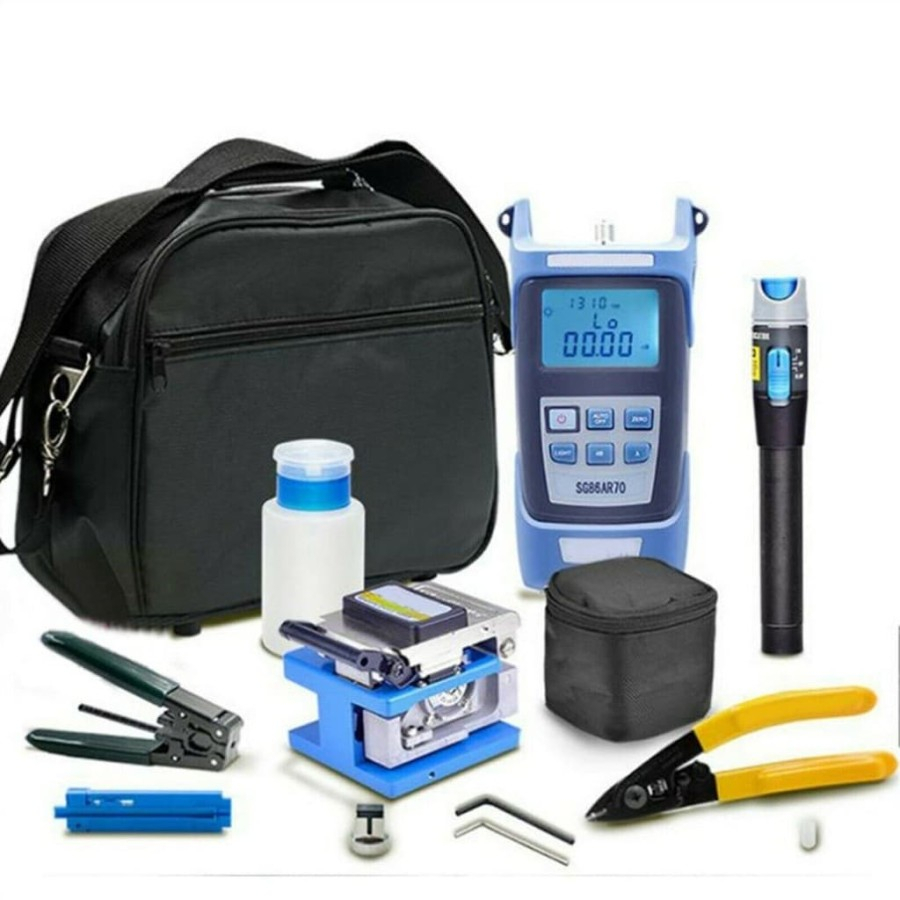

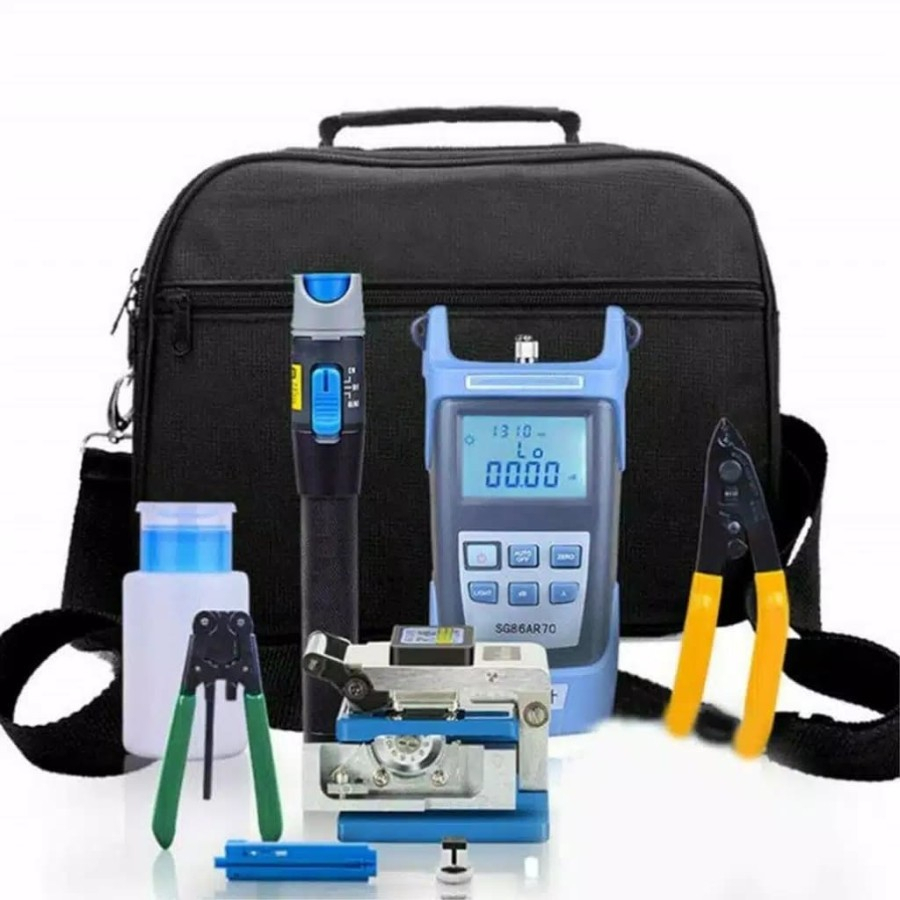

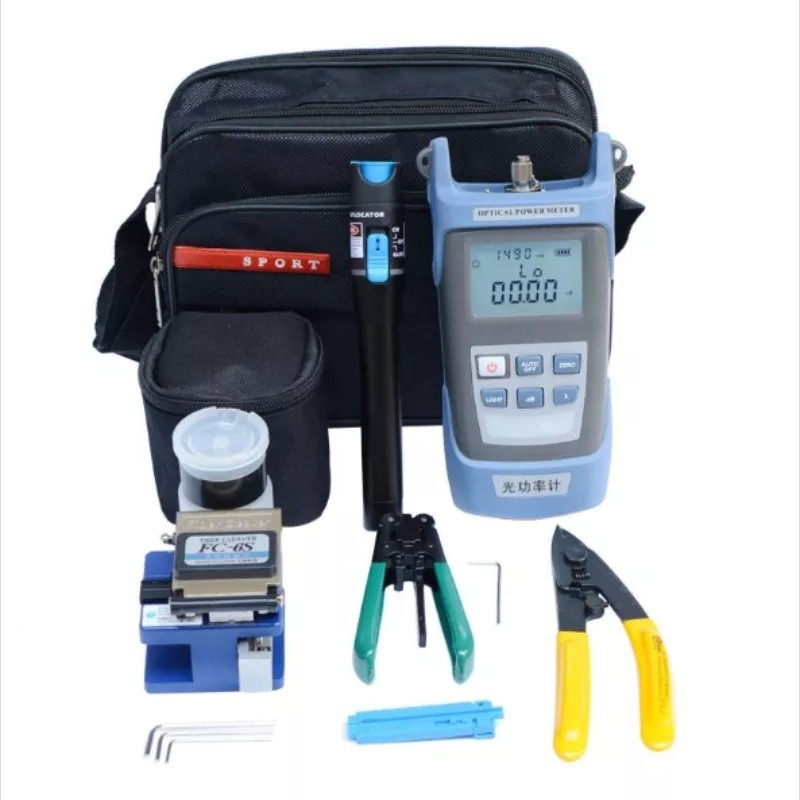

1.This FTTH fiber optic tool Kit mainly contain,optical power meter,fiber cleaver,cable stripper and visual fault locator,etc.
2.The optical power meter is used for continuous optical signal power measurement and optical fiber line breaking test.
3.This FC-6S optical fiber cleaver is available with a single fiber adapter for 0.25 to 0.9mm coated single fiber.

Specifications:
Optical Power Meter:
Wavelength(nm):(800nm to 1700nm )
Type of detector:InGaAs
Power measurement range:-70~+3 or -50~+20
Uncertainty:5%
Calibrated Wavelength(nm):850/1300/1310/1490/1550/1625
Display resolution:Linear indication:0.1% or logarithmic indication: 0.01dBm
Working wavelength of red light:650nm
Power supply:3 x 1.5V AA battery
Size:180 x 100 x 40mm
Weight:246g
Visual Fault Locator:
Maximum output:<1mW
Wavelength:630nm~670nm
Power supply:2 x 1.5V AA battery
Size:175 x 25 x 25mm
Weight:78g
Optical Fiber Cleaver:
Size:75 x 62 x 62mm

Package Information:
Package Size:24 x 18 x 14cm / 9.4 x 7.1 x 5.5in
Package Weight:1249g / 44.1oz

Package List:
1 x Optical Power Meter
1 x Visual Fault Locator 1mV
1 x Fiber Cleaver FC-6S
1 x Fiber Optic Stripper CFS-2
1 x FTTH Drop Cable Stripper
1 x Alcohol Bottle
1 Set Accessories
