Fiber optic Fast Connector SC UPC - Konektor FO FTTH optik SC/UPC

Detail Fiber optic Fast Connector SC UPC - Konektor FO FTTH optik SC/UPC

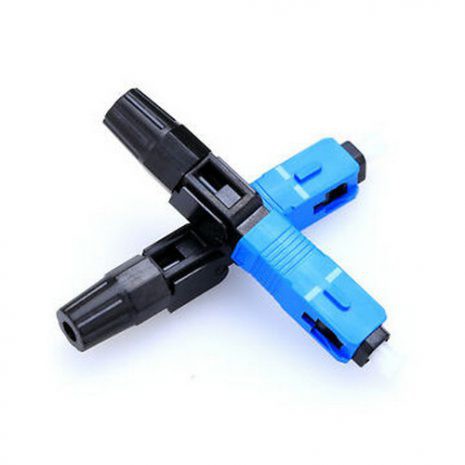

SC Optic Fiber Quick Cold Connector FTTH Single Mode SC UPC Fast Connector
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR

Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word

ITEM
Technical Parameters
Applicable for: Drop cable / Indoor cable, 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm, Drop Cable
Optical fiber diameter: SM(9/125), MM(50/125, 62.5/125), 125μm ( 657A & 657B )
Tight buffer diameter: 250μm
Fiber mode: Single mode
Operation time: About 100s(no fiber cut)
Insert loss: ≤ 0.3dB(1310nm & 1550nm)
Return loss: > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber: >5 N
Fastening strength of naked fiber holder: >10 N
Tensile strength: >50 N
Using temperature: -40~+75°C
On-line tensile strength (20 N): IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times): IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times): IL ≤ 0.

ready!!
