Fiber Cleaver ZimmLink High Precision ZAF-C09S Pemotong Fiber Optik

Detail Fiber Cleaver ZimmLink High Precision ZAF-C09S Pemotong Fiber Optik

Ready Fiber Cleaver ZimmLink ZAF-C09S Pemotong Fiber Optik

High Precision Optical Fiber Cleaver ZimmLink ZAF-C09S

#Distributor Resmi ZimmLink

Spesifikasi :
Product Category : Fiber Cleaver
Product Brand : Zimmlink
Product Model : ZAF-C095
Dimensi DxWxH : 76 x 65 x 61 mm
Weight : 275g
Cutting angel : About 0.5°
Cutting Leght : 9-16nm .∅0.25
Fiber Diameter : 125μm
Aplication Fiber type : 0.25 & 0.9mm
Blade Service time : About 36.000 Times

( A ). Features:
- Provides approximately 36,000 cleaves
- Compact body& light weight
- High Precision Cleaves
- 250um Coated or 900um Buffer fiber
- Singlemode or Multimode Use
- 12 Position Rotatable and Replicable Blade

( B ) Specifications:
~ Merek ZimmLink
~ Applicable fibers Singlemode or Multimode Use
~ Fiber Diameter 125um
~ Coating Diameter 250um ~ 900um
~ Typical Cleave Angle 0.5 Degrees
~ Cleave Length 9 - 16mm (Single Fiber - 0.25mm Coating)
~ 10 - 16mm (Single Fiber - 0.9mm Coating)
~ Blade Life Time 36,000 cleaves (3,000 per blade position)
~ Cleaver Dimensions 65 x 76 x 61mm

Isi Dalam Paket :
1. Unit Cleaver Zimmlink
2. Tempat Pembuangan Potongan Fiber
3. Kunci L
4. Storage Box
5. Kemasan Paket

Sebelum order sebaiknya chat terlebih dahulu untuk ketersediaan stock

Terimakasih , InsyaaAlloh Amanah
Happy Shopping

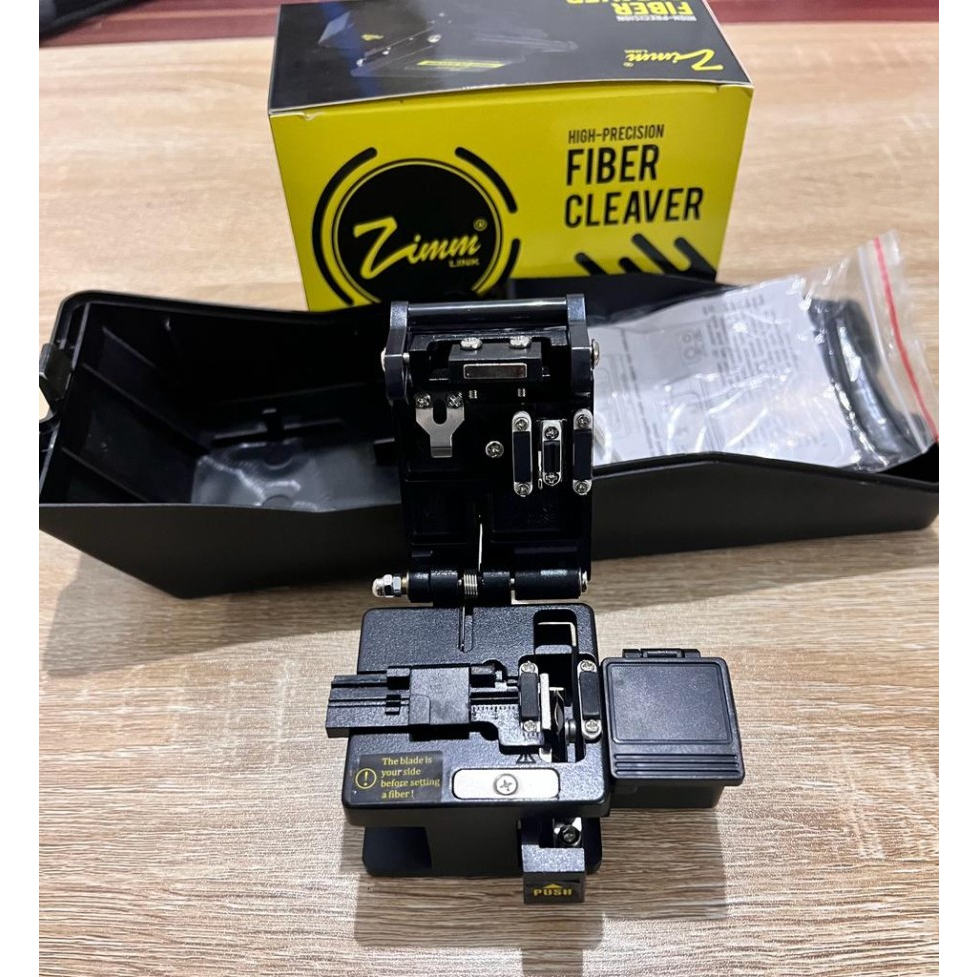

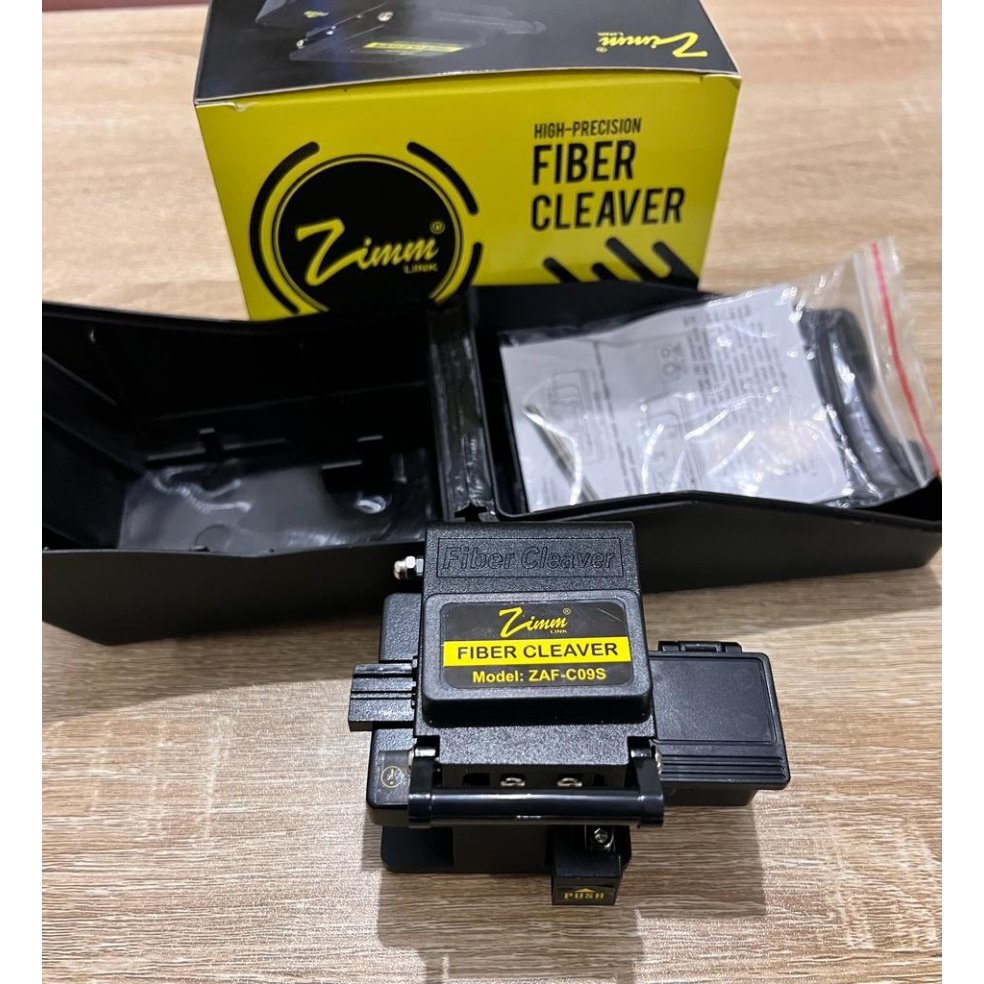

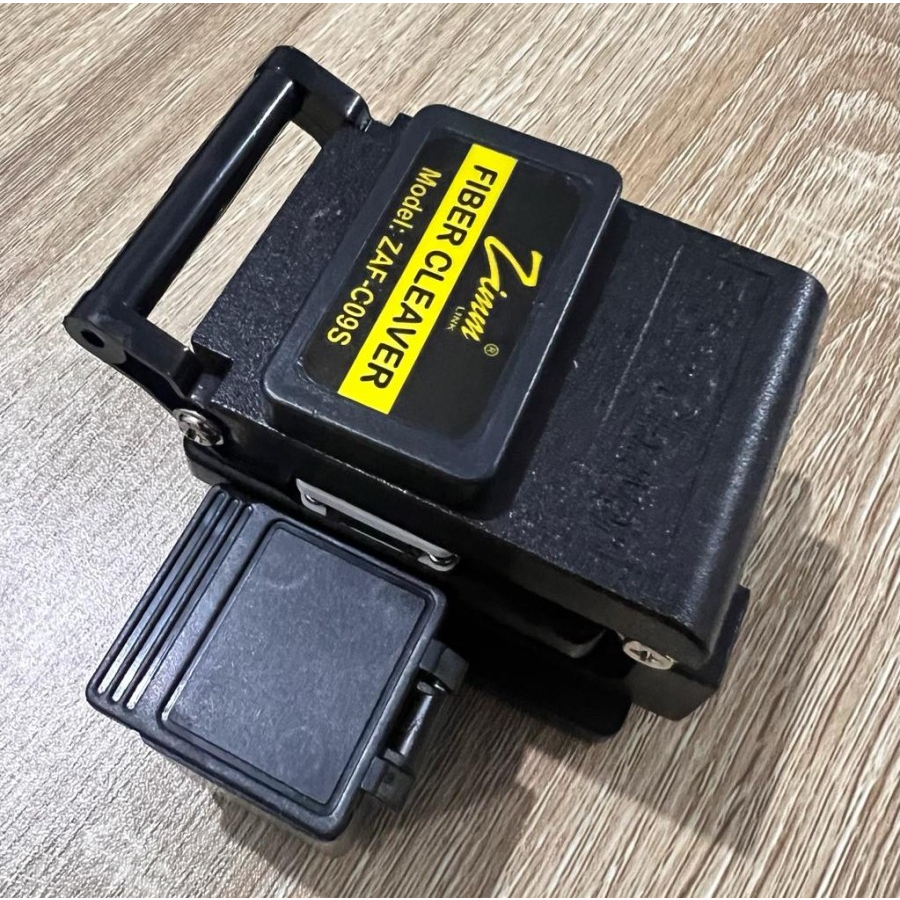

Gambar produk
