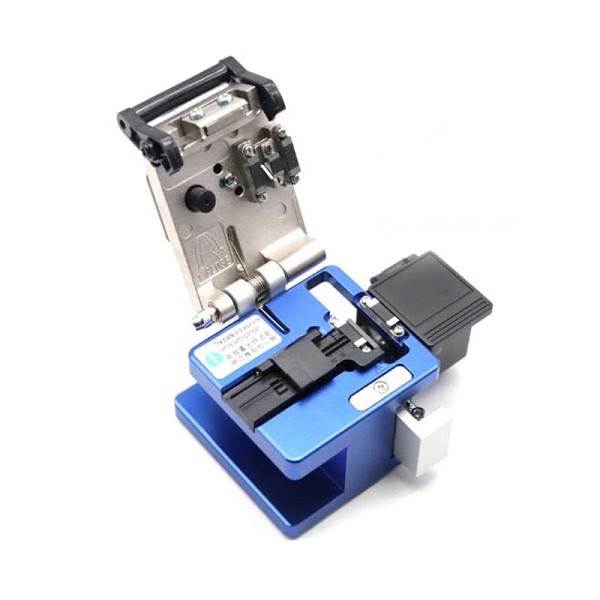

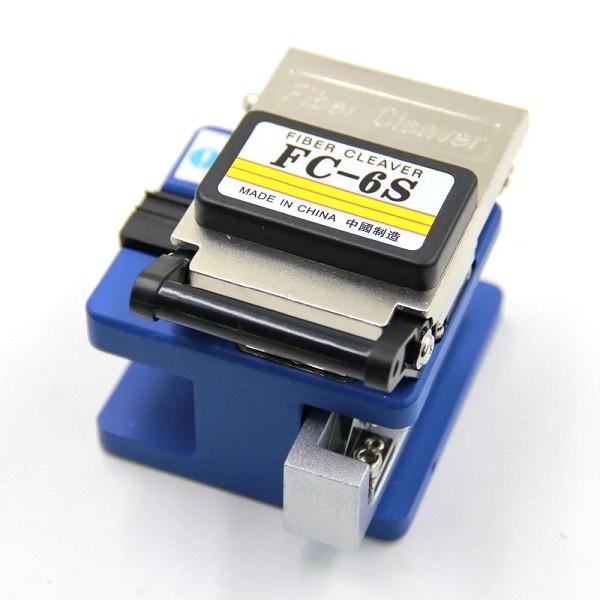

Fiber Cleaver Sumitomo FC-6S

Detail Fiber Cleaver Sumitomo FC-6S

Fiber Cleaver Sumitomo FC-6S
》Decription:
• Fiber Cleaver FC-6S high precision optical fiber cutter for single core fiber in precision cutting.
• The cutting knife is applicable to 250m coated fiber and applicable to 900m coated fiber.

》Features :
• Simple operation.
• Single core fiber for single mode or multimode cutting.
• 12 cutting end face.
• Blade long life: 36.000 cleave (3.000 per blade position)
• Technical specifications: fiber - Fiber diameter : 125um
• Skin diameter: 250~900um.

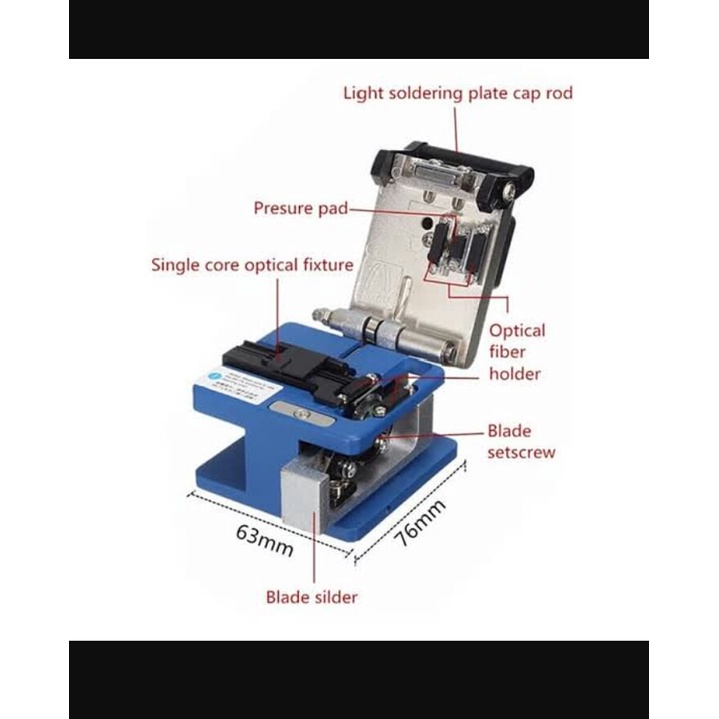

• Dimension : 63mm(W) x 77mm(D) x 63mm(H)

》Specification:
■ Material (Applicable Fiber): Silica Glass
■ Cladding Diameter (Applicable Fiber): 125um
■ Fiber Count (Applicable Fiber): Single
■ Cleave Length Single Fiber: 5~20mm (0.25) / 10~20mm (0.9)
■ Cleave Angle (Typical): 0.5 Degrees with Single Fiber
■ Single-Fiber Adapter: Pre-fitted (AP-FC6M)
■ Field Replaceable Blade: FCP-20BL

》Package Content :
■ 1x Fiber Cleaver FC-6S
■ 1x User Manual
■ 1x Plastic Box
■ Berat : 500gram
