Fiber Cleaver FC - 6S FC-6S Pemotong Serat Kabel FO High Precision Fiber Konektor Fiber Optik

Detail Fiber Cleaver FC - 6S FC-6S Pemotong Serat Kabel FO High Precision Fiber Konektor Fiber Optik

Video perkenalan produk Fiber Cleaver FC - 6S FC-6S Pemotong Serat Kabel FO High Precision Fiber Konektor Fiber Optik. Sumber: Shopee.

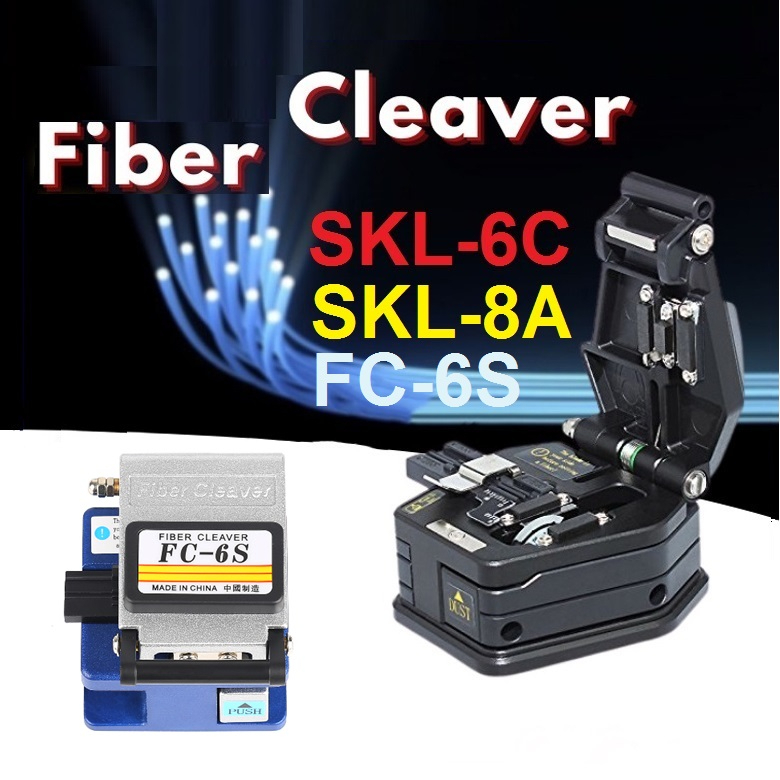

Tersedia dalam 2 variant (Fungsi sama, hanya beda model)
- SKL-6C
- SKL-8A
- FC-6S

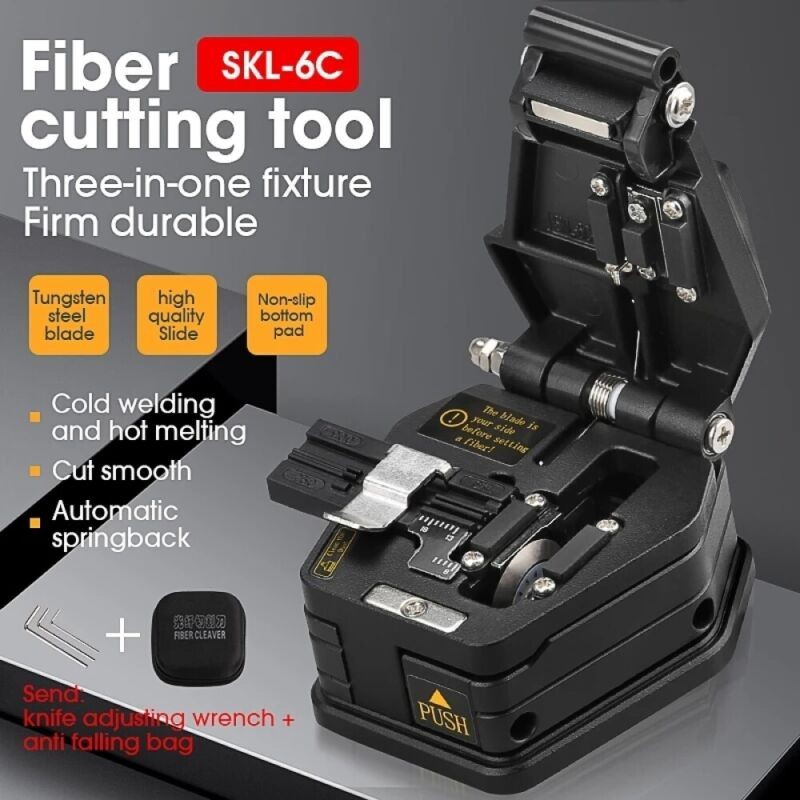

--------------------------- SKL-6C --------------------------
Fiber cleaver SKL-6C kabel pisau pemotong serat optik FTTT alat pisau pemotong High Precision Fiber Cleavers 16 blade permukaan.
Produk yang menggunakan permukaan pisau berkekuatan tinggi 16 poin dan umur yang lebih panjang,
dilengkapi dengan perlengkapan tiga kali dapat berupa garis insisi, kuncir dan serat telanjang,
Slide pisau kembali otomatis, cukup letakkan penutup dan dorong penutup serat untuk menyelesaikan semua pekerjaan pemotongan

SKL-6C High Precision Fiber Cleaver adalah instrumen untuk pemotongan serat presisi tinggi.
SKL-6C High Precision Cleaver diinstal dengan 3 in 1 holder yang berlaku untuk serat fiber 250μm & kabel fiber 900μm, kabel pipih, dan kabel fiber jumper.
Dengan fungsi pisau balik kembali, hanya perlu memasang penutup belakang dan dorongan serat untuk menyelesaikan semua pekerjaan pemotongan.

Specifications:
Model:SKL-6C
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating) 10 - 16mm

(Single Fiber - 0.9mm Coating)
Blade Life Time: 36,000 cleaves (3,000 per blade position)

Package Includes:
1x Fiber Cleaver
3x Hex Screwdriver

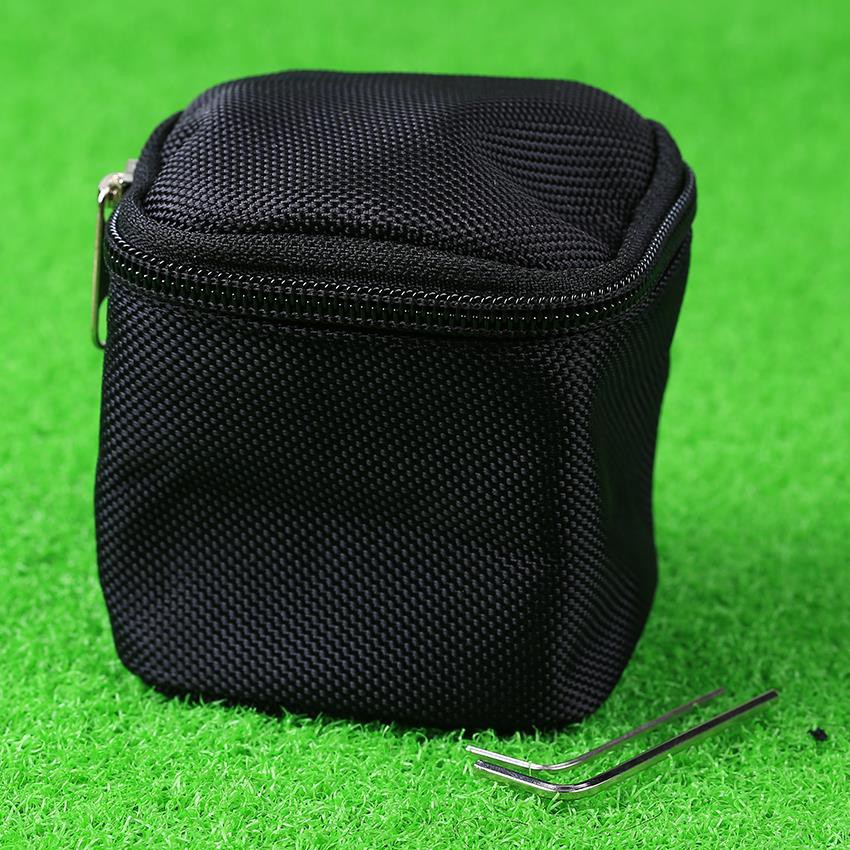

1x Storage Bag
1x box
1x manual

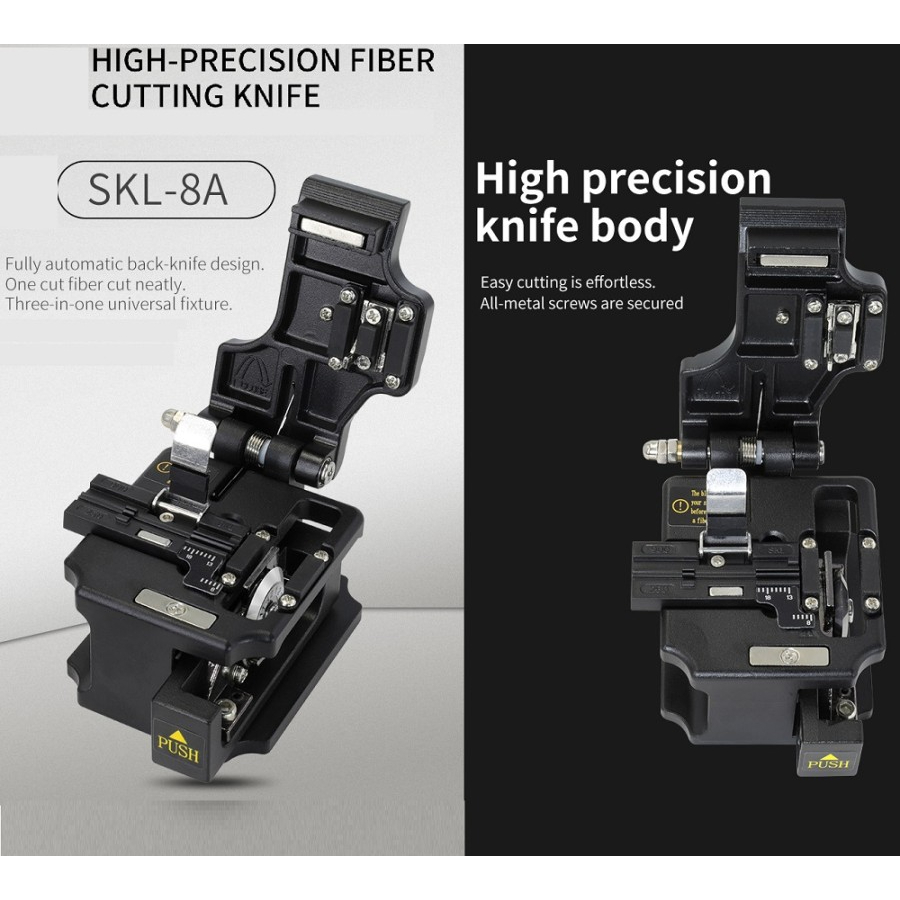

--------------------------- SKL-8A --------------------------
eatures: we ship out at random color
- Provides approximately 36,000 cleaves
- Compact body& light weight
- High Precision Cleaves
- 250um Coated or 900um Buffer fiber
- Singlemode or Multimode Use
- 12 Position Rotatable and Replicable Blade

Specifications:
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating),10 - 16mm (Single Fiber - 0.9mm Coating),Single Core (φ0.25 & 0.9mm) – 12-core Ribbon Fiber – 2.5 Covered Wire
Blade Life Time: 36,000 cleaves (3,000 per blade position)
Cutting Length for Optical Fiber: 18mm
Cleaver Dimensions: 71.3(W) x 67.2(D) x 51(H) mm

Package Includes:
1x Fiber Cleaver
2x Hex Screwdriver
1x Storage Bag
1 x box
1x manual

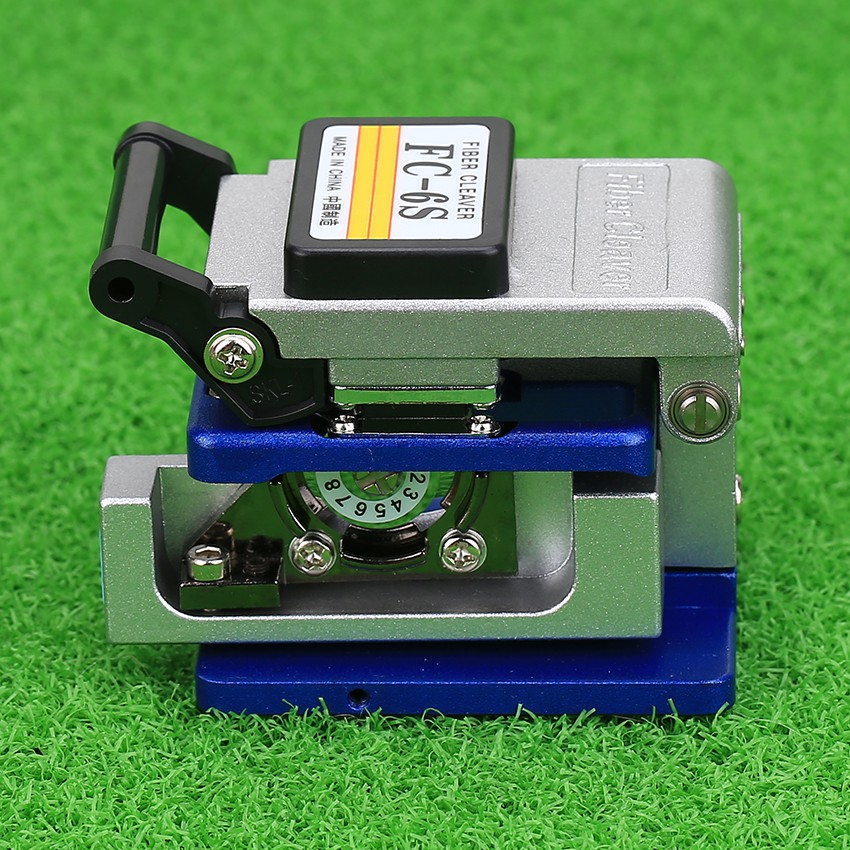

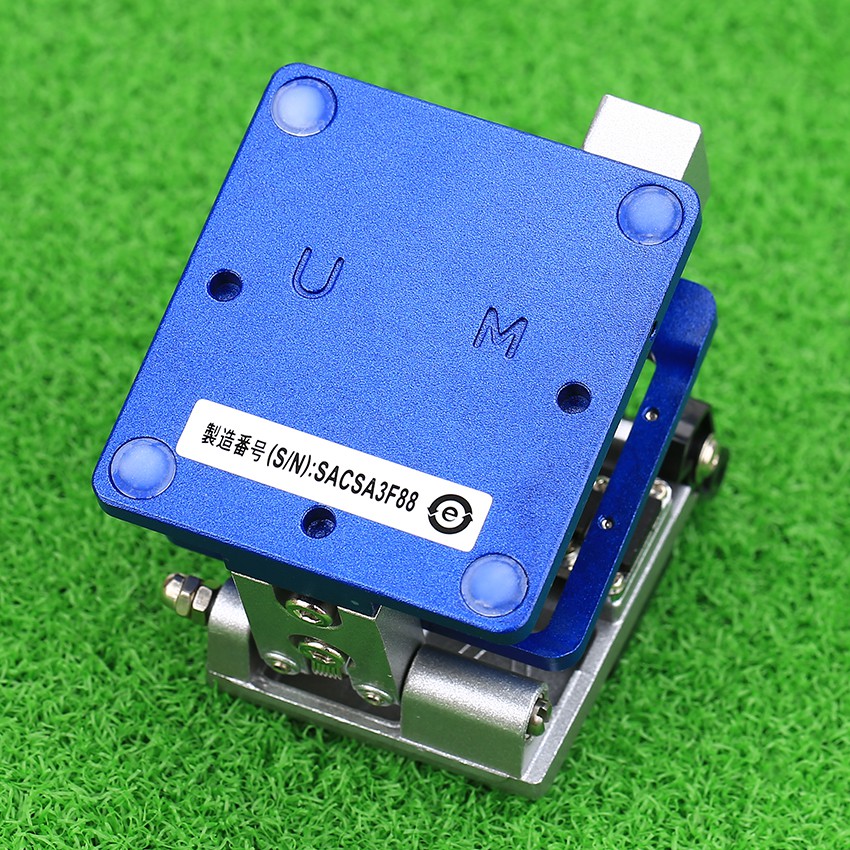

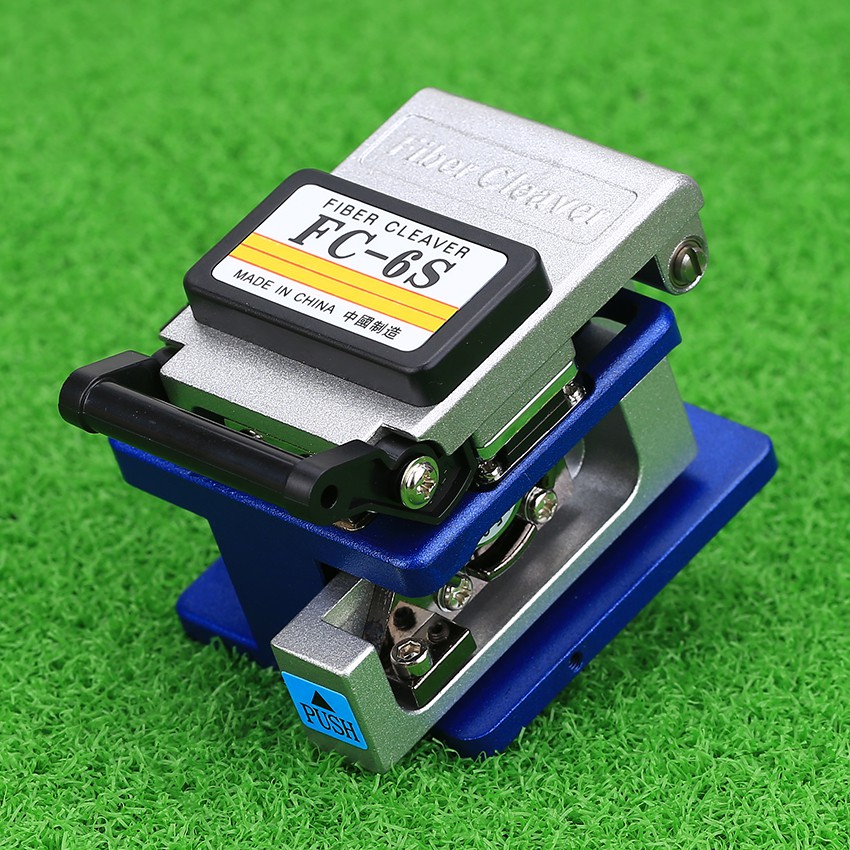

---------------------- FC-6S ---------------------------
This Baitaihem FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers.
It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.

Specifications:

* Provides approximately 36,000 cleaves
* Compact body& light weight
* High Precision Cleaves
* 250um Coated or 900um Buffer fiber
* Singlemode or Multimode Use
* 12 Position Rotatable and Replicable Blade
* Model: FC-6S
* Applicable fibers: Singlemode or Multimode Use
* Fiber Diameter: 125um
* Coating Diameter: 250um - 900um

Gambar produk
