Detail FG-100 DDS 1Hz-500kHz Function Generator Sinyal Frekuensi Generator
Specifications :- Waveforms: sine, rectangle, triangle, positive and negative sawtooth
- Sine wave frequency range: 1 Hz ~ 500 kHz
- Rectangle wave frequency range: 1 Hz ~ 20 kHz
- Triangle wave frequency range: 1 Hz ~ 20 kHz
- Sawtooth wave frequency range: 1 Hz ~ 20 kHz
- Output voltage: 0 V ~ ±10 Vpeak-to-peak
- Output impedance: 50 Ω
- Sine wave distortion: less than 1 % (1 kHz)
- Frequency setting resolution: 1 Hz
- DC offset: ±10 V max.
- Display: LCD1602, 2 x 16 characters, 58 mm x 9.4 mm
- Microcontroller: ATMega48, 8 bit
- Supply voltage: 3.5 Vdc ~ 10 Vdc
- Supply current: 300 mA typical
- Dimensions: 140 mm x 80 mm x 35 mm
- Weight: 184 g

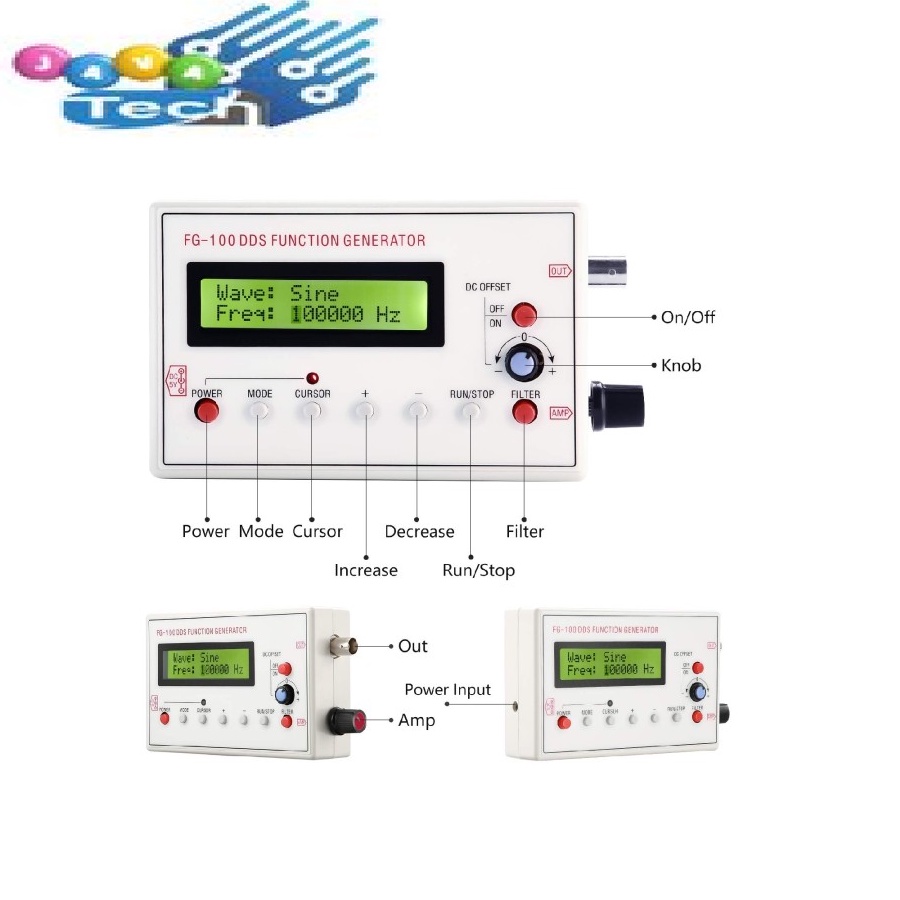

Gambar produk
