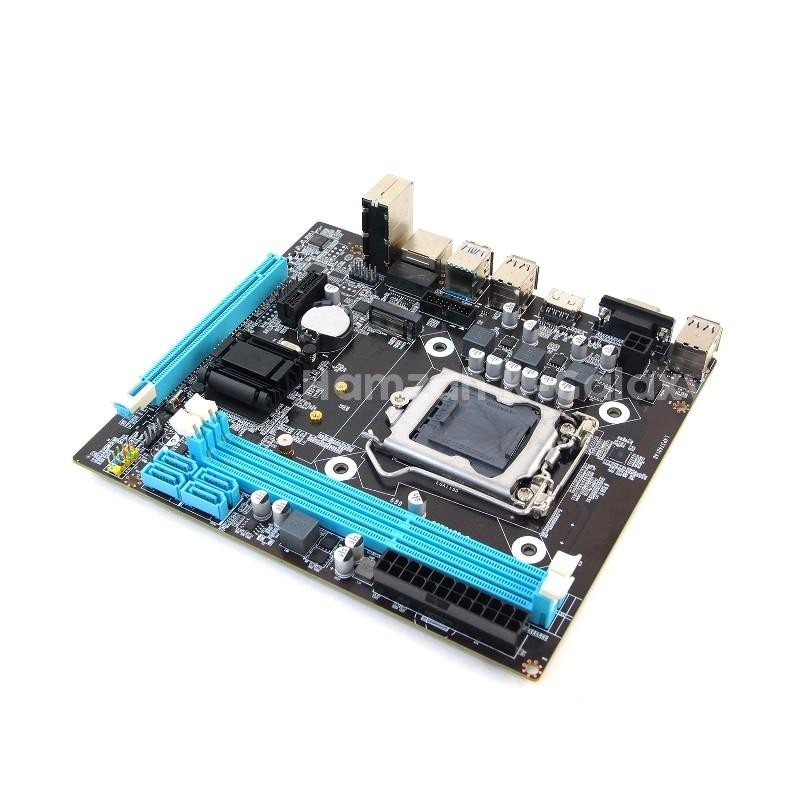

Fast Motherboard Intel H81 LGA 1150 with SSD M2 NVME Port

Detail Fast Motherboard Intel H81 LGA 1150 with SSD M2 NVME Port

Specification :

1. CPU

Support 4rd Gen (Haswell)

2. Chipset

Intel H81 Express Chipset

3. Memory

2*240-pin DDR3 SDRAM Slots
Memory up to 16GB
Supports dual channel DDR3 1066/1333/1600/1866MHz

4. I/O Interface

4 x USB, compatible with USB 2.0
2 x USB, compatible with USB 3.0
1 x VGA port
1 x HDMI port
1 x RJ-45 port
1 x 3-in-1 Audio port (line In/Line Out/Mic In)

5. On Board Interface

1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
2 x USB 2.0 connector, can support 2*USB 2.0
1 x USB 3.0 connector
1 x F_Audio connector
1 x F_Panel connector
1 x Speaker connector
1 x Fan connector
2 x serial SATA/6GB/S connector port
2 x serial SATA/3GB/S connector port
1 x LPC_Debug connector

6.Integrated LAN

With 10/100Mbps LAN onboard

7. Expansion Slot

1 x PCI Express x16 slot
1 x PCI Express x1 slot
1 x NVME M2 connector
