fast connektor SC Upc APC single modem fibe_r optic ftth

Detail fast connektor SC Upc APC single modem fibe_r optic ftth

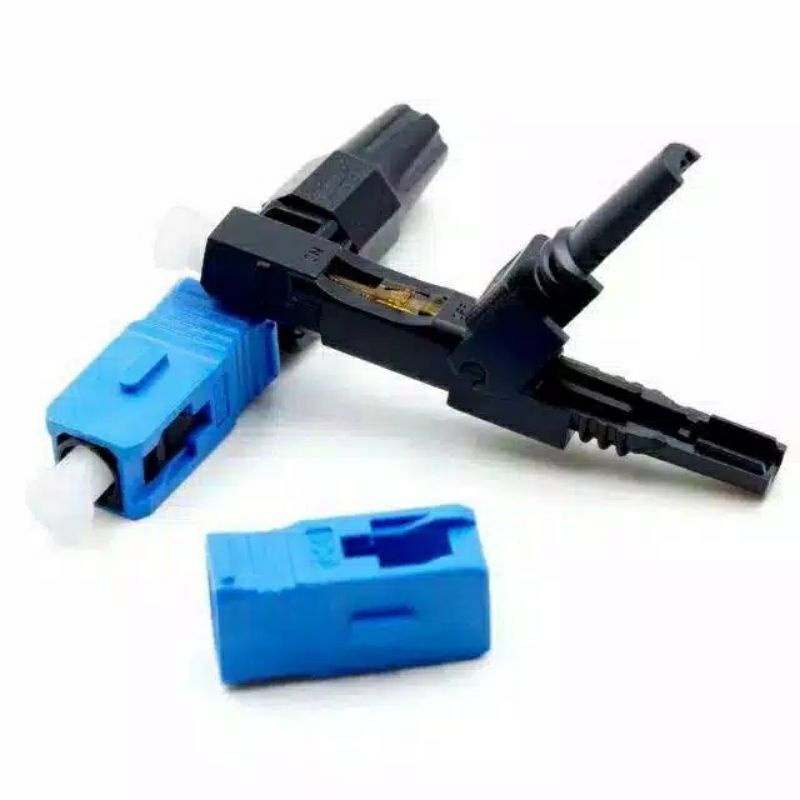

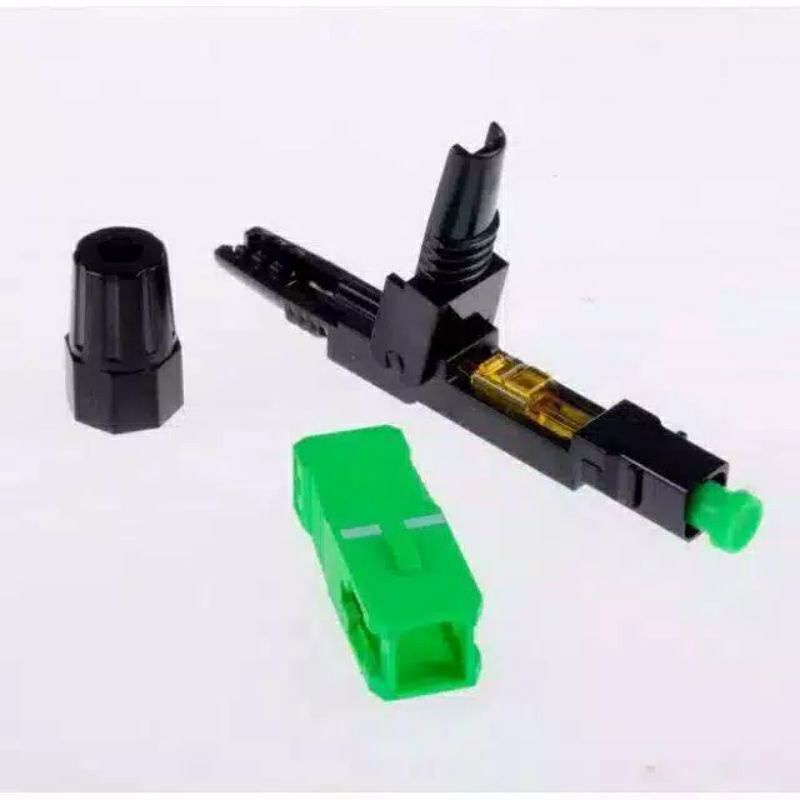

PCS Embedded SC UPC APC Fiber Optic Fast Connector FTTH single-mode fiber optic SC quick connector SC adapter Field Assembly
32966014379

Varian produk:
Compatible : Ericsson,Brocade,Mellanox,Enterasys,Zyxel
Brand Name : OLOEY
Fiber Type : Single Mode
Item Length : 1m
Size : size
Model Number : 1812301747
Connector Type : SC/UPC
Connector Type : SC/UPC
Applicable Cable : 0.9mm, 2.0mm, 3.0mm Cable; 2.0x3.0mm FTTH Drop Cable
Fiber Diameter : 125um
Coating Diameter : 250um
Fiber Mode : single mode
Insertion Loss : 0.2dB (max. 0.5dB)
Return Loss : Over 50dB
Dimension : 53.5(L)*9.0(W)*7.3(H)mm
Service Time : 10 years
Tensile Strength : Over 30N
Temperature Cycling : ILAssembly Repeatability : 5 times
Installation Durability : Over 500 times
Atmospheric Pressure : 60kpa~160kpa
Operating Temperature : -40 to 85 degree Celsius
Storage Temperature : -40 to 85 degree Celsius


1 PCS FTTH SC UPC APC single-mode fiber optic SC UPC quick connector FTTH

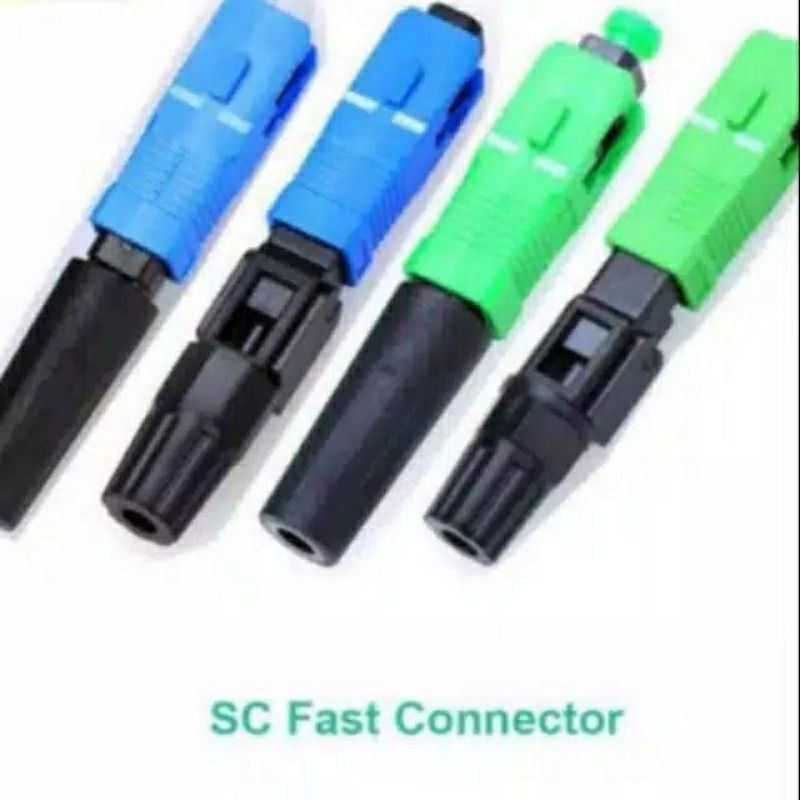

Fiber Optic Fast Connector SC Connector Field Assembly
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.15dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR

Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word
