✈【Fast/COD】✈Modul Power Supply Step Up Charger 150W DC-DC 10-32V Ke 12-35V 6A
Deskripsi singkat
Elektronik > Kelistrikan > Kelistrikan Lainnya > ✈【Fast/COD】✈Modul Power Supply Step Up Charger 150W DC-DC 10-32V Ke 12-35V 6A
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail ✈【Fast/COD】✈Modul Power Supply Step Up Charger 150W DC-DC 10-32V Ke 12-35V 6A
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickWhy choose our store?
» 〖 FREE SHIPPING 〗 RM0.00 for order > IDR232,000 (mix products) from our store.
» 〖 READY STOCK 〗 for all of our products.
» 〖 SAME DAY POST 〗 for all orders made before 5pm.
» 〖 FAST DELIVERY 〗 post from Overseas, normally shipping out 1-2 days.
» 〖 WARRANTY PROGRAM 〗 if you are not satisfy with our product or whatsoever, please do contact us to learn more without hesitate
» Working hour : Mon - Sta @ 09:00 -20:00
»〖 Follow #OlahragaOutdoorElektronik# 〗 You can get IDR2000 discount
Features:
Input voltage: DC 10V-32V.
Output voltage: DC12V-35V(adjustable).
Output current: 10A (MAX).
Input current ：16A (MAX) (more than 10A please strengthen heatsink).
Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency: 94% (when Input 19V 2.5A Output 16V, Reference).
Output ripple: 2% (MAX).
Working temperature: industrial (- 40℃~+85℃) ( environmental temperature, more than 40 degrees, please
reduce power to use, or - enhance cooling).
Full-Load temperature: 45℃.
No-load current: 25mA typical.
Voltage regulation: ± 0.5%.
Load regulation: ± 0.5%.
Dynamic response speed: 200uS 5%.
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Package Include:

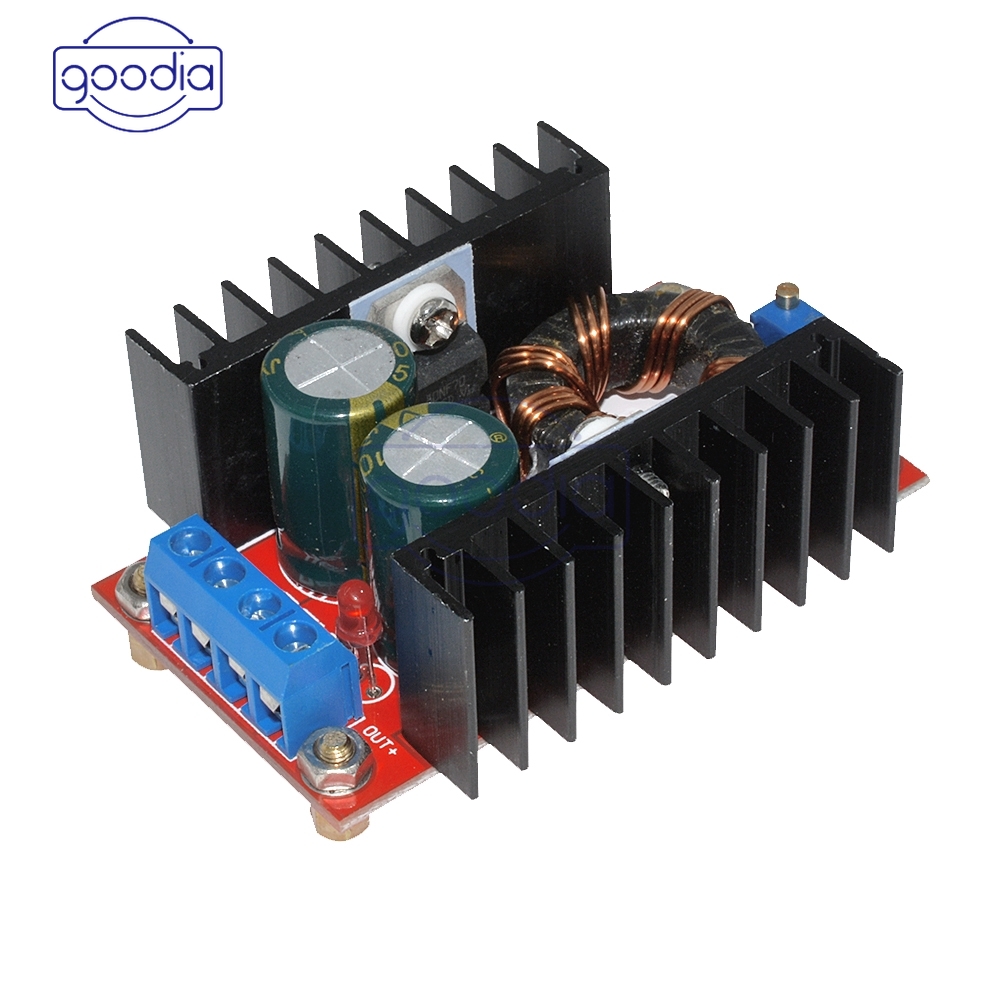

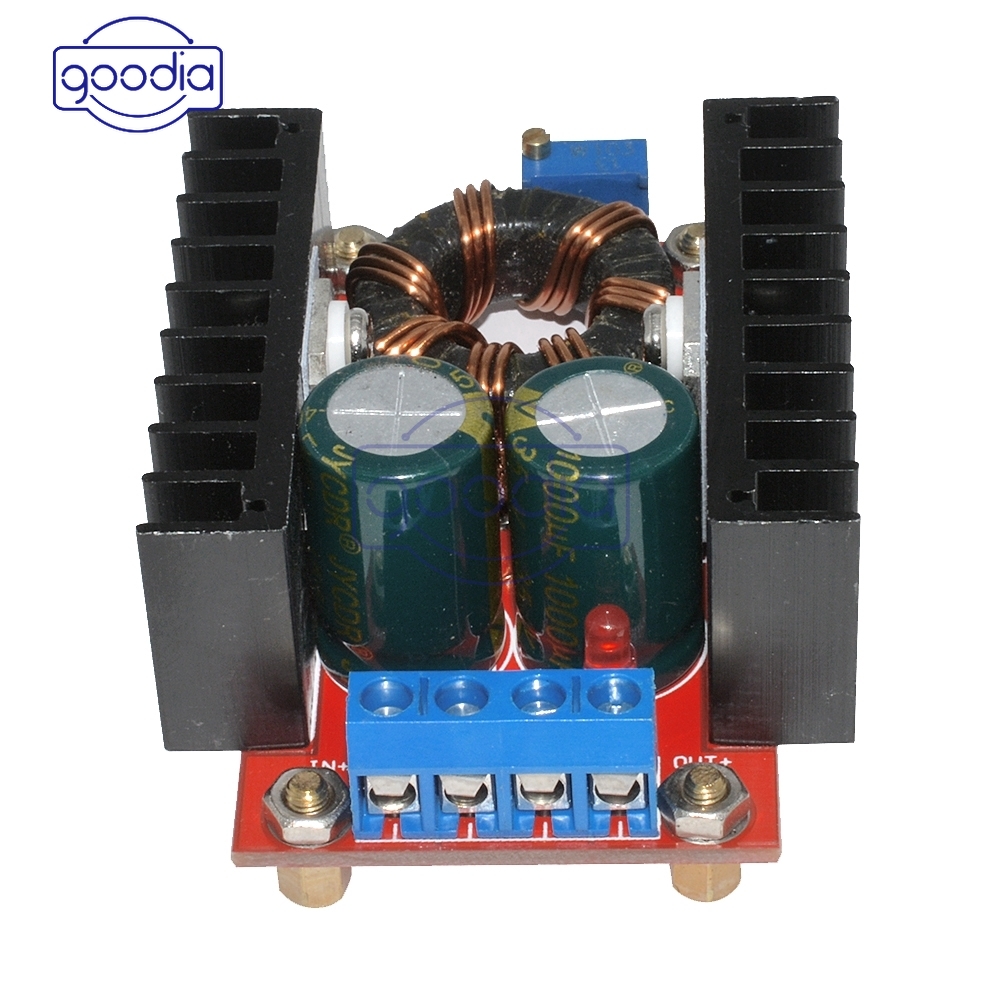

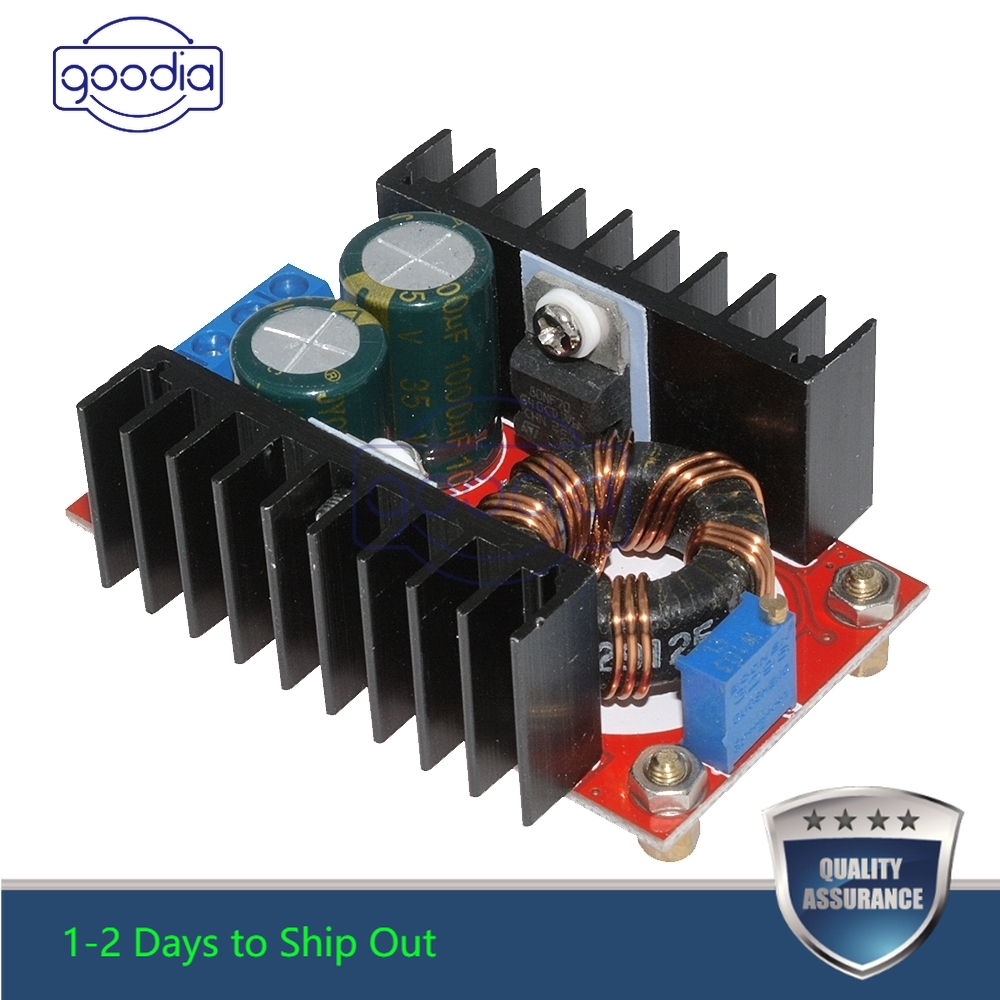

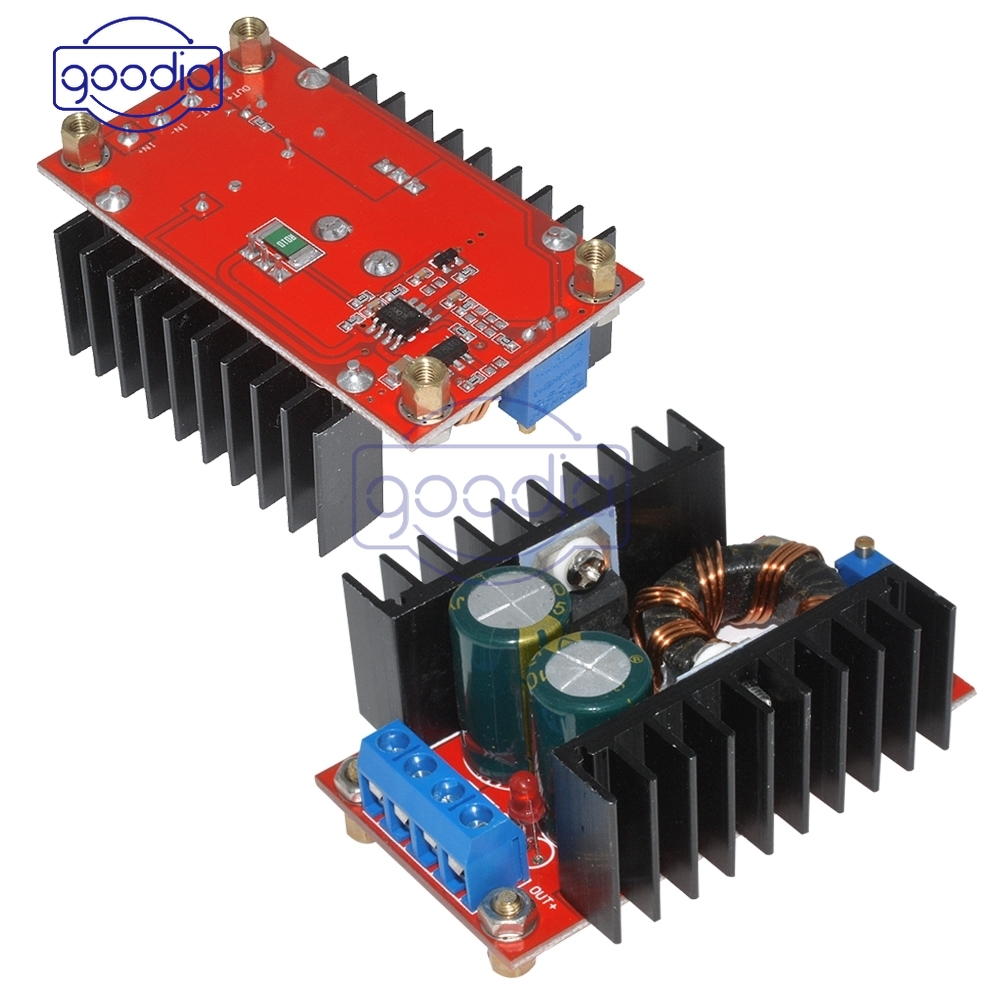

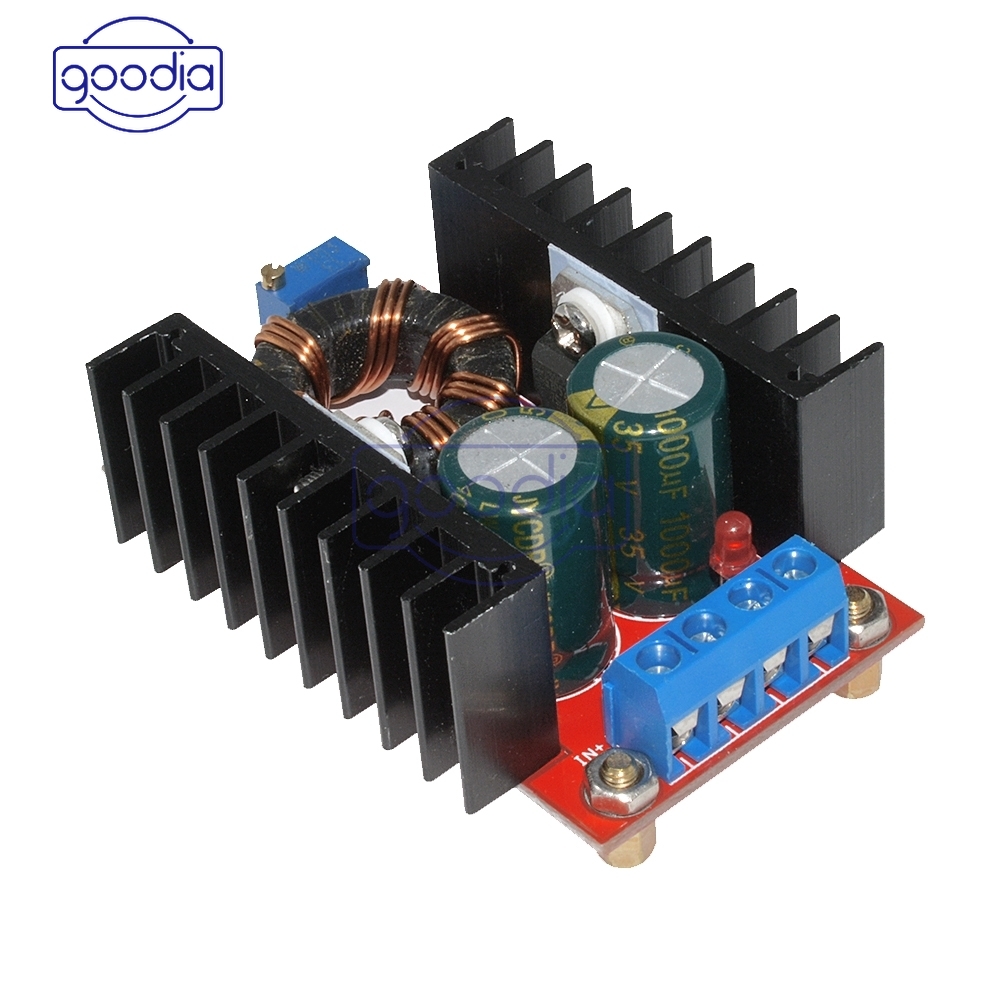

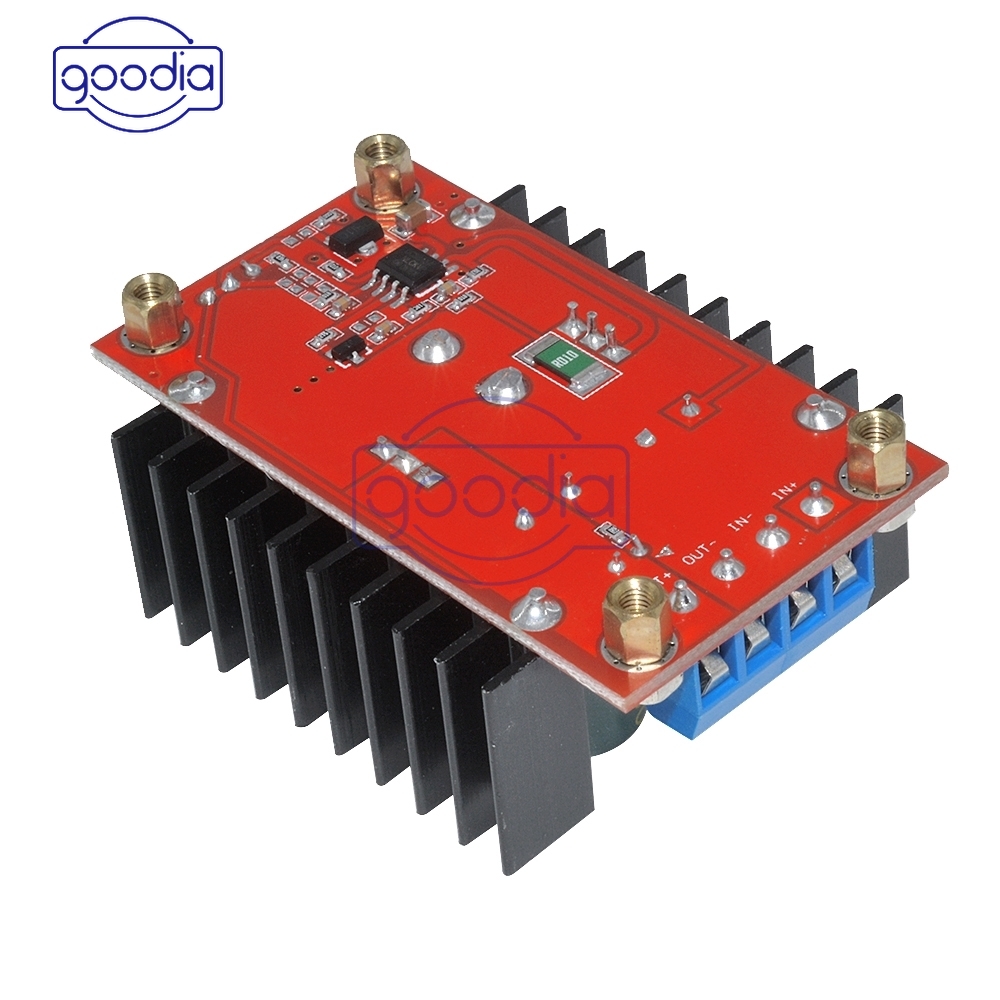

1 x 150W DC-DC Boost Converter 10-32V to 12-35V Step Up Power Supply Module
#DIYMORE #150W #DC-DC #Boost #Converter #Step #Up #Charger #Power #Module
Delivery Info :
» All items are dispatched same day from Monday - Saturday (except Sunday & public holiday).
» Our order cut off time is 5pm, any order after 5pm will dispatch the following day.
» Please make sure that the address you provided is accurate, we DO NOT responsible for any mistakes that did by the customer.
» If you do not receive your goods by the time it mentioned, please do contact or email without hesitation.
【After sales policy】 We will provide a free replacement or repair service in the following cases:
1. We make logistics mistakes
2.We send the wrong product
3.Product have quality problems which is not damaged by human factor within warranty period, the warranty period will depends on specific product warranty
4.You receive a fake one
»Still have questions? ….Let's CHAT NOW!
Gambar produk
