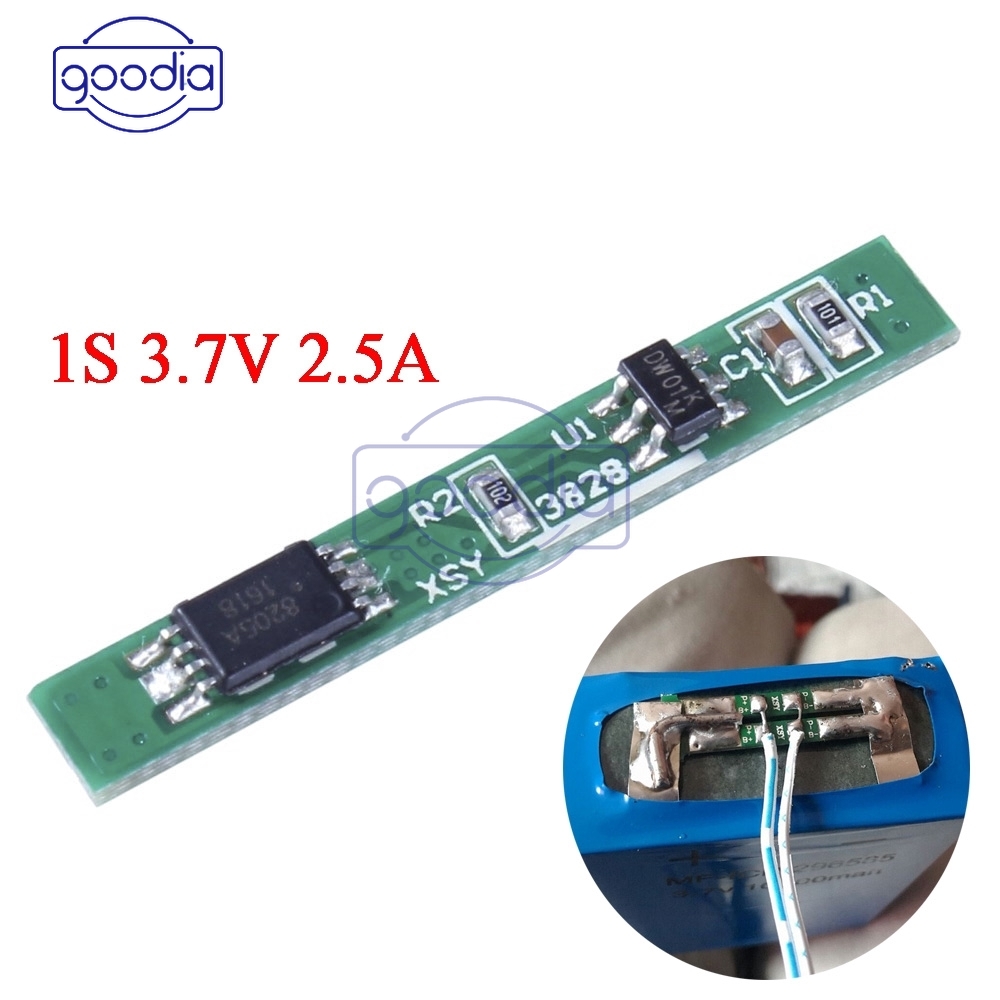

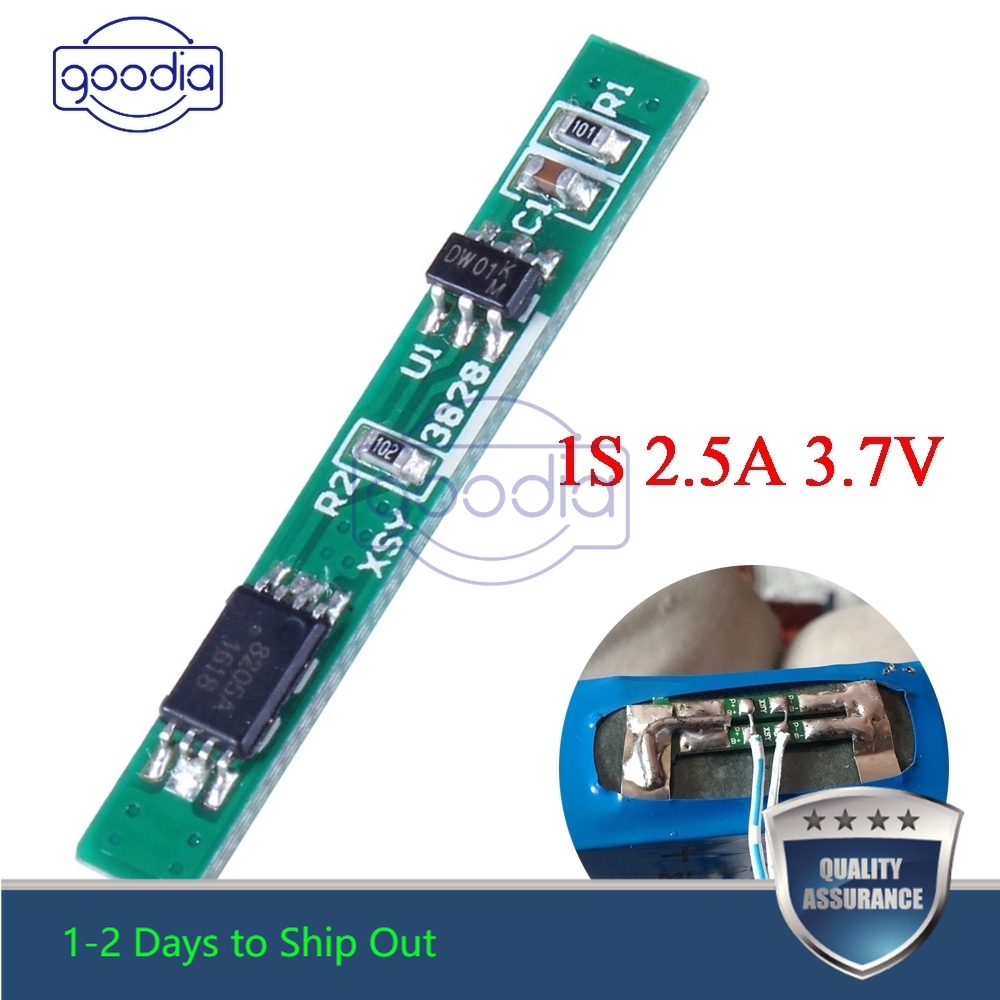

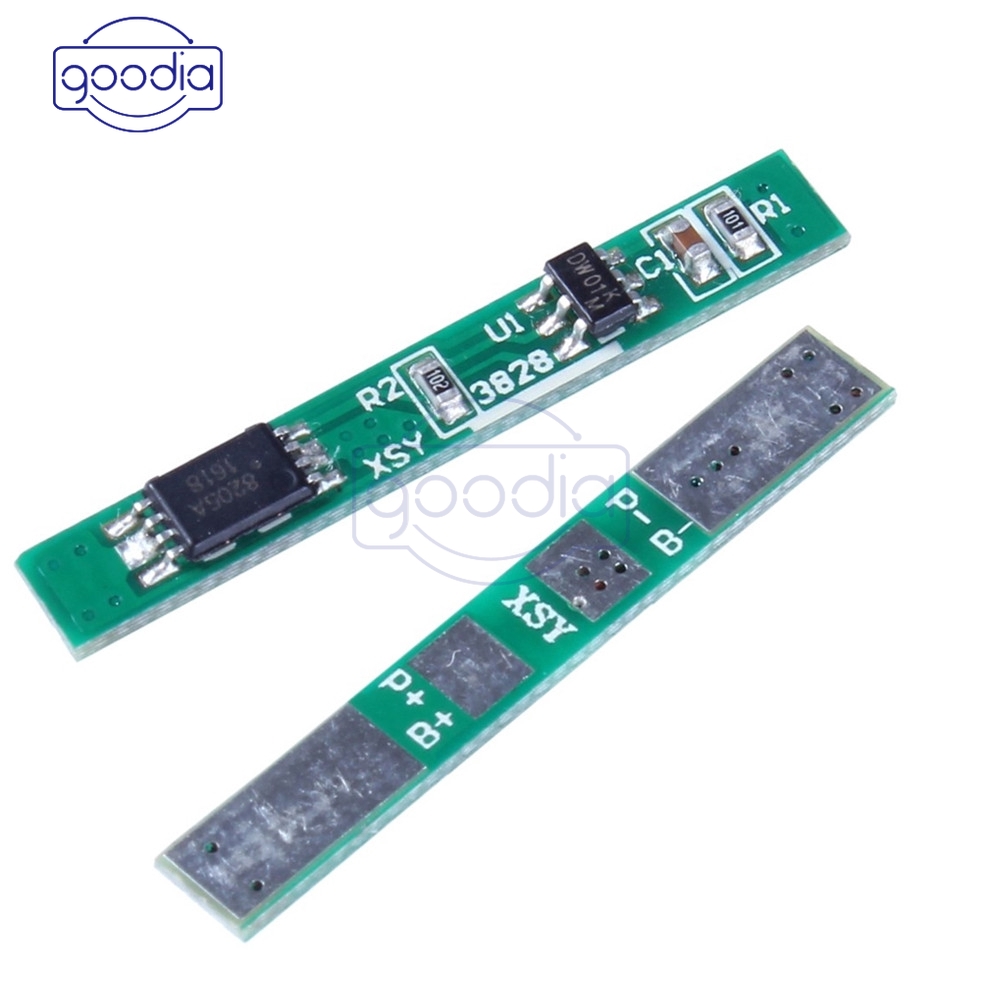

Detail ✈【Fast/COD】✈Modul Board Pelindung Baterai Lithium Polymer BMS pcm 1S 3.7V 2.5A
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickWhy choose our store?
» 〖 FREE SHIPPING 〗 RM0.00 for order > IDR232,000 (mix products) from our store.
» 〖 READY STOCK 〗 for all of our products.
» 〖 SAME DAY POST 〗 for all orders made before 5pm.
» 〖 FAST DELIVERY 〗 post from Overseas, normally shipping out 1-2 days.
» 〖 WARRANTY PROGRAM 〗 if you are not satisfy with our product or whatsoever, please do contact us to learn more without hesitate
» Working hour : Mon - Sta @ 09:00 -20:00
»〖 Follow #OlahragaOutdoorElektronik# 〗 You can get IDR2000 discount
Description:
1. Charing Voltage: DC 4.2-5 V DC / CV
2. Single Battery Current Consumption: <= 6uA Continuous Current 2.7A Current
3. Overload Rated Voltage: 4.2 V +/- 0.025 V
4. Delay Delay Overload: 150-500 MS
5. Overload Reset Voltage: 4.0 V +/- 0.025 V
6. Overdischarging Detection Voltage: 2.75 V +/- 0.1 V
7. Overdischarging Detection Delay: 50-150 ms
8. Overdischarge Reset Voltage: 2.9 V +/- 0.10 V
9. Overcurrent Detection Voltage: 150 +/- 30mv
10. Current Overcurrent Current: 4.5 +/- 0.5A
11. Overcurrent Detection Delay Time: 5 ms-15 ms
12. Overcurrent Restore Type: Automatic Restore
Circuit 13. Short Detection Status: External Short Circuit
Circuit 14. Short Time Delay Detection: <= 50us
15. Short Circuit Restore State: Automatic Restore
16. Internal Resistance: MOSPET <= 40 m ohms
17. Operating Temperature Range: -40- + 50 Degrees Celsius
Storage Temperature: -40- + 90 Degrees Celsius

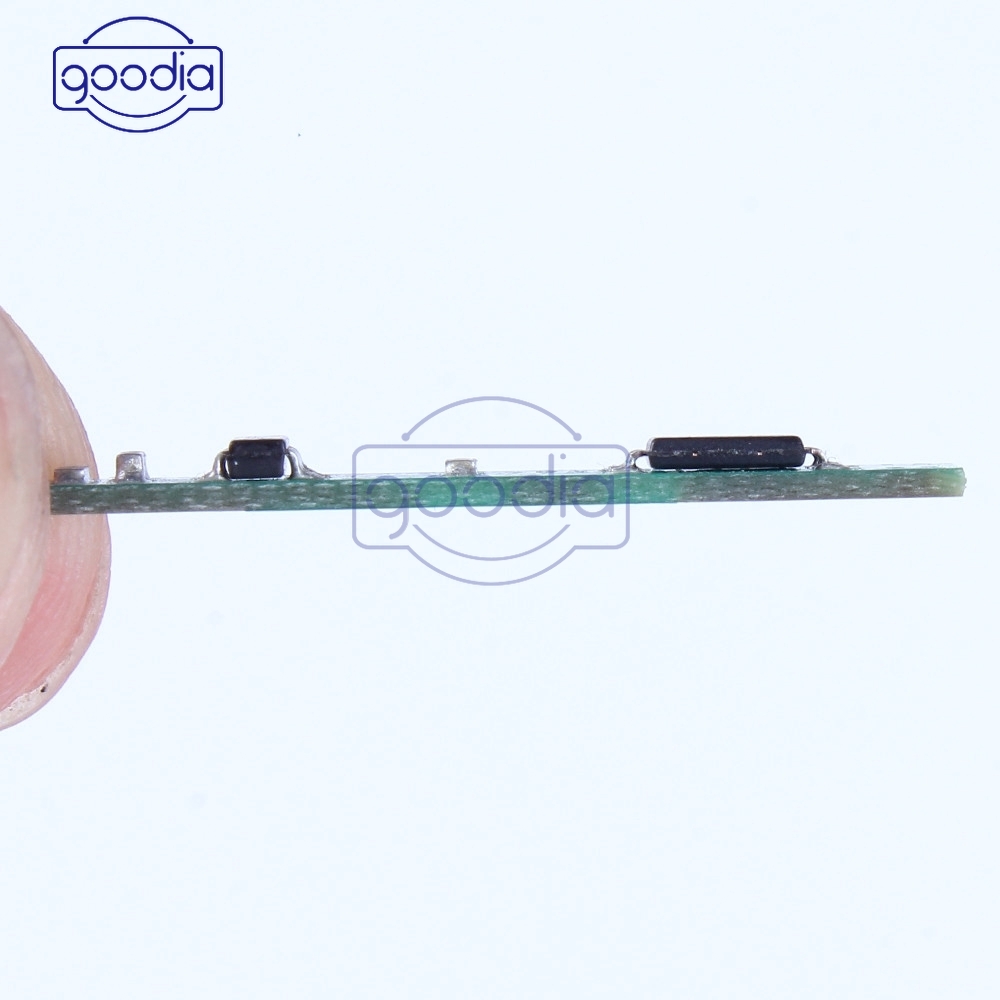

19. Size: 28 * 3.8 * 1.2mm
Features:
1. Connect Teminal Battery Charger Adapt High-Voltage Instrument
2. Internal 3 Phases detectiton overcurrent circuit (overcurrent 1, overcurrent 2, short circuit of the load)
3. MOS tube that can control charge and discharge of the battery
4. Wide Operating Temperature Range
5. Low Power Consumption

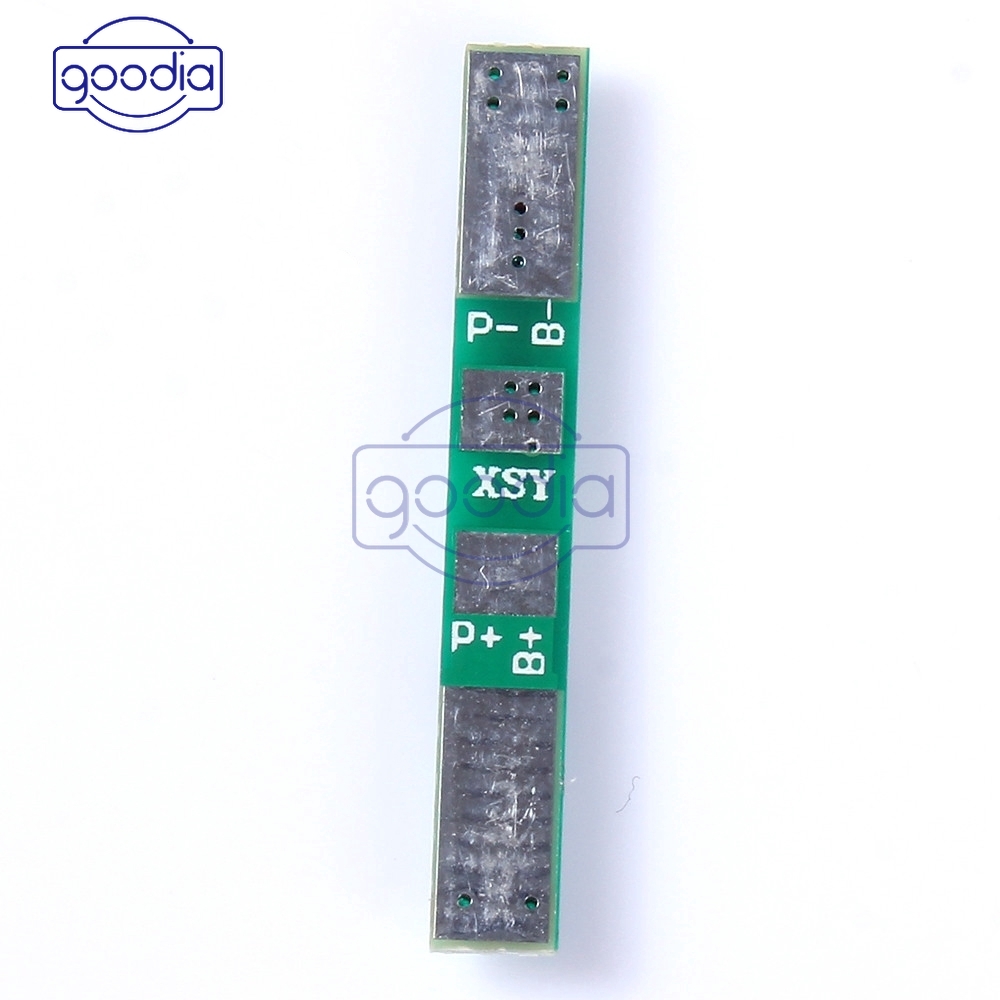

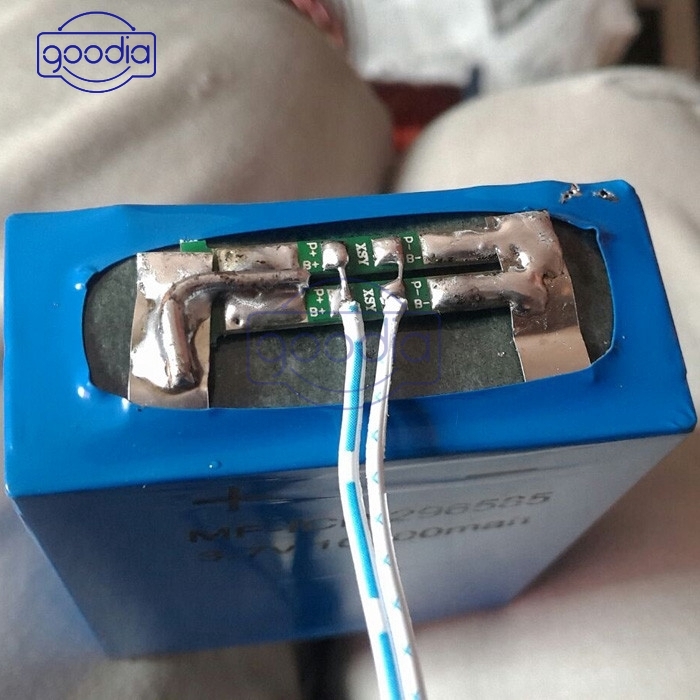

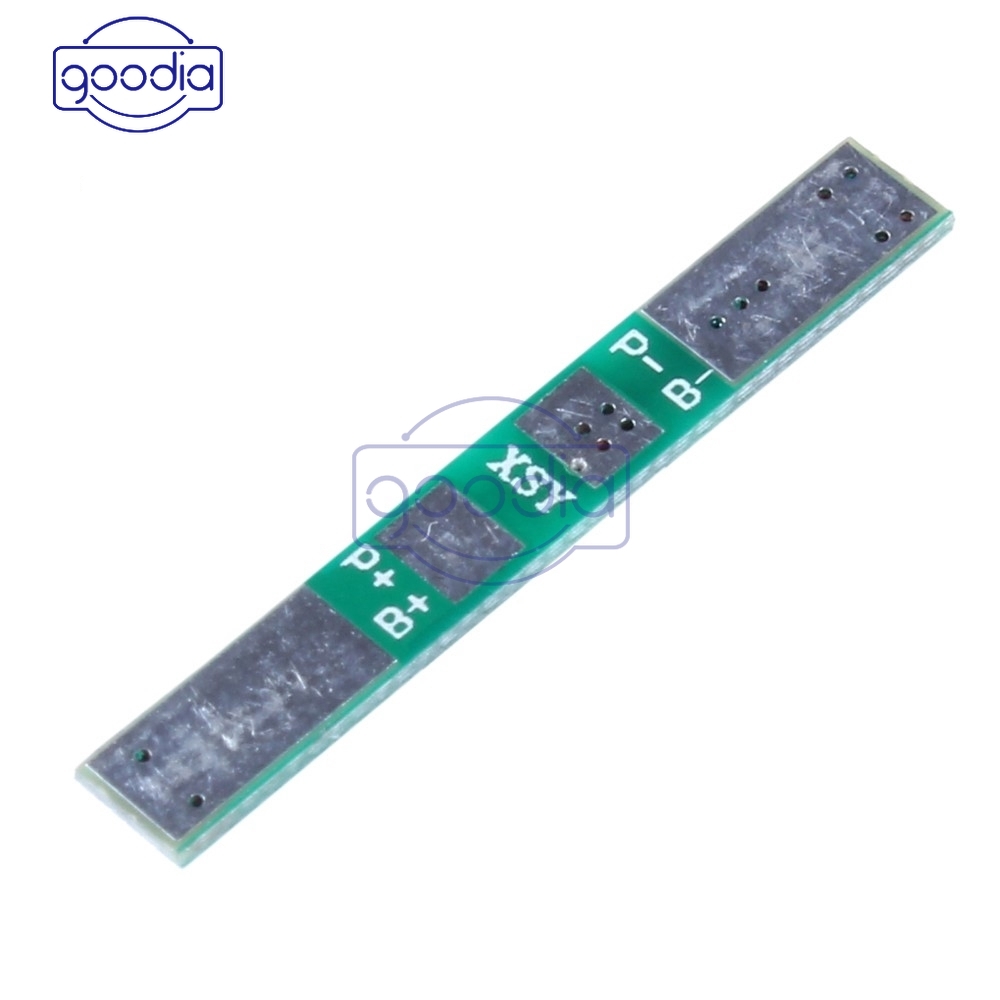

Welding Point Introduction:
1. B +: Connect with positive power
2. B-: Connect with negative power
3. P +: connect with positive charge / recharge (common port charging / discharge port used)
4. P-: connect with negative charge / discharge port (common port charging / discharge port used)
Package Included:
1PC*1S 3.7V 2.5A Lithium Batterry Protection Board Polymer BMS PCM PCB Li-ion Module
#DIYMORE #Lithium #Batterry #Protection #Board #Polymer #BMS #PCM #PCB #Li-ion #Module
