(Fast/Cod) Dc-Dc 5a Xl4015 Modul Konverter Step Down Buck Untuk Charger Baterai Lithium Dengan Lampu Led

Detail (Fast/Cod) Dc-Dc 5a Xl4015 Modul Konverter Step Down Buck Untuk Charger Baterai Lithium Dengan Lampu Led

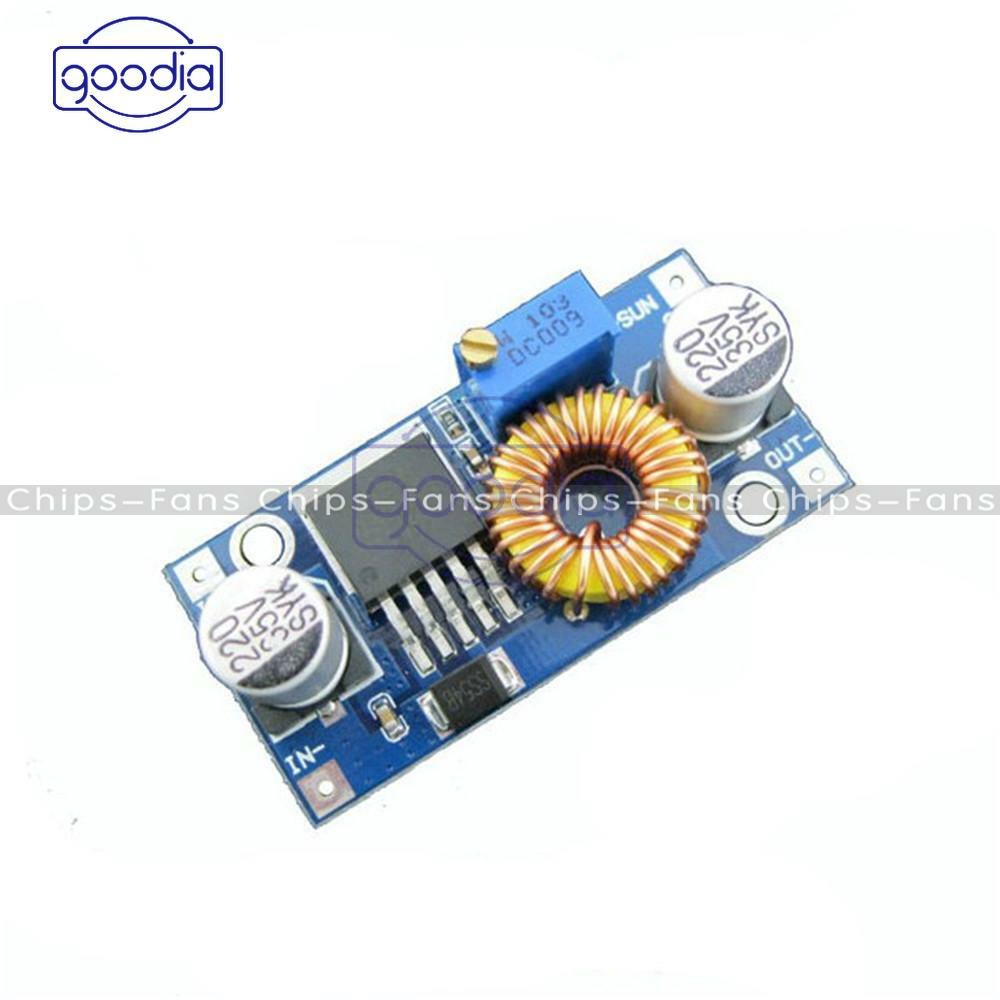

Item 1
The DC-DC module based on LM2596 advocate current to 3.0A, but only to 1.8A.However, being introduced module adds a heatsink, using high-power devices.
Module highlights: 5A high power、high efficiency and low ripple with power indicator !!!
Input voltage range：4～38VDC(Note:input voltage not exceeding 38V)
Output voltage range：1.25-36VDC adjustable
Output current: 0-5A, recommended for use in 4.5A.
Output power: 75W
Working temperature: -40~+85 degrees
Operating frequency: 180KHz
Efficiency:96%（max)
Short circuit protection: yes(limit current 8A).
Over temperature protection
Input reverse polarity protection: None (if required, high current diode in series with the input).
L x W x H = 54 * 23 * 18mm

Item 2
Performance parameters:
1、Input voltage range：4～38VDC(Note:input voltage not exceeding 38V)
2、Output voltage range：1.25-36VDC adjustable
3、Output current: 0-5A
4、Output power: 75W
5、voltmeter range: 4 to 40V, error ±0.1V
6、Operating frequency: 180KHz
7、High efficiency up to 96%
8、Built in thermal shutdown function
9、Built in current limit function
10、Built in output short protection function
11、Input reverse polarity protection: None (if required, high current diode in series with the input).
12、L x W x H =6.6*3.9*1.8CM
Application:(Item1 & Item2)
The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, 24V Vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V etc.

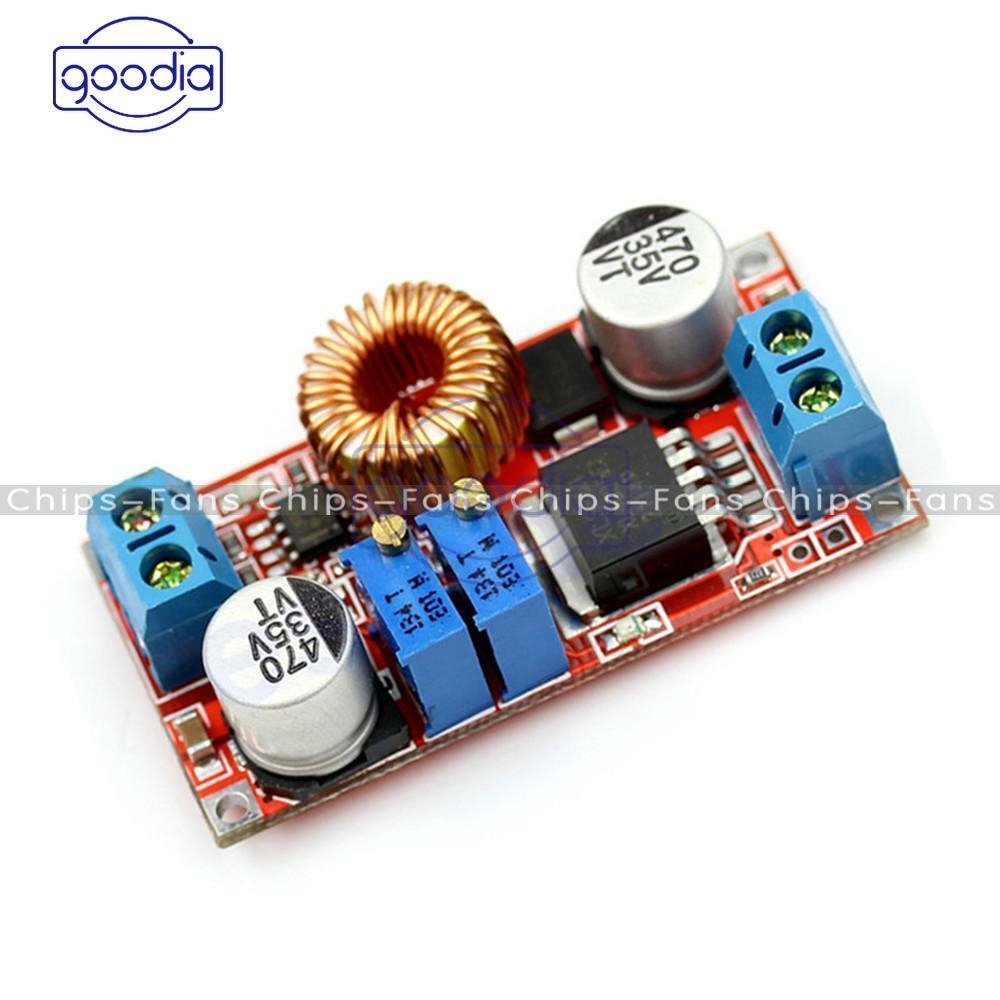

Item 3
Size: 51 * 26.3 * 14 (L * W * H) (mm)
Operating Temperature: -40 ℃ to +85 ℃
Voltage Regulation: ± 2.5%
Load Regulation: ± 0.5%
Output ripple: 50mV (max) 20M bandwidth
Switching frequency: 300KHz
Conversion efficiency: 95% (the highest)
Output current: adjustable maximum 5A
Output voltage: 0.8V-30V
Input voltage: 5V-32V
Rectification: non-synchronous rectification
Module Properties: non-isolated constant current and voltage module.
Advantage:
CC CV
Low ripple
When the module charges a battery, it first use constant current to protect the battery. check the curse above.

Item 4
1、Input voltage range:6～38VDC(Note:input voltage not exceeding 38V)
2、Output voltage range:1.25-36VDC adjustable
3、Output current: 0-5A
4、Output power: 75W
5、High efficiency up to 96%
6、Built in thermal shutdown function
7、Built in current limit function
8、Built in output short protection function
9、Input reverse polarity protection: None (if required, high current diode in series with the input).
10、L x W x H =61.7*26.2*15mm

Item 5
DC-DC adjustable step-down power Supply module ,5A Large current
Areas of application:
DIY mobile power supply, car power, communications equipment power supply, etc.
input voltage:5V-32V
output voltage:0.8V-24V
output current: peak 5A (more than 3.5A work need to strengthen The cooling)
Conversion efficiency:90%
size:43*21*14 mm(L*W*H)

Package: As you choose
