Detail ✈【Fast/COD】✈ DC-DC 12-24V To 5V 3A Adjustable Converter Buck Step Down Power Module
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickWhy choose our store?
» 〖 FREE SHIPPING 〗 RM0.00 for order > IDR232,000 (mix products) from our store.
» 〖 READY STOCK 〗 for all of our products.
» 〖 SAME DAY POST 〗 for all orders made before 5pm.
» 〖 FAST DELIVERY 〗 post from Overseas, normally shipping out 1-2 days.
» 〖 WARRANTY PROGRAM 〗 if you are not satisfy with our product or whatsoever, please do contact us to learn more without hesitate
» Working hour : Mon - Sta @ 09:00 -20:00
»〖 Follow #OlahragaOutdoorElektronik# 〗 You can get IDR2000 discount
Product Introduction:
1.Input Voltage:DC 4.5-24V

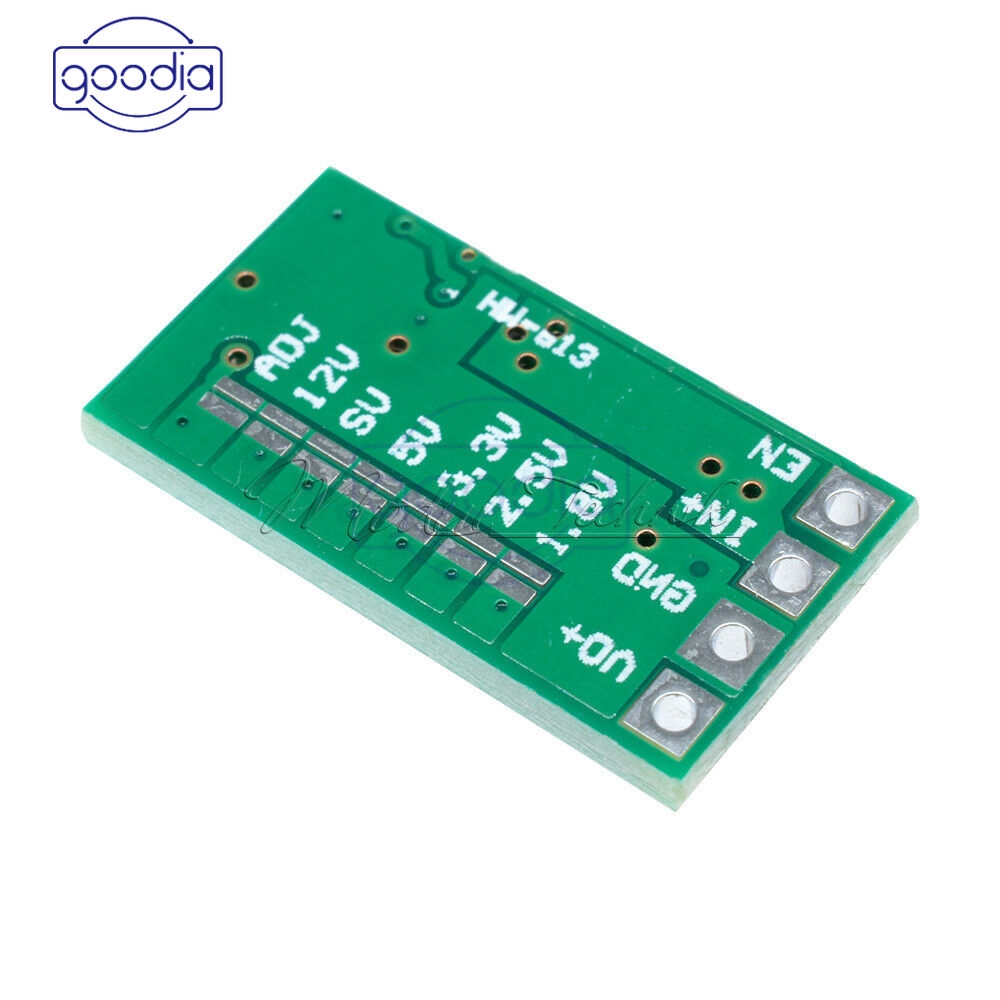

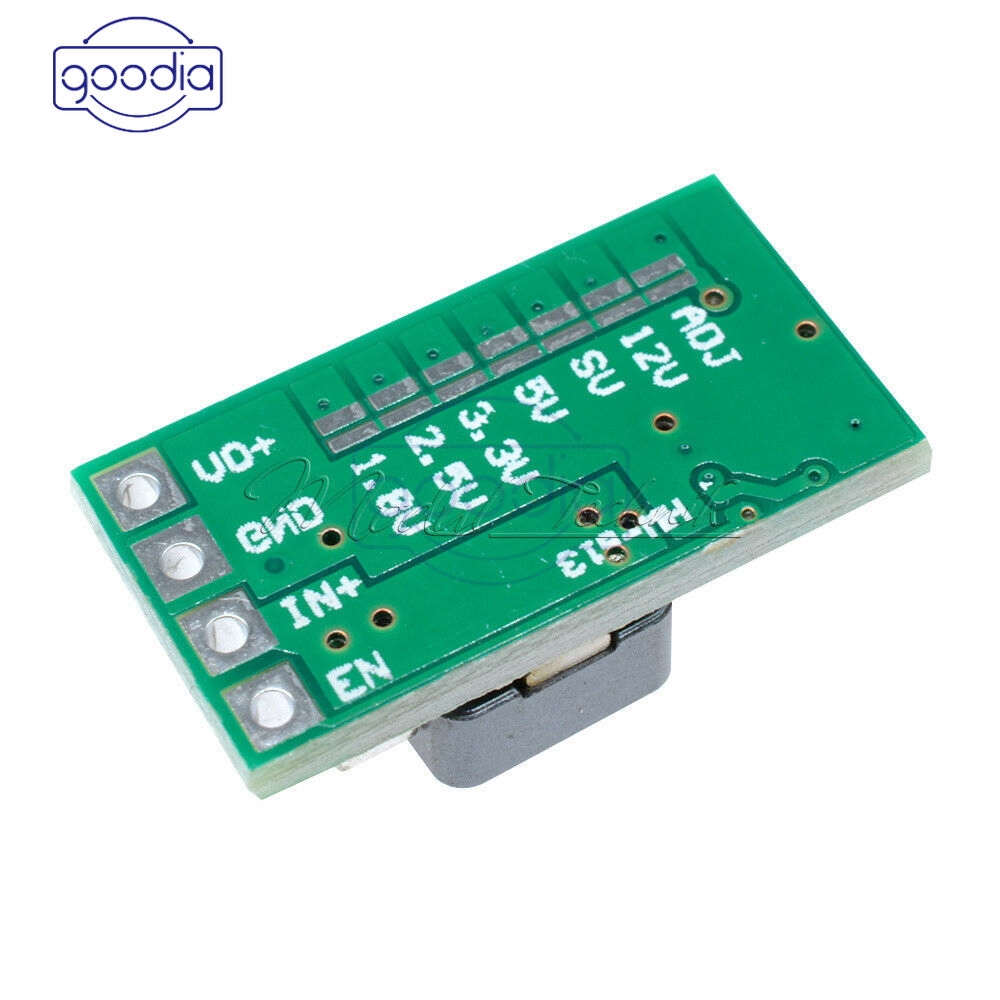

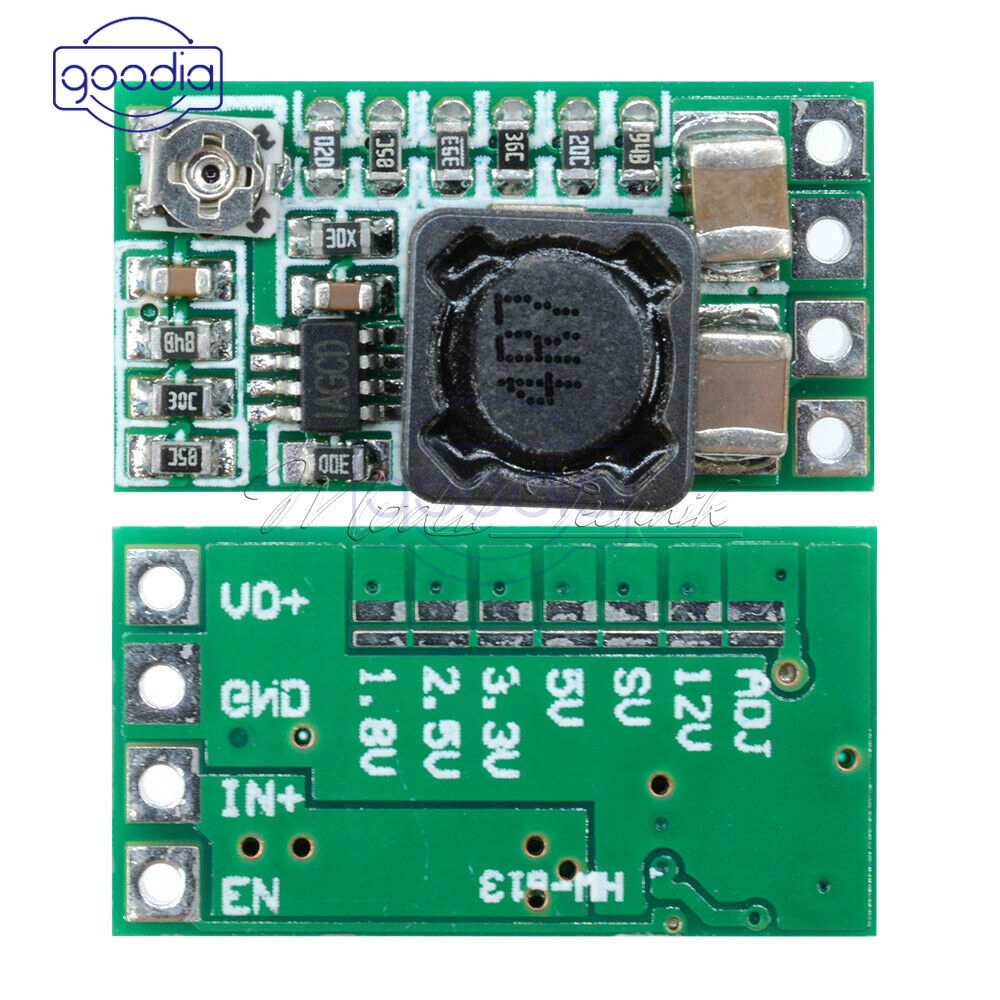

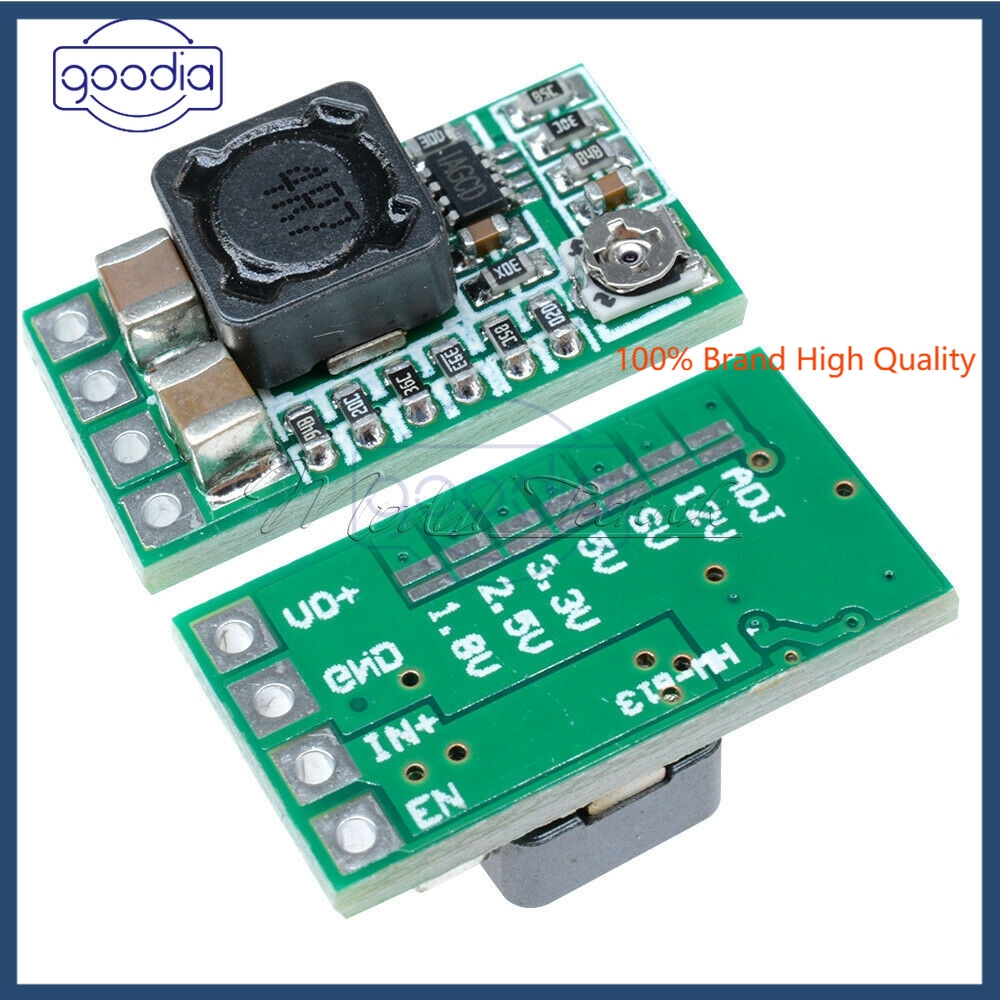

2.Output Voltage:integration adjustable and fixed output,back side can choose fiexd output voltage
3.Adjustable Range:0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
4.Output Current:3A (max),actual testing input 12V output 1.5A
5.Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)
6.Switch Frequency:500KHz
7.Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
8.Operating Voltage:-40 Celsius-85 Celsius
9.Output Overvoltage Protection:no
10.Static Current:0.85MA
11.Load Adjust Rate:±1%
12.Voltage Adjust Rate:±0.5%
13.Dynamic Response Speed:5% 200uS
14.Output Short Circuit Protection:yes
15.Input Transposition Protection:no
16.Enable Control:yes
17.Connecting Type:soldering
18.Input Way:soldering
19.Output Way:soldering/pin
20.Soldering Hole Space:2.54mm
Package Included:
1PCS*Mini DC-DC 12-24V To 5V 3A Adjustable Step Down Power Module Buck Converter
